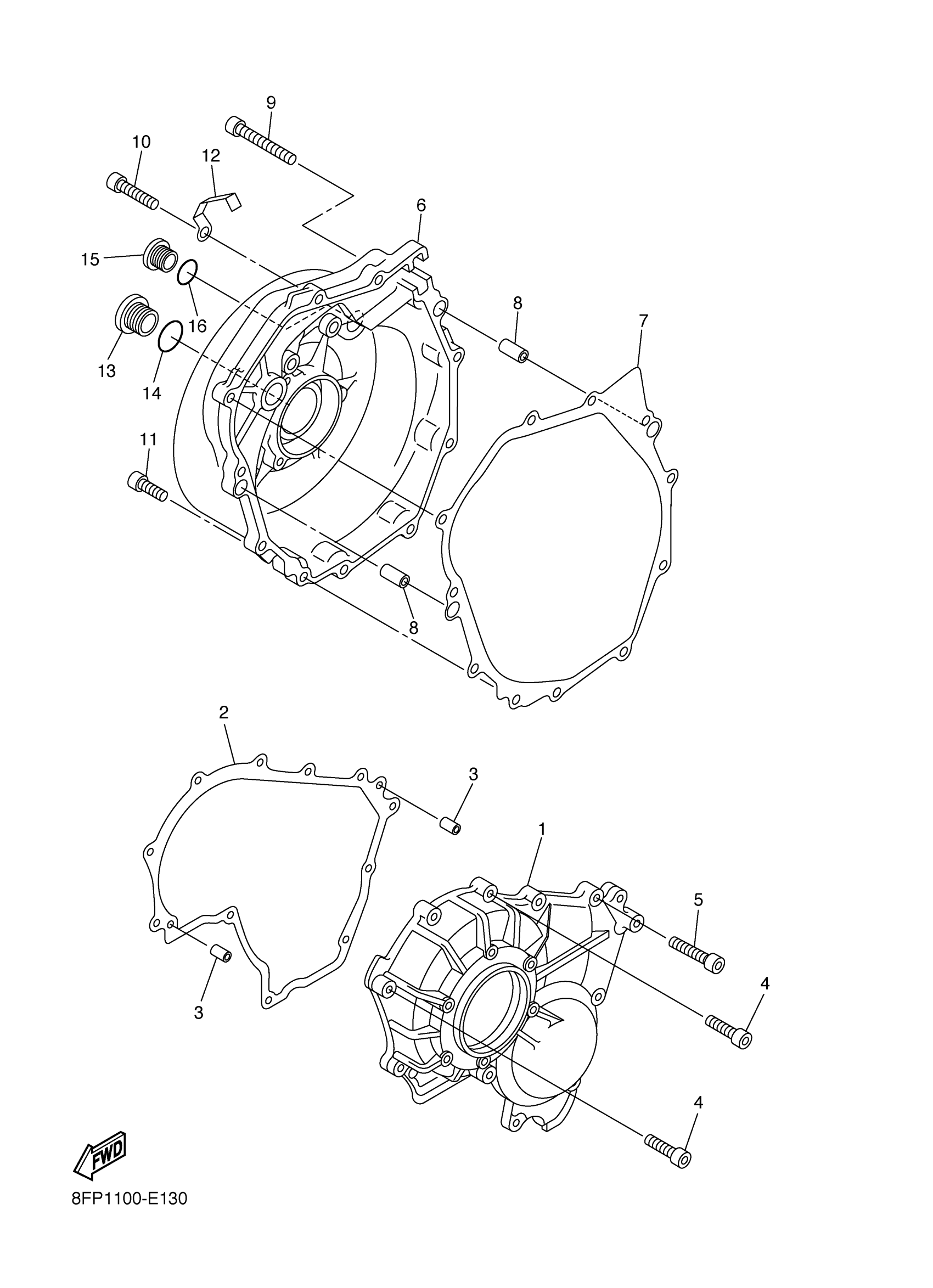

Yamaha RX10LTYR (APEX LTX_GT) 8FT7 2009 CRANKCASE COVER 1 Diagram

COVER, CRANKCASE 1

8FP-15411-00-00

$114.11

GASKET, CRANKCASE COVER 1

8FP-15451-00-00

$16.22

PIN, STRAIGHT

90250-08017-00

Unavailable

BOLT,SOCKET

91317-06025-00

$2.05

BOLT, HEXAGON SOCKET HEAD

90110-06058-00

Unavailable

COVER, CRANKCASE 2

8FP-15421-00-00

Unavailable

GASKET, CRANKCASE COVER 2

8FA-15461-01-00

$14.34

PIN, DOWEL

99530-08012-00

$6.62

BOLT(J17)

91312-06035-00

$2.38

BOLT,SOCKET

91317-06025-00

$2.05

BOLT,SOCKET HEAD

91314-06020-00

$2.05

CLAMP(4AJ)

90462-08225-00

$7.46

PLUG, STRAIGHT SCREW (15A)

90340-32080-00

$26.28

O-RING (341)

93210-32172-00

$5.78

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

$11.62

O-RING (2H9)

93210-14369-00

$5.80
