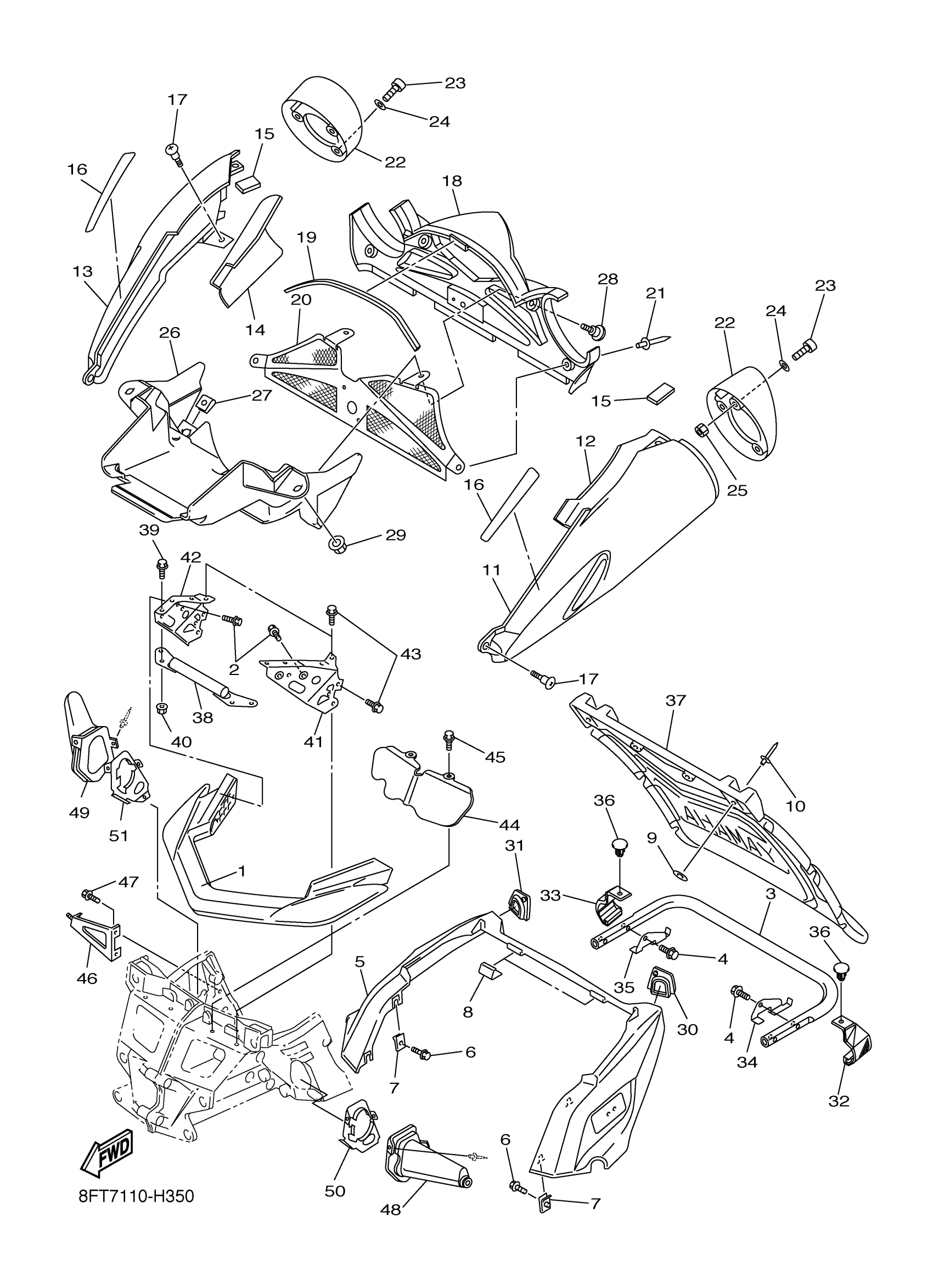

Yamaha RX10LTYR (APEX LTX_GT) 8FT7 2009 BUMPER Diagram

#

Description
Price

1

BUMPER, FRONT 1

8FA-77511-01-00

$237.55

2

BOLT, FLANGE(JN5)

95817-08016-00

$4.12

3

BUMPER, REAR 1

8FG-77541-01-00

$114.91

4

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

5

BUMPER, REAR 2

8EP-77542-00-00

$67.58

6

BOLT, FLANGE

95817-06016-00

$1.49

7

NUT, SPRING(4ES)

90183-06069-00

$5.93

8

TAPE 4

8FA-7717H-00-00

$0.96

9

WASHER, PLATE

90201-04027-00

$1.88

10

RIVET, BLIND

90267-47200-00

$2.28

11

PROTECTOR 1

8FP-77551-01-P0

$129.03

11

PROTECTOR 1

8FP-77551-01-P2

Unavailable

12

LINING, SHROUD 1

8FP-77261-00-00

Unavailable

13

PROTECTOR 2

8FP-77552-01-P0

$122.09

13

PROTECTOR 2

8FP-77552-01-P2

$108.83

14

LINING, SHROUD 2

8FP-77262-00-00

$23.00

15

LINING, SHROUD 3

8FP-77263-00-00

Unavailable

16

PROTECTOR, SIDE 1

8FR-77561-00-00

$11.32

17

SCREW, BINDING

90154-06009-00

$2.92

18

COVER, TAILLIGHT

8FP-84516-01-00

$82.49

19

TRIM 8

8FP-77234-00-00

$9.72

20

LOUVER 1

8FP-77441-00-00

$117.00

21

RIVET, BLIND(8CH)

90267-47187-00

$1.84

22

CAP

8FP-77517-00-00

$143.17

23

BOLT,SOCKET HEAD

91314-06020-00

$2.05

24

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.78

25

NUT, HEXAGON

95380-06600-00

$4.13

26

BRACKET, TAILLIGHT

8FP-2117E-01-00

$17.05

27

NUT, SPRING(4ES)

90183-06069-00

$5.93

28

BOLT

90109-06220-00

$7.43

29

NUT, U FLANGE

95604-06200-00

$2.35

30

GROMMET 1

8EP-77431-00-00

$23.09

31

GROMMET 2

8EP-77432-00-00

$13.14

32

COVER, 3

8EP-77563-00-00

$60.60

33

COVER, 4

8EP-77564-00-00

$31.32

34

PROTECTOR 4

8EP-77554-00-00

$16.32

35

PROTECTOR 5

8EP-77555-00-00

$16.09

36

PLUG

90338-08220-00

$0.62

37

FLAP

8GT-K7595-00-00

Unavailable

38

BRKT. ,FR. FOOD

8FP-21979-00-00

$86.18

39

BOLT, FLANGE

95817-06014-00

$2.15

40

NUT, FLANGE

95702-06500-00

$1.98

41

BRACKET, FRONT

8FA-21949-00-00

$59.08

42

BRACKET, FRONT BUMPER

8FA-21959-00-00

$51.74

43

BOLT, FLANGE

95814-08016-00

$6.68

44

COVER, FRONT

8FP-22865-00-00

$29.00

45

BOLT

90109-06261-00

$1.88

46

BRACKET, OIL TANK 1

8ES-2193E-00-00

$19.74

47

BOLT, FLANGE

95822-08014-00

$6.68

48

COVER 1

8FU-2198F-01-00

$27.20

49

COVER 3

8FU-2198J-01-00

$27.20

50

PLATE, STRG BRACKET 1

8FU-2195E-01-00

$11.54

51

PLATE, STRG BRACKET 2

8FU-2195F-01-00

$11.54
