TRACK SUSPENSION 1

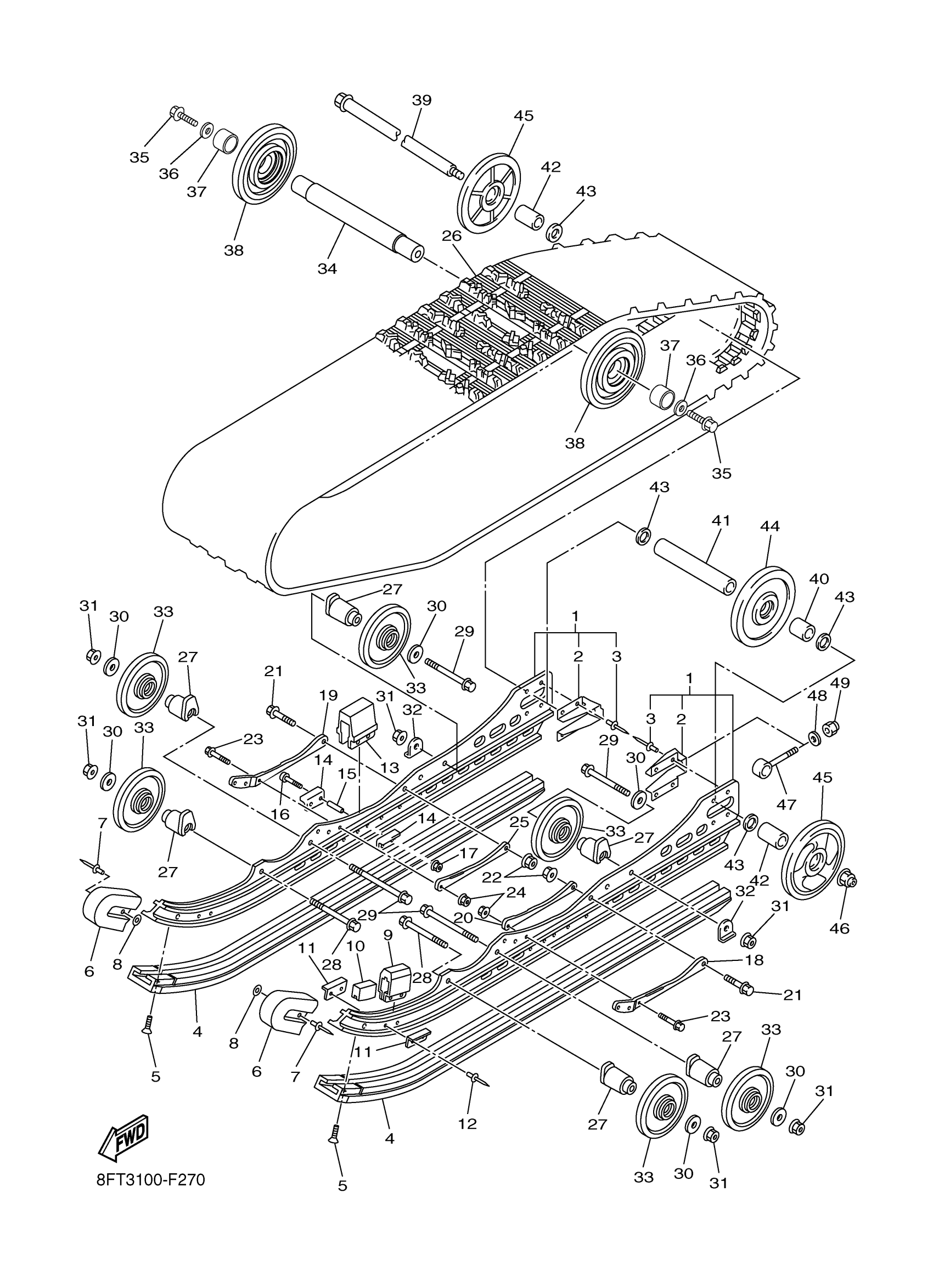

Yamaha RX10LTXB (APEX LTX) 8FT5 2008 TRACK SUSPENSION 1 Diagram
#
1
FRAME, SLIDING
8FT-W4741-00-00
$403.99
2
BRACKET
8DM-4741B-00-00
$45.99
3
RIVET
8V0-47468-00-00
$10.49
4
SLIDE RUNNER BLK 136''
SMA-8FT92-00-BK
Unavailable
5
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
6
RUNNER, SLIDING 2
8ED-47422-00-00
$46.99
7
RIVET BLIND
90267-48194-00
$3.28
8
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
9
DAMPER 2
8AC-47457-00-00
$18.49
10
SPACER
8FR-47341-00-00
$13.99
11
PLATE, DAMPER
8AX-47458-00-00
$10.99
12
RIVET, BLIND
90267-48199-00
$3.76
13
DAMPER 2
8FT-47457-00-00
Unavailable
14
PLATE, DAMPER
8FT-47458-00-00
Unavailable
15
COLLAR
90387-05027-00
$5.60
16
BOLT, HEXAGON SOCKET HEAD
90110-05020-00
Unavailable
17
NUT, S/L FLANGE
95607-05200-00
Unavailable
18
FRAME, SLIDING C
8FT-4741C-00-00
Unavailable
19
FRAME, SLIDING D
8FT-4741D-00-00
Unavailable
20
FRAME, SLIDING E
8FT-4741E-00-00
Unavailable
21
BOLT, FLANGE
95817-10030-00
Unavailable
22
NUT, S/L FLANGE
95602-10200-00
Unavailable
23
BOLT, FLANGE
95812-06030-00
Unavailable
24
NUT, U FLANGE
95604-06200-00
Unavailable
25
FRAME, SLIDING F
8FT-4741F-00-00
Unavailable
26
TRACK ASSY
8FG-47110-20-00
Unavailable
27
BRACKET 7
8ES-47419-20-00
Unavailable
28
BOLT, WASHER BASED(4HM)
90105-10737-00
Unavailable
29
BOLT, WASHER BASED(3FA)
90105-10727-00
Unavailable
30
WASHER, PLATE(42X)
90201-105H3-00
Unavailable
31
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
32
WASHER, CLAW
90214-10004-00
Unavailable
33
SUSPENSION WHEEL ASSY
8ET-47310-00-00
Unavailable
34
SHAFT 6
8FT-47488-00-00
Unavailable
35
BOLT, FLANGE
90105-10145-00
Unavailable
36
WASHER, PLATE
90201-10039-00
Unavailable
37
COLLAR
90387-25005-00
Unavailable
38
BOGEY WHEEL W SPACERS & BEARIN
8CR-4731A-00-00
Unavailable
39
REAR AXLE COMP.
8L8-47520-10-00
Unavailable
40
COLLAR
90387-20015-00
Unavailable
41
COLLAR
90387-20016-00
Unavailable
42
COLLAR
90387-20019-00
Unavailable
43
WASHER, PLATE(89W)
90201-205R6-00
Unavailable
44
GUIDE WHEEL ASSY
8CR-47550-10-00
Unavailable
45
WEIGHT
8EK-47550-11-00
Unavailable
46
NUT, SELF-LOCKING (8BF)
95607-14200-00
Unavailable
47
COLLAR 3
8DM-47479-00-00
Unavailable
48
WASHER, PLATE
92990-10600-00
Unavailable
49
NUT, NYLON
95707-10300-00
Unavailable
