Description

Price

1

CYLINDER HEAD ASSY

8FP-11101-09-00

Unavailable

2

GUIDE, INTAKE VALVE

3TJ-11133-10-00

$67.99

3

GUIDE, INTAKE VALVE

1WG-11133-11-00

$77.99

4

PLUG, STRAIGHT SCREW

90340-27001-00

$19.99

5

PIN, DOWEL(3XW)

91808-16023-00

$8.49

6

. BOLT, FLANGE

90105-06026-00

Unavailable

7

CR9EB NGK SPLUG 4PK

CR9-EB000-00-00

Unavailable

8

WASHER, PLATE

90201-10033-00

$8.49

9

NUT, CROWN(2GG)

90176-10075-00

$8.49

10

NUT

90179-10006-00

$9.49

11

NUT (26H)

90179-10414-00

$11.49

12

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

13

GASKET 256113960000

90430-06014-00

Unavailable

14

COVER, CYLINDER HEAD 1

8FP-11191-00-00

Unavailable

15

GASKET, HEAD COVER 1

8FP-11193-00-00

$59.99

16

BOLT(4BP)

90109-066F0-00

Unavailable

17

RUBBER, MOUNT 1

5VY-1111G-00-00

Unavailable

18

GASKET, CYLINDER HEAD 1

8FP-11181-00-00

Unavailable

19

BOLT,SOCKET

91317-06060-00

Unavailable

20

PLUG, OIL

3Y1-15363-10-00

Unavailable

21

O-RING (646)

93210-19123-00

Unavailable

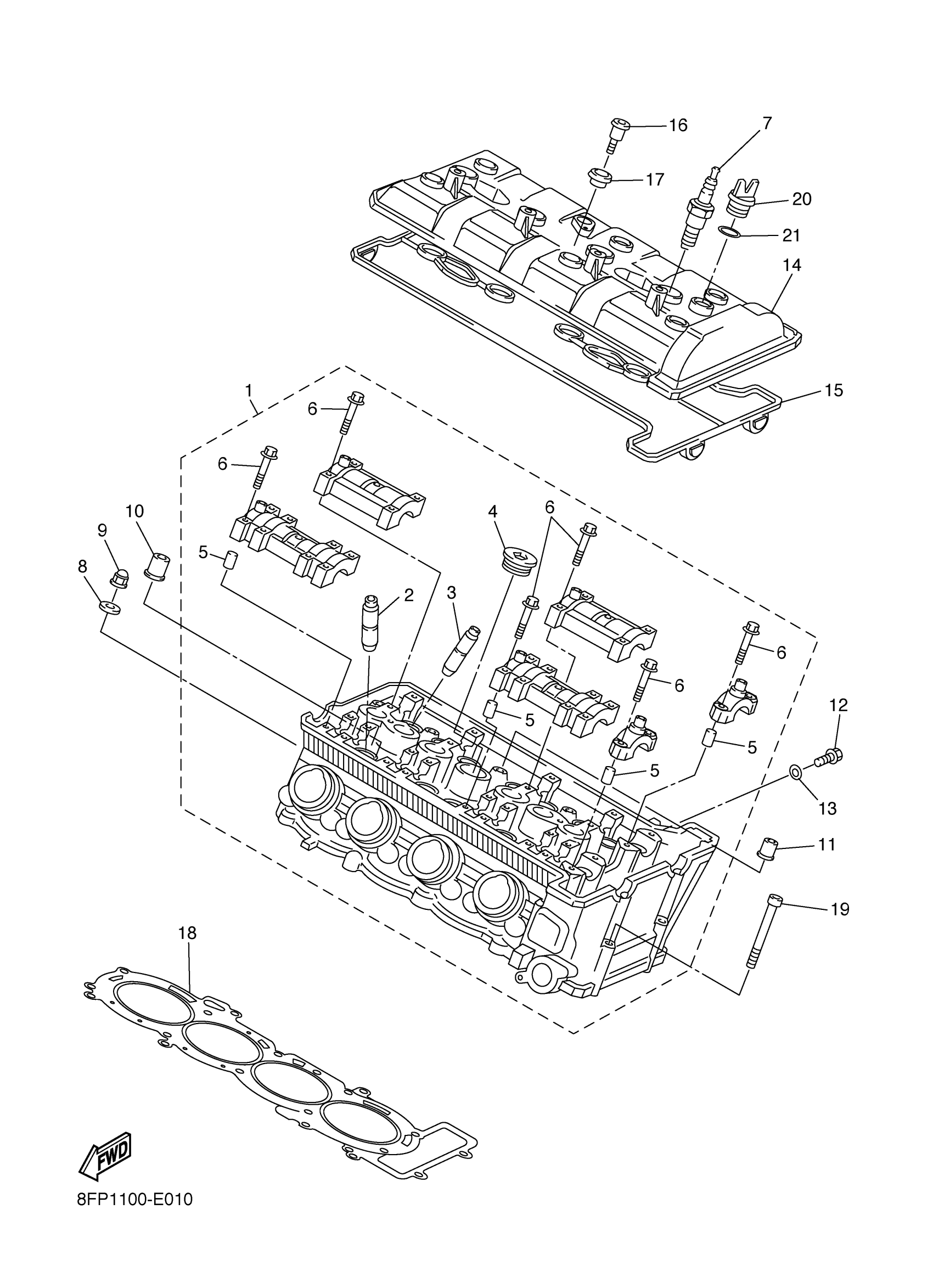

Yamaha RX10LTXB (APEX LTX) 8FT5 2008 CYLINDER HEAD Diagram

CYLINDER HEAD ASSY

GUIDE, INTAKE VALVE

GUIDE, INTAKE VALVE

PLUG, STRAIGHT SCREW

PIN, DOWEL(3XW)

. BOLT, FLANGE

CR9EB NGK SPLUG 4PK

WASHER, PLATE

NUT, CROWN(2GG)

NUT

NUT (26H)

BOLT, FLANGE(4MY)

GASKET 256113960000

COVER, CYLINDER HEAD 1

GASKET, HEAD COVER 1

BOLT(4BP)

RUBBER, MOUNT 1

GASKET, CYLINDER HEAD 1

BOLT,SOCKET

PLUG, OIL

O-RING (646)
