- RX10LTGTAX (APEX LTX GT 40TH ANIVERSARY) 8GV5 2008
TRACK SUSPENSION 2

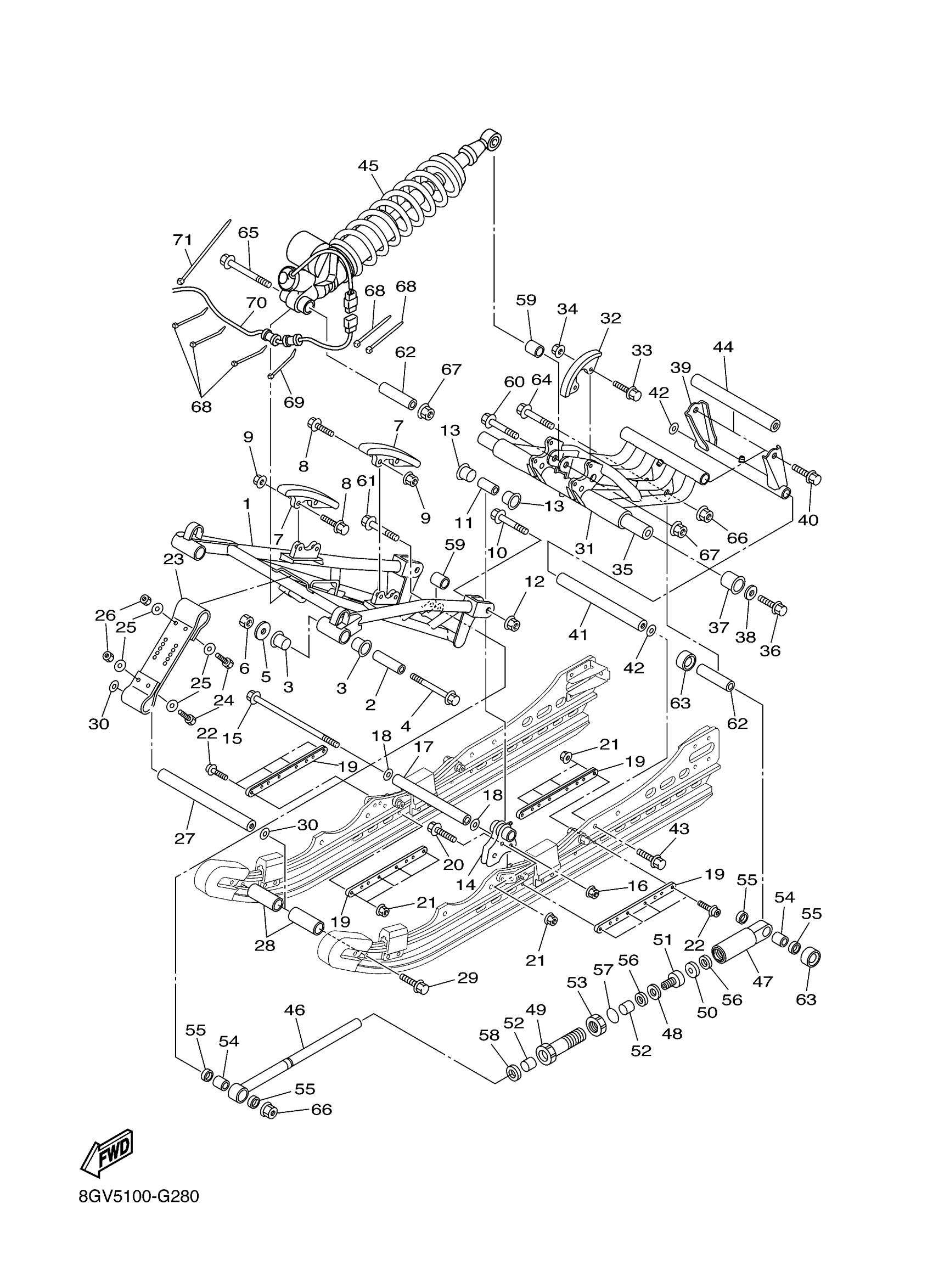

Yamaha RX10LTGTAX (APEX LTX GT 40TH ANIVERSARY) 8GV5 2008 TRACK SUSPENSION 2 Diagram
#
1
ARM, PIVOT 1
8FT-47331-01-00
Unavailable
2
COLLAR
90387-10042-00
$21.99
3
BUSH
90386-22002-00
$21.99
4
BOLT, FLANGE
90105-10150-00
$12.49
5
WASHER, PLATE(42X)
90201-105H3-00
$7.49
6
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
$7.49
7
RUNNER, SLIDING 2
8F3-47422-01-00
$18.49
8
BOLT, FLANGE
95817-06020-00
$3.81
9
NUT,SELF-LOCKING
95607-06200-00
$12.49
10
BOLT, FLANGE
90105-10091-00
$5.60
11
COLLAR
90387-10033-00
$28.99
12
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
13
BUSH
90386-15002-00
$16.99
14
BRACKET 1
8FU-47415-10-00
Unavailable
15
BOLT, FLANGE
90105-08119-00
Unavailable
16
NUT, SELF-LOCKING
90185-08169-00
Unavailable
17
COLLAR
90387-08037-00
Unavailable
18
WASHER (1T1)
90201-08649-00
Unavailable
19
GUSSET
8FT-47348-00-00
Unavailable
20
BOLT, FLANGE
95812-08030-00
Unavailable
21
NUT, SELF-LOCKING
95602-08200-00
Unavailable
22
BOLT(4EB)
90109-083G1-00
Unavailable
23
STOPPER 1
8GM-47495-00-00
Unavailable
24
BOLT, HEXAGON
97017-06025-00
Unavailable
25
WASHER, PLATE
90201-06081-00
Unavailable
26
NUT, NYLON
95707-06300-00
Unavailable
27
SHAFT 3
8FU-47485-00-00
Unavailable
28
COLLAR
90387-19003-00
Unavailable
29
BOLT, FLANGE
95817-10030-00
Unavailable
30
WASHER, PLATE (26H)
90201-102G9-00
Unavailable
31
ARM, PIVOT 2
8FT-47332-02-00
Unavailable
32
SLIDER 1
8FT-47441-10-00
Unavailable
33
BOLT, FLANGE
95817-06020-00
$3.81
34
NUT,SELF-LOCKING
95607-06200-00
$12.49
35
SHAFT 2
8FT-47475-00-00
Unavailable
36
BOLT, FLANGE
90105-10145-00
Unavailable
37
BUSH, SOLID(8CJ)
90381-28108-00
Unavailable
38
WASHER, PLATE
90201-10039-00
Unavailable
39
BRACKET 3
8FU-47417-11-00
Unavailable
40
BOLT, FLANGE
95817-10030-00
Unavailable
41
SHAFT 3
8FU-47485-00-00
Unavailable
42
WASHER PLATE (789)
90201-10136-00
Unavailable
43
BOLT, FLANGE
95817-10030-00
Unavailable
44
SHAFT 4
8FU-47486-00-00
Unavailable
45
SHOCK ABSORBER
8GV-47480-50-00
Unavailable
46
ROD, CONTROL 1
8FR-4745A-00-00
Unavailable
47
ROD, CONTROL 3
8FU-4745C-10-00
Unavailable
48
WASHER, PLATE(8CJ)
90202-16229-00
Unavailable
49
ROD, CONTROL 2
8FU-4745B-00-00
Unavailable
50
WASHER (L=7.5)
8FU-47384-00-00
Unavailable
50
WASHER (L=5.0)
8FU-47384-10-00
Unavailable
50
WASHER
8FU-47384-20-00
Unavailable
51
STOPPER, CONT. 1
8FU-4745D-00-00
Unavailable
52
BUSH, BIMETAL FORMED(8CJ)
90384-16251-00
Unavailable
53
NUT
8JA-47368-00-00
Unavailable
54
BEARING
93315-31758-00
Unavailable
55
OIL SEAL
93109-17071-00
Unavailable
56
SPACER
8FU-47466-00-00
Unavailable
57
O-RING
93210-347A6-00
Unavailable
58
SEAL, TRIM DUST
C68-43822-00-00
Unavailable
59
COLLAR
90387-1012A-00
Unavailable
60
BOLT, FLANGE (8V9)
95812-10045-00
Unavailable
61
BOLT, WASHER BASED(4KD)
90105-10728-00
Unavailable
62
COLLAR
90387-10034-00
Unavailable
63
SPACER
8FU-47341-00-00
Unavailable
64
BOLT, FLANGE(7LU)
95817-10070-00
Unavailable
65
BOLT, FLANGE(7LU)
95817-10070-00
Unavailable
66
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
67
NUT, S/L FLANGE
95602-10200-00
Unavailable
68
BAND
1UA-82591-00-00
Unavailable
69
CLAMP(3XW)
90464-35132-00
Unavailable
70
WIRE, SUB LEAD
8GD-82509-01-00
Unavailable
71
CLAMP
90464-80001-00
Unavailable
