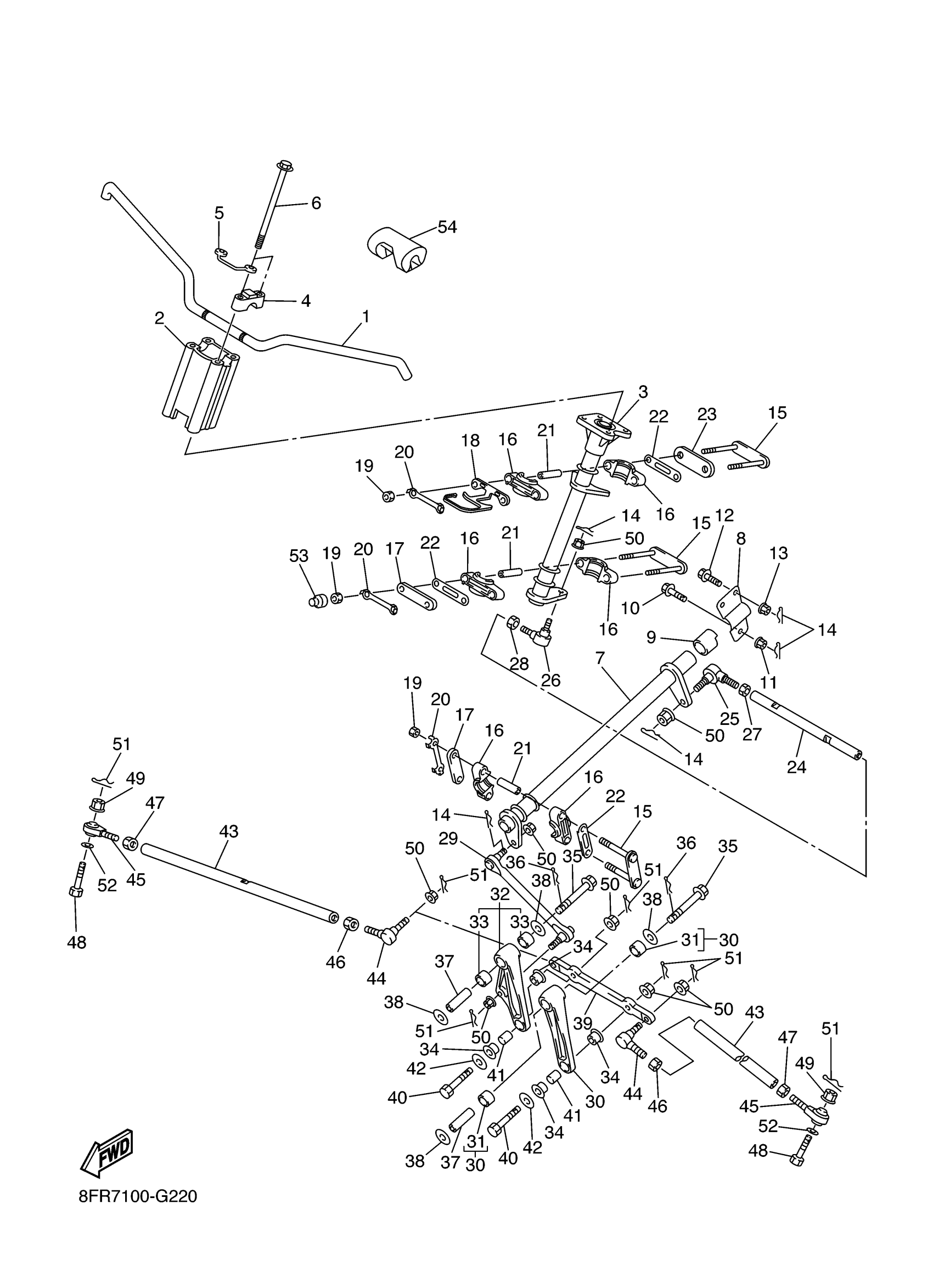

Yamaha RX10LTGTAX (APEX LTX GT 40TH ANIVERSARY) 8GV5 2008 STEERING Diagram

#

Description
Price

1

HANDLEBAR

8GT-26111-00-00

$224.99

2

JOINT

8GT-2381B-00-00

Unavailable

3

COLUMN, STEERING 2

8FP-23813-00-00

Unavailable

4

HOLDER, HANDLE UPPER

3SP-23441-00-00

$27.99

5

HOLDER

8FP-23857-00-00

Unavailable

6

BOLT

8GT-23876-00-00

$10.49

7

COLUMN, STEERING

8FA-23811-00-00

Unavailable

8

COVER, STEERING

8FA-23818-01-00

$8.99

9

BEARING, STEERING UPPER

8FA-23873-01-00

$6.99

10

BOLT, WASHER BASED(4KD)

90105-10728-00

$30.99

11

NUT, S/L FLANGE

95602-10200-00

$4.82

12

BOLT, WASHER BASED(JA1)

90105-08552-00

$2.97

13

NUT, SELF-LOCKING

95602-08200-00

$3.20

14

CLIP 136253750000

90468-12006-00

$8.49

15

HOLDER, BEARING

8FA-23872-00-00

$14.49

16

PLANE BEARING, STEERING

8FA-23812-00-00

Unavailable

17

HOLDER 2

8FA-23867-00-00

Unavailable

18

HOLDER, BEARING

8FP-23872-00-00

Unavailable

19

NUT(6L2)

95333-08600-00

Unavailable

20

WASHER, LOCK 1

1UY-23894-01-00

Unavailable

21

COLLAR

90387-09006-00

Unavailable

22

WASHER, PLAIN

8FA-23843-00-00

Unavailable

23

WASHER, PLAIN

8FP-23843-00-00

Unavailable

24

ROD, STEERING

8FA-23828-00-00

Unavailable

25

JOINT, UNIVERSAL 3

8CR-23847-00-00

Unavailable

26

JOINT, UNIVERSAL 2

8CR-23845-10-00

Unavailable

27

NUT (3WP1)

95317-10700-00

Unavailable

28

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

29

ROD, STEERING RELAY

8FA-23821-00-00

Unavailable

30

ARM PIVOT ASSY

8FG-2389K-00-00

Unavailable

31

BUSH, FORMED

90383-17001-00

Unavailable

32

ARM PIVOT ASSY. , 2

8FA-2389M-00-00

Unavailable

33

BEARING

93317-41785-00

Unavailable

34

BUSH, SOLID

90381-14001-00

Unavailable

35

BOLT, FLANGE

90105-12017-00

Unavailable

36

CLIP, RING

8FA-2384N-00-00

Unavailable

37

COLLAR

8FA-2412G-00-00

Unavailable

38

WASHER, PLATE

90201-121U3-00

Unavailable

39

ARM, IDLER

8FU-23826-00-00

Unavailable

40

BOLT, PIN HOLE (8M6)

90102-10044-00

Unavailable

41

COLLAR

90387-10070-00

Unavailable

42

WASHER PLATE (3L6)

90201-10742-00

Unavailable

43

ROD, TIE

8ES-23831-00-00

Unavailable

44

JOINT, UNIVERSAL 2

8CR-23845-10-00

Unavailable

45

JOINT, UNIVERSAL 3

8FA-23847-00-00

Unavailable

46

NUT (3WP1)

95317-10700-00

Unavailable

47

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

48

BOLT, PIN HOLE (8M6)

90102-10044-00

Unavailable

49

NUT, NYLON

95707-10300-00

Unavailable

50

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

51

PIN, COTTER

91490-20025-00

Unavailable

52

WASHER PLATE (3L6)

90201-08759-00

Unavailable

53

CAP 2

35R-25335-00-00

Unavailable

54

PAD, STEERING

8FR-23815-00-00

Unavailable
