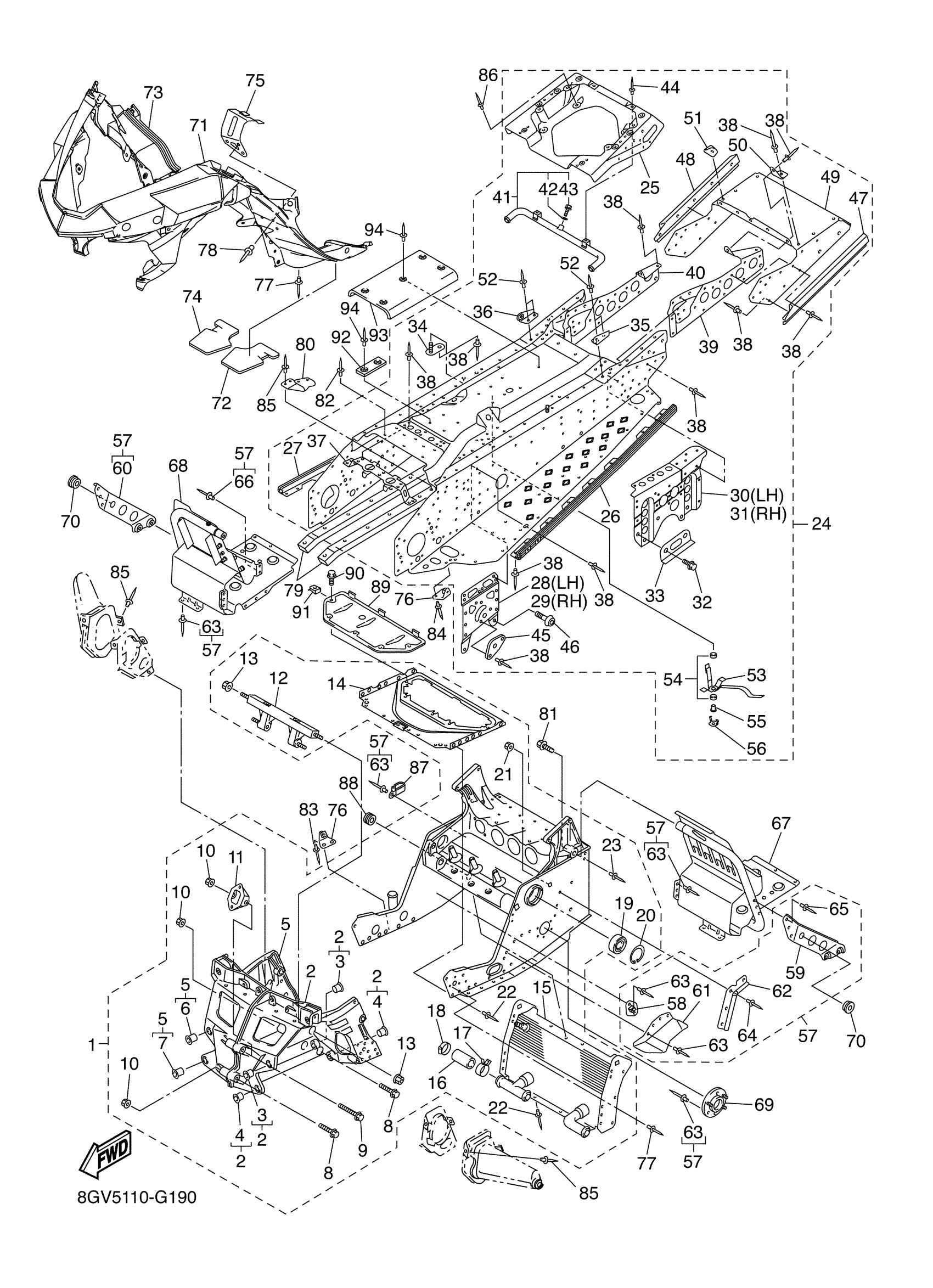

Yamaha RX10LTGTAX (APEX LTX GT 40TH ANIVERSARY) 8GV5 2008 FRAME Diagram
#
1
FRONT FRAME COMP.
8FP-21940-01-00
Unavailable
2
BULKHEAD
8FA-W2197-13-00
$721.99
3
BUSH, SOLID
90381-15001-00
$5.60
4
BUSH, SOLID
90381-16004-00
$16.99
5
BULKHEAD 2
8FA-W2198-20-00
Unavailable
6
BUSH, SOLID
90381-15001-00
$5.60
7
BUSH, SOLID
90381-16004-00
$16.99
8
BOLT, FLANGE
95817-08060-00
$3.76
9
BOLT, WASHER BASED
90105-084A1-00
$10.49
10
NUT, SELF-LOCKING
90185-08169-00
$8.49
11
BRACKET, REGULATOR
8FA-2128A-01-00
Unavailable
12
BRACKET, STEERING 1
8FG-21947-00-00
$180.99
13
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
14
. PROTECTOR
8FA-2193A-00-00
Unavailable
15
HEAT EXCHANGER ASSY
8FA-12440-00-00
$696.99
16
HOSE 7
8FA-12551-00-00
Unavailable
17
CLIP (8M6)
90467-28046-00
Unavailable
18
HOSE CLAMP ASSY
90450-35001-00
Unavailable
19
BEARING
93306-20650-00
Unavailable
20
CIRCLIP(MF1)
99009-62500-00
Unavailable
21
NUT, SELF-LOCKING
90185-08169-00
$8.49
22
RIVET, BLIND
90267-47195-00
Unavailable
23
RIVET, BLIND
90267-48016-00
Unavailable
24
REAR FRAME COMP.
8GV-21950-40-00
Unavailable
25
REINEFORCEMENT, FRAME REAR 1
8FA-W2199-10-00
Unavailable
26
REINFORCEMENT, FOOTREST 1
8FG-21926-00-00
Unavailable
27
REINFORCEMENT, FOOTREST 2
8FG-21936-00-00
Unavailable
28
. BRACKET, MAIN TRACK 1
8FU-21943-00-00
Unavailable
29
BRACKET, MAIN TRACK 2
8FU-21953-00-00
Unavailable
30
BRACKET, RR.TRACK SUSPENTION 1
8FT-21944-00-00
Unavailable
31
BRACKET, RR.TRACK SUSPENTION 2
8FT-21954-00-00
Unavailable
32
BOLT, FLANGE
95814-10020-00
Unavailable
33
PATCH 8
8FU-21988-01-00
Unavailable
34
BRACKET, FUEL TANK 1
8CR-2194N-00-00
Unavailable
35
BRACKET 1
8FA-2194X-00-00
Unavailable
36
BRACKET 2
8FA-2195X-00-00
Unavailable
37
PROTECTOR, MUFFLER
8FA-2194H-01-00
Unavailable
38
RIVET, BLIND
90267-47195-00
Unavailable
39
PATCH 3
8FT-21963-01-00
Unavailable
40
PATCH 4
8FT-21964-00-00
Unavailable
41
HEAT EXCHANGER ASSY 4
8FU-1241A-00-00
Unavailable
42
WASHER, SEAL (7G5)
90210-06006-00
Unavailable
43
BOLT, FLANGE
95817-06016-00
Unavailable
44
RIVET, BLIND(3JB)
90267-48095-00
Unavailable
45
BRACKET, MAIN TRACK 3
8FU-21919-00-00
Unavailable
46
BOLT, BUTTON
92014-10020-00
Unavailable
47
MEMBER, SIDE 1
8FG-2111J-00-00
Unavailable
48
MEMBER, SIDE 2
8FG-2111K-00-00
Unavailable
49
PANEL, SUB FRAME 5
8FG-21916-01-00
Unavailable
50
PATCH 8
8FG-21988-00-00
Unavailable
51
PATCH 9
8FG-21989-00-00
Unavailable
52
RIVET, BLIND
90267-47197-00
Unavailable
53
STAY, MUFFER
8FR-2194L-00-00
Unavailable
54
DAMPER, MUFFLER
8FA-14737-00-00
Unavailable
55
COLLAR
90387-08084-00
Unavailable
56
. STAY, MUFFLER
8FR-2194J-00-00
Unavailable
57
FRAME CONNECTION KIT
8FP-W2195-11-00
Unavailable
58
BRACKET, CHAIN HOUSING
8CR-21939-01-00
Unavailable
59
BRACKET, 5
8FP-2196M-01-00
Unavailable
60
BRACKET, 6
8FP-2197M-01-00
Unavailable
61
COVER 2
8FP-2198G-01-00
Unavailable
62
CLAMP, WIREHARNESS
8FA-21999-00-00
Unavailable
63
RIVET, BLIND
90267-47195-00
Unavailable
64
RIVET, BLIND
90267-48018-00
Unavailable
65
RIVET, BLIND
90267-48177-00
Unavailable
66
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
67
FOOTREST COMP. 1
8FP-21960-01-00
Unavailable
68
FOOTREST COMP. 2
8FP-21970-00-00
Unavailable
69
HOUSING, REINF SUB-ASSY(L.H)
8EK-21920-01-00
Unavailable
70
GROMMET(4FU)
90480-13567-00
Unavailable
71
FRAME UNDER 1
8FP-2196A-02-00
Unavailable
72
DAMPER 2
8FP-77374-00-00
Unavailable
73
FRAME, UNDER 2
8FP-2196E-02-00
Unavailable
74
DAMPER 3
8FP-77375-00-00
Unavailable
75
BRACKET, GUARD FITTING
8FP-21972-00-00
Unavailable
76
BRACKET 3
8FA-2196F-00-00
Unavailable
77
RIVET, BLIND
90267-48018-00
Unavailable
78
RIVET, BLIND
90267-47200-00
Unavailable
79
PROTECTOR, FRAME
8FG-21978-00-00
Unavailable
80
BRACKET 7
8FU-2197N-00-00
Unavailable
81
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
82
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
83
RIVET, BLIND (22W)
90267-48083-00
Unavailable
84
RIVET, BLIND(3JB)
90267-48095-00
Unavailable
85
RIVET, BLIND
90267-47195-00
Unavailable
86
RIVET, BLIND
90267-48177-00
Unavailable
87
CLAMP(4MX)
90465-06376-00
Unavailable
88
GROMMET
90480-23001-00
Unavailable
89
PROTECTOR, FRAME
8FA-2197E-01-00
Unavailable
90
BOLT(3XP)
90109-065F3-00
Unavailable
91
NUT, SPRING(4ES)
90183-06069-00
Unavailable
92
SPACER
8FA-21998-00-00
Unavailable
93
SHIELD, HEAT
8FG-23892-00-00
Unavailable
94
RIVET, BLIND (8L0)
90267-48059-00
Unavailable
