- RX10LHL (APEX LE) 8LF2 2017
TRACK SUSPENSION 2

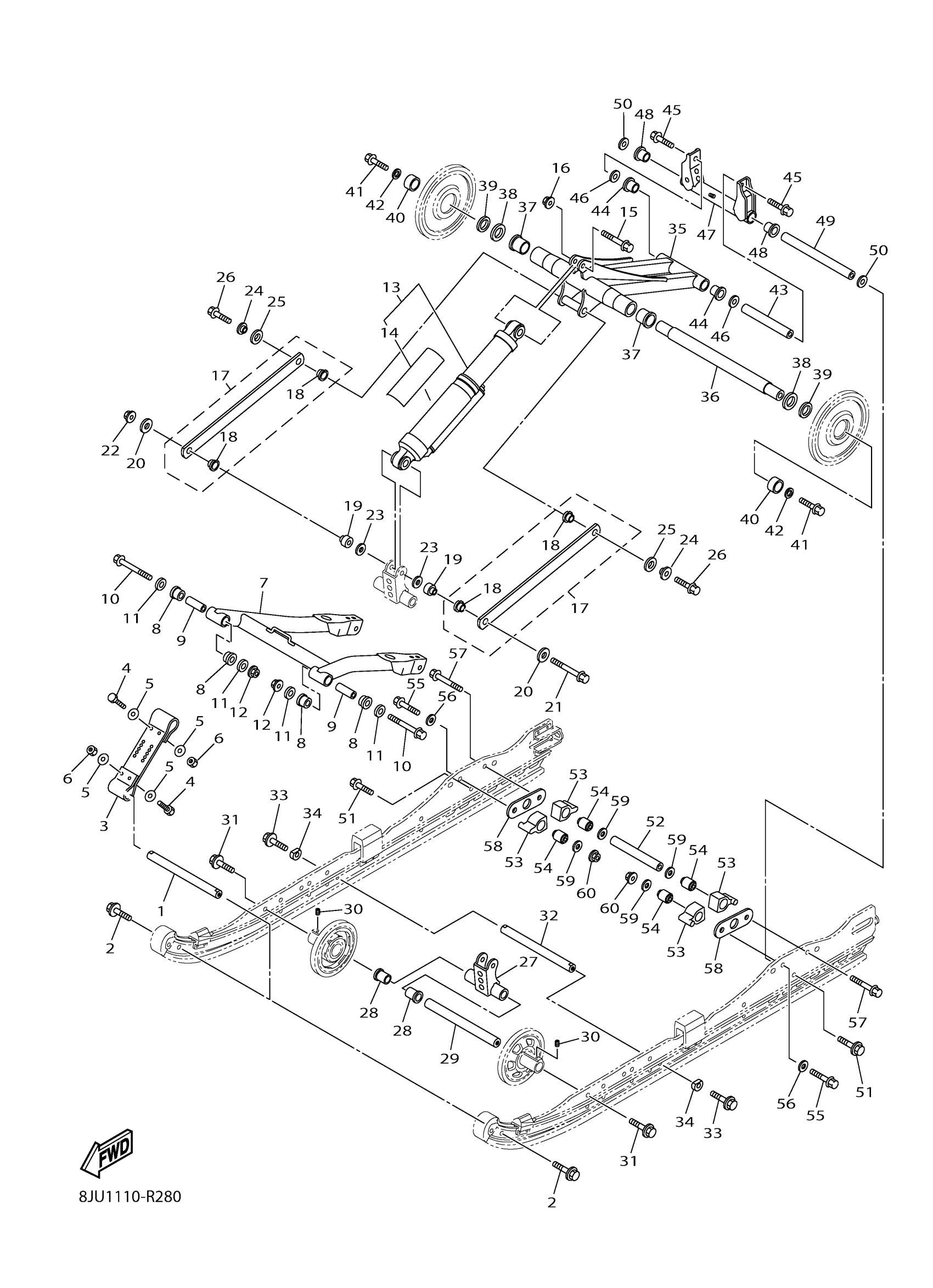

Yamaha RX10LHL (APEX LE) 8LF2 2017 TRACK SUSPENSION 2 Diagram
#
1
SHAFT 4
8GL-47486-00-00
Unavailable
2
BOLT, FLANGE
95817-10030-00
$8.49
3
STOPPER 1
8KM-47495-00-00
Unavailable
4
BOLT, HEXAGON
97017-06025-00
$4.24
5
WASHER, PLATE
90201-06081-00
$8.49
6
NUT, NYLON
95707-06300-00
$3.50
7
ARM, PIVOT 1
8KM-47331-00-00
$253.99
8
BUSH, SOLID(2WR)
90381-18068-00
$39.99
9
SHAFT 1
8GL-47465-00-00
Unavailable
10
BOLT, FLANGE
90105-10202-00
$7.49
11
WASHER, PLATE
90201-10046-00
$7.49
12
NUT, S/L FLANGE
95602-10200-00
$4.82
13
SHOCK ABSORBER
8KM-47480-00-00
Unavailable
14
LABEL, WARNING
8KM-22259-00-00
$41.99
15
BOLT, FLANGE
90105-10283-00
$5.60
16
NUT, S/L FLANGE
95602-10200-00
$4.82
17
RELAY ROD ASSY
8KM-47490-00-00
Unavailable
18
BUSH, SOLID
90381-16002-00
Unavailable
19
COLLAR 2
8HR-47366-00-00
Unavailable
20
WASHER, PLATE
90201-16027-00
Unavailable
21
BOLT, FLANGE
90105-10375-00
Unavailable
22
NUT, S/L FLANGE
95602-10200-00
$4.82
23
WASHER, PLATE
90201-10052-00
Unavailable
24
COLLAR 2
8HR-47366-10-00
Unavailable
25
WASHER, PLATE
90201-16027-00
Unavailable
26
BOLT, FLANGE
95817-10030-00
$8.49
27
BRACKET, ARM PIVOT
8HR-47349-00-00
Unavailable
28
BUSH
90386-20001-00
Unavailable
29
SHAFT 5
8GN-47487-00-00
Unavailable
30
BOLT, SET (8K2)
90113-06039-00
Unavailable
31
BOLT, FLANGE
90105-10209-00
Unavailable
32
SHAFT 4
8GL-47486-00-00
Unavailable
33
BOLT, FLANGE
95817-10030-00
$8.49
34
SPACER
8GL-47341-00-00
Unavailable
35
ARM, PIVOT 2
8KM-47332-00-00
Unavailable
36
SHAFT 2
8FU-47475-00-00
Unavailable
37
BUSH, SOLID(8CJ)
90381-28108-00
Unavailable
38
WASHER, PLATE (8V2)
90201-251G8-00
Unavailable
39
WASHER, PLATE(8CJ)
90201-250T6-00
Unavailable
40
COLLAR
90387-25005-00
Unavailable
41
BOLT
90109-10032-00
Unavailable
42
WASHER, PLATE
90201-10039-00
Unavailable
43
SHAFT 6
8KM-47488-20-00
Unavailable
44
BUSH(JA1)
90386-19160-00
Unavailable
45
BOLT, FLANGE
90105-10189-00
Unavailable
46
WASHER, PLATE
90201-10043-00
Unavailable
47
BRACKET 3
8KM-47417-00-00
Unavailable
48
BUSH(JA1)
90386-19160-00
Unavailable
49
SHAFT 3
8FU-47485-00-00
Unavailable
50
WASHER, PLATE
90201-10076-00
Unavailable
51
BOLT, FLANGE
95817-10030-00
$8.49
52
SHAFT 6
8KM-47488-00-00
Unavailable
53
STOPPER 2
8KM-47496-00-00
Unavailable
54
BUSH, REAR SHOCK ABSORBER
4GY-22216-30-00
Unavailable
55
BOLT, FLANGE
90105-10210-00
Unavailable
56
WASHER, PLATE
90201-10043-00
Unavailable
57
BOLT, FLANGE
90105-10029-00
Unavailable
58
PLATE, GUIDE
8KM-47467-00-00
Unavailable
59
WASHER, PLATE
90201-10076-00
Unavailable
60
NUT, S/L FLANGE
95602-10200-00
$4.82
