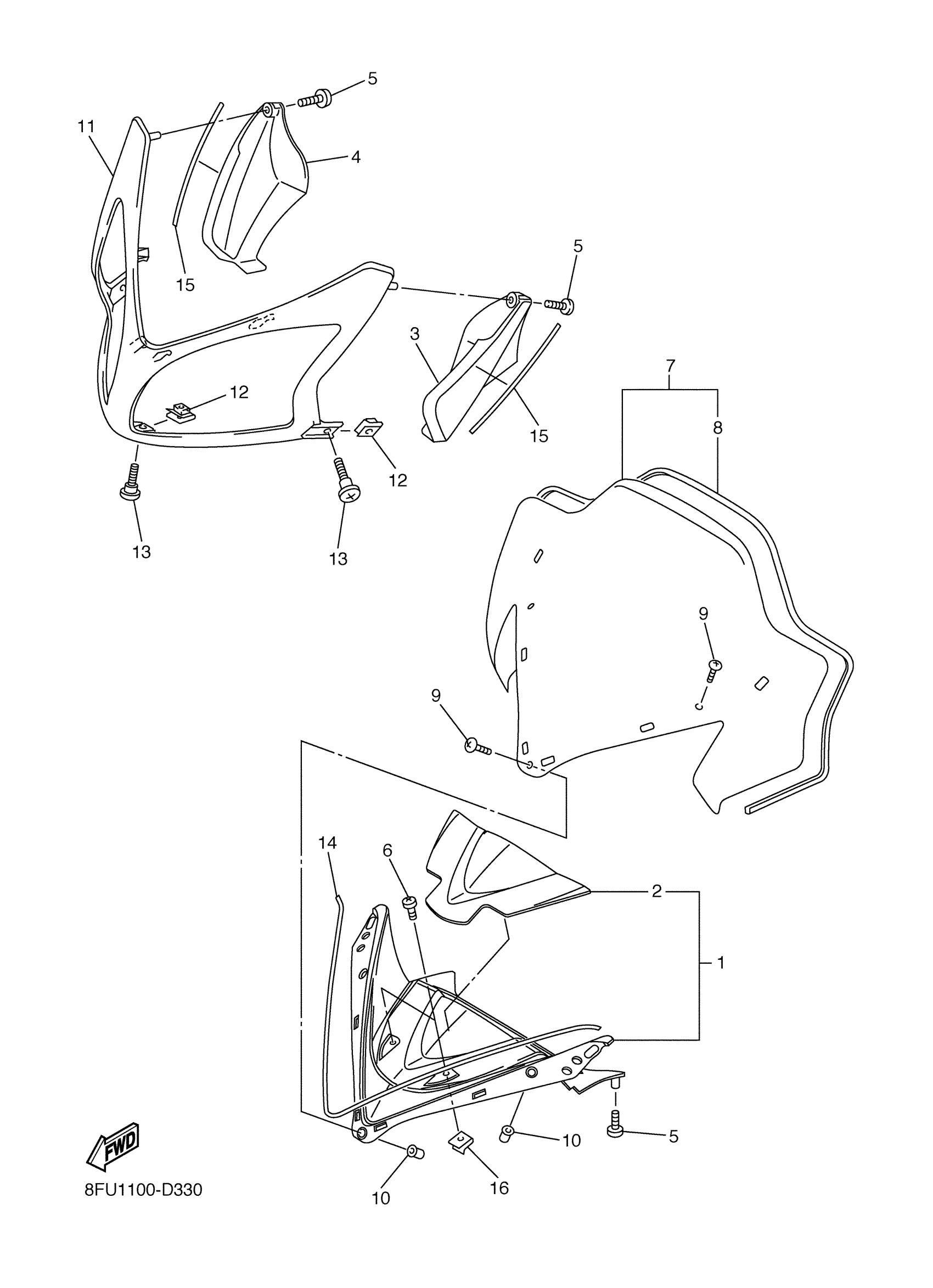

Find the part on the Windshield diagram for your 2005 Yamaha RX-1 (RX10K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Yamaha RX-1 (RX10K) Windshield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, HEADLIGHT

8ES-W7725-00-00

1

$350.58

In stock

2

DAMPER 1

8ES-77198-00-00

—

$93.40

In stock

3

PLATE 1

8FA-77185-00-00

1

$46.40

In stock

4

PLATE 2

8FA-77186-00-00

1

$46.37

In stock

5

SCREW, TAPPING(4MV)

97707-50016-00

1

$1.16

In stock

6

SCREW, BINDING

98907-06014-00

1

$5.60

In stock

7

WINDSHIELD, CLR W/BLK

SMA-8FA96-30-BK

1
Out of stock

8

. TRIM, UPPER

8FJ-K7213-00-00

1
Out of stock

9

SCREW, ROUND HEAD(1UX)

90150-05024-00

1

$2.85

In stock

10

NUT(1KT)

90179-05523-00

1

$4.33

In stock

11

FAIRING

8FA-77231-A1-33

1
Out of stock

12

NUT, SPRING(4ES)

90183-06069-00

1

$5.93

In stock

13

SCREW(2XF)

90149-06263-00

1
Out of stock

14

TRIM, LOWER

8FA-77214-00-00

1

$2.92

In stock

15

TRIM 3

8FA-77215-00-00

1

$1.54

In stock

16

NUT, SPRING(4ES)

90183-06069-00

1

$5.93

In stock
