2005 Yamaha RX-1 (RX10K) Bumper Diagram

← All diagrams

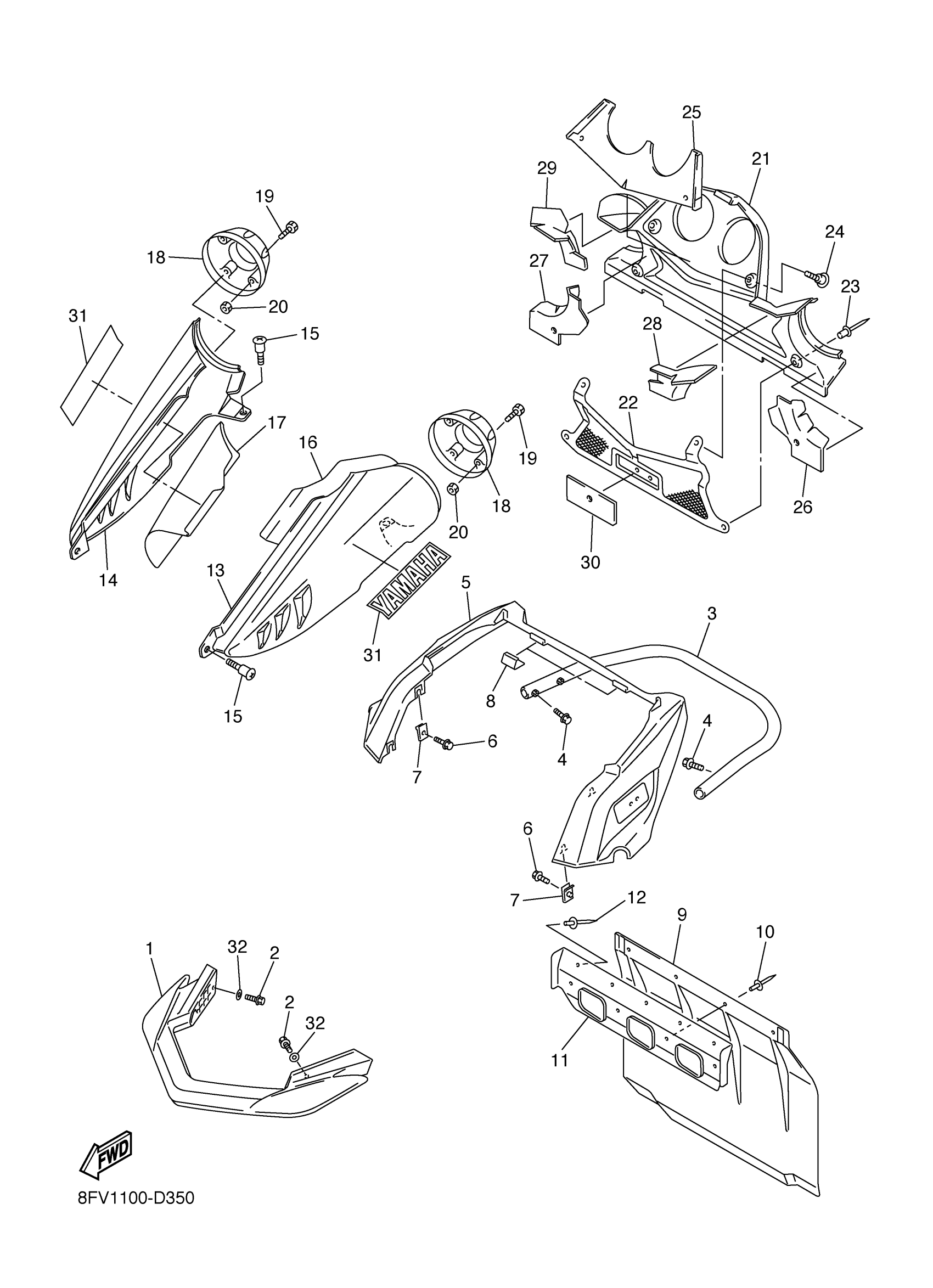

Find the part on the Bumper diagram for your 2005 Yamaha RX-1 (RX10K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Yamaha RX-1 (RX10K) Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BUMPER, FRONT 1

8FA-77511-01-00

1
Out of stock

2

BOLT, FLANGE(JN5)

95817-08016-00

1
Out of stock

3

BUMPER, REAR 1

8FA-77541-01-00

—
Out of stock

4

BOLT, FLANGE(8AB)

95817-08020-00

1
Out of stock

5

BUMPER, REAR 2

8FA-77542-00-00

—
Out of stock

6

BOLT, FLANGE

95817-06016-00

1
Out of stock

7

NUT, SPRING(4ES)

90183-06069-00

1
Out of stock

8

TAPE 4

8FA-7717H-00-00

1
Out of stock

9

FLAP

8GT-K7595-00-00

1
Out of stock

10

RIVET, BLIND(8CH)

90267-47187-00

1
Out of stock

11

STOPPER, FLAP

8FU-77596-00-00

1
Out of stock

12

RIVET, BLIND(3JB)

90267-48095-00

1
Out of stock

13

PROTECTOR 1

8FA-77551-A0-33

1
Out of stock

14

PROTECTOR 2

8FA-77552-A0-33

1
Out of stock

15

SCREW, BINDING

90154-06009-00

1
Out of stock

16

LINING, SHROUD 1

8FA-77261-00-00

—
Out of stock

17

LINING, SHROUD 2

8FA-77262-00-00

1
Out of stock

18

CAP

8FA-77517-10-00

—
Out of stock

19

BOLT,SOCKET HEAD

91314-06014-00

—
Out of stock

20

NUT(6TA)

95317-06600-00

—
Out of stock

21

COVER, TAILLIGHT

8FA-84516-00-00

—
Out of stock

22

PROTECTOR 3

8FA-77553-00-00

1
Out of stock

23

RIVET, BLIND(8CH)

90267-47187-00

1
Out of stock

24

SCREW, BINDING

90154-06009-00

1
Out of stock

25

LINING, SHROUD 3

8FA-77263-00-00

1
Out of stock

26

LINING, SHROUD 4

8FA-77264-00-00

1
Out of stock

27

LINING, SHROUD 5

8FA-77265-00-00

1
Out of stock

28

LINING, SHROUD 6

8FA-77266-00-00

1
Out of stock

29

LINING, SHROUD 7

8FA-77267-00-00

1
Out of stock

30

LINING, SHROUD 8

8FA-77268-00-00

1
Out of stock

31

EMBLEM, YAMAHA

99241-00160-00

—
Out of stock

32

WASHER 1

8FU-77525-00-00

—
Out of stock
