- RX10K (RX-1) 8FU1 2005
TRACK SUSPENSION 2

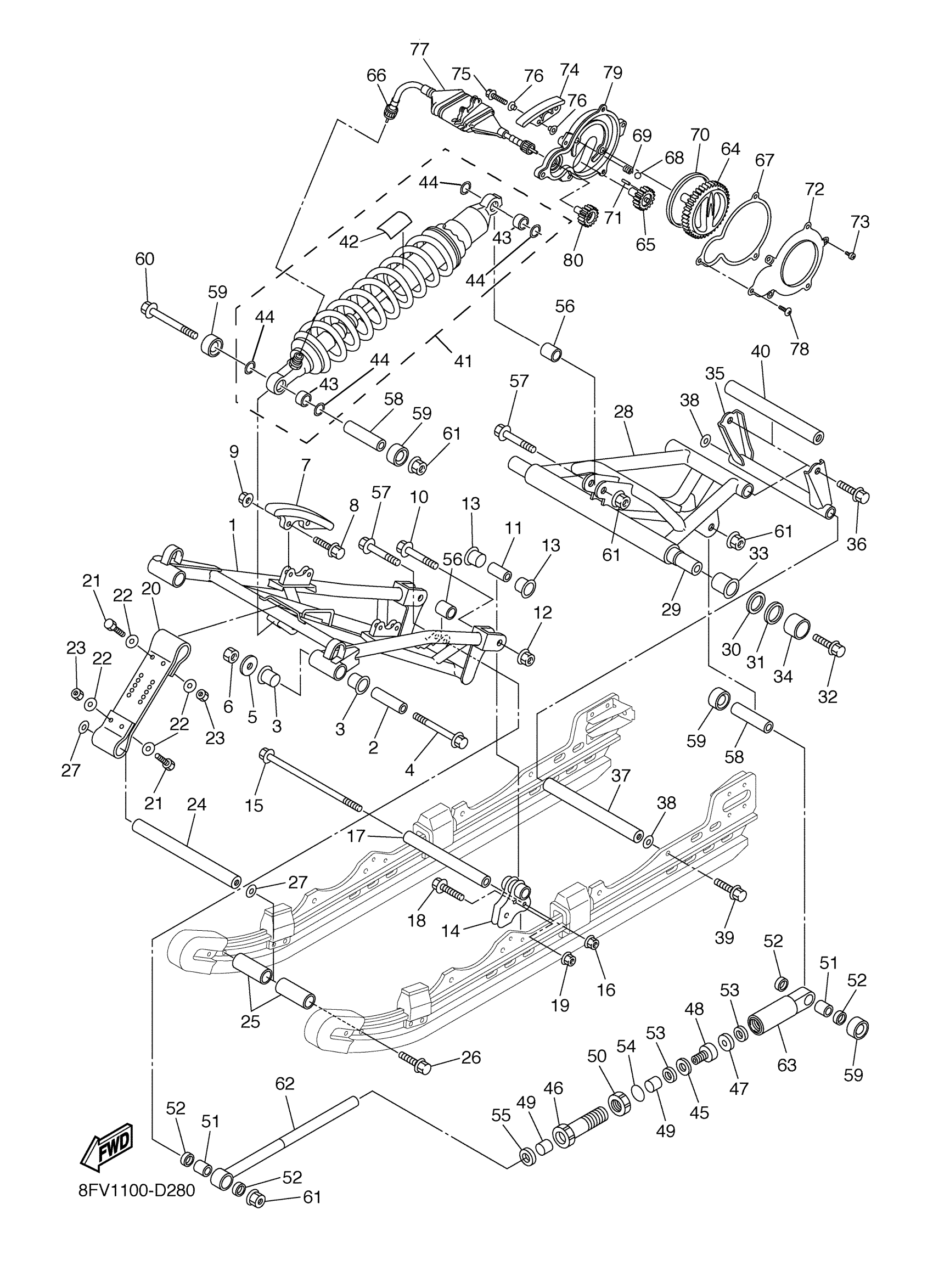

Yamaha RX10K (RX-1) 8FU1 2005 TRACK SUSPENSION 2 Diagram
#
1
ARM, PIVOT 1
99999-03774-00
Unavailable
2
COLLAR
90387-10035-00
Unavailable
3
BUSH
90386-19001-00
$13.99
4
BOLT, WASHER BASED(2GH)
90105-10454-00
$5.60
5
WASHER, PLATE(42X)
90201-105H3-00
$7.49
6
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
$7.49
7
RUNNER, SLIDING 2
8F3-47422-01-00
$18.49
8
BOLT, FLANGE
95817-06020-00
$3.81
9
NUT,SELF-LOCKING
95607-06200-00
$12.49
10
BOLT, FLANGE(87Y)
95817-10055-00
$5.60
11
COLLAR
90387-10033-00
$28.99
12
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
13
BUSH
90386-15001-00
$16.99
14
BRACKET 1
8FU-47415-10-00
Unavailable
15
BOLT, WASHER BASED(51X)
90105-08346-00
$11.49
16
NUT, SELF-LOCKING
90185-08169-00
Unavailable
17
COLLAR
90387-08034-00
Unavailable
18
BOLT, FLANGE(4LN)
95817-08025-00
Unavailable
19
NUT, SELF-LOCKING
90185-08169-00
Unavailable
20
STOPPER 1
8FU-47495-00-00
Unavailable
21
BOLT, HEXAGON
97017-06025-00
Unavailable
22
WASHER, PLATE
90201-06747-00
Unavailable
23
NUT, NYLON
95707-06300-00
Unavailable
24
SHAFT 3
8FU-47485-00-00
Unavailable
25
COLLAR
90387-20024-00
Unavailable
26
BOLT, FLANGE
95817-10030-00
Unavailable
27
WASHER, PLATE (26H)
90201-102G9-00
Unavailable
28
ARM, PIVOT 2
8FU-47332-13-00
Unavailable
29
SHAFT 2
8FU-47475-00-00
Unavailable
30
WASHER, PLATE (8V2)
90201-251G8-00
Unavailable
31
WASHER, PLATE(8CJ)
90201-250T6-00
Unavailable
32
BOLT (8V0)
90109-10771-00
Unavailable
33
BUSH, SOLID(8CJ)
90381-28108-00
Unavailable
34
COLLAR
90387-25005-00
Unavailable
35
BRACKET 3
8FU-47417-11-00
Unavailable
36
BOLT, FLANGE
95817-10030-00
Unavailable
37
SHAFT 3
8FU-47485-00-00
Unavailable
38
WASHER PLATE (789)
90201-10136-00
Unavailable
39
BOLT, FLANGE
95817-10030-00
Unavailable
40
SHAFT 4
8FU-47486-00-00
Unavailable
41
SHOCK ABSORBER
8FU-47480-00-00
Unavailable
42
LABEL, WARNING
4AA-22259-60-00
Unavailable
43
BEARING
93315-31758-00
Unavailable
44
. OIL SEAL
93109-17071
Unavailable
45
WASHER, PLATE(8CJ)
90202-16229-00
Unavailable
46
ROD, CONTROL 2
8FU-4745B-00-00
Unavailable
47
WASHER (L=7.5)
8FU-47384-00-00
Unavailable
47
WASHER (L=5.0)
8FU-47384-10-00
Unavailable
47
WASHER
8FU-47384-20-00
Unavailable
48
STOPPER, CONT. 1
8FU-4745D-00-00
Unavailable
49
BUSH, BIMETAL FORMED(8CJ)
90384-16251-00
Unavailable
50
NUT
8JA-47368-00-00
Unavailable
51
BEARING
93315-31758-00
Unavailable
52
OIL SEAL
93109-17071-00
Unavailable
53
SPACER
8FU-47466-00-00
Unavailable
54
O-RING
93210-347A6-00
Unavailable
55
SEAL, TRIM DUST
C68-43822-00-00
Unavailable
56
COLLAR
90387-1012A-00
Unavailable
57
BOLT, FLANGE(4GB)
95817-10045-00
Unavailable
58
COLLAR
90387-10034-00
Unavailable
59
SPACER
8FU-47341-00-00
Unavailable
60
BOLT, FLANGE(7LU)
95817-10070-00
Unavailable
61
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
62
ROD, CONTROL 1
8FU-4745A-00-00
Unavailable
63
ROD, CONTROL 3
8FU-4745C-10-00
Unavailable
64
HANDLE, ADJUSTER
8FU-474A3-00-00
Unavailable
65
GEAR, STOPPER
8FU-474A4-00-00
Unavailable
66
CABLE, ADJUSTER
8FU-474A5-00-00
Unavailable
67
GASKET, ADJUSTER HOUSING
8FU-474A6-01-00
Unavailable
68
BALL
93501-04011-00
Unavailable
69
SPRING, COMPRESSION
90501-06M35-00
Unavailable
70
SEAL, ADJUSTER HANDLE
8FU-474A7-00-00
Unavailable
71
PIN,DOWEL (603)
93603-12007-00
Unavailable
72
PLATE, GUIDE
8FU-47467-00-00
Unavailable
73
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
74
SLIDER 1
8FU-47441-11-00
Unavailable
75
BOLT, FLANGE
95817-06020-00
$3.81
76
COLLAR (3L1)
90387-07717-00
Unavailable
77
PROTECTOR
8FU-47445-01-00
Unavailable
78
SCREW(3LD)
90149-06280-00
Unavailable
79
HOUSING, ADJUSTER
8FU-474A1-00-00
Unavailable
80
GEAR, DRIVE
8FU-474A2-00-00
Unavailable
