RADIATOR HOSE

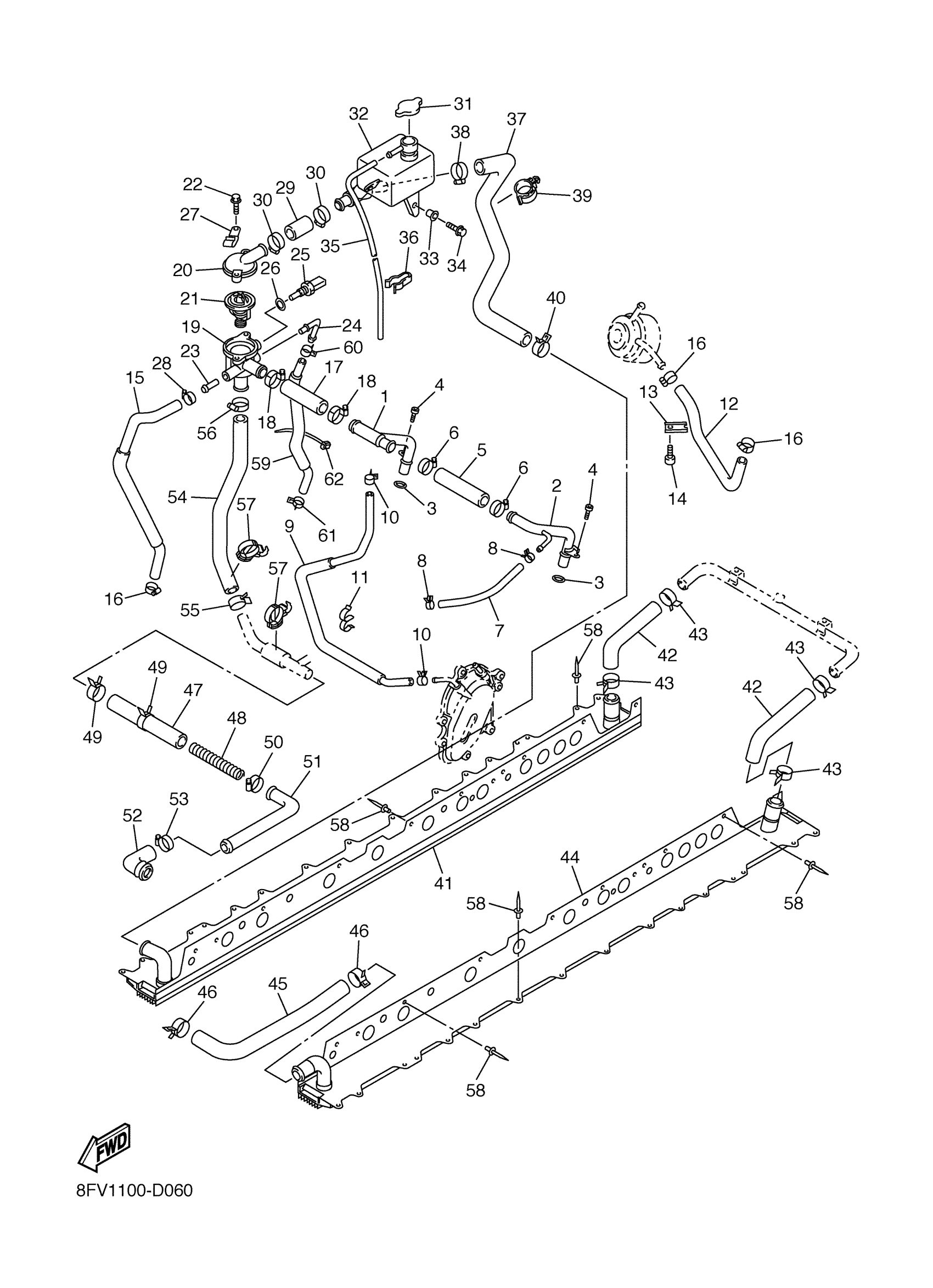

Yamaha RX10K (RX-1) 8FU1 2005 RADIATOR HOSE Diagram
#
1
PIPE 2
8FA-12482-01-00
Unavailable
2
PIPE 3
8FA-12483-01-00
Unavailable
3
O-RING (716)
93210-18417-00
$7.49
4
BOLT,SOCKET
91317-06016-00
$1.25
5
HOSE 1
8FA-1243A-00-00
Unavailable
6
HOSE CLAMP ASSY
90450-28001-00
$14.99
7
HOSE,3
5FL-1243F-00-00
Unavailable
8
CLIP(3BM)
90467-10135-00
$8.49
9
HOSE 3
8FA-12578-00-00
Unavailable
10
CLIP(3BM)
90467-10135-00
$8.49
11
CLAMP(4TX)
90464-12238-00
$2.02
12
HOSE 5
8FA-12588-00-00
Unavailable
13
CLAMP 1
8FA-12491-00-00
Unavailable
14
BOLT,SOCKET
91317-06012-00
$8.49
15
HOSE 6
8FA-12589-01-00
Unavailable
16
HOSE CLAMP ASSY
90450-18M09-00
Unavailable
17
HOSE 2
8FA-1243E-00-00
Unavailable
18
HOSE CLAMP ASSY
90450-35001-00
Unavailable
19
HOUSING, THERMOSTA
8FA-W1258-02-00
Unavailable
20
COVER, THERMOSTAT
5EB-12413-00-00
Unavailable
21
THERMOSTAT ASSY
8FA-12410-00-00
Unavailable
22
. BOLT, FLANGE
95027-06020-00
Unavailable
23
JOINT, HOSE 3
8FA-12584-00-00
Unavailable
24
JOINT, HOSE 4
8FA-12594-00-00
Unavailable
25
THERMOSENSOR ASSY
8CC-85790-01-00
Unavailable
26
WASHER, PLATE
90201-12790-00
Unavailable
27
. CLAMP
90465-06M28-00
Unavailable
28
HOSE CLAMP ASSY
90450-18M09-00
Unavailable
29
HOSE,3
8FA-1243F-00-00
Unavailable
30
HOSE CLAMP ASSY
90450-35001-00
Unavailable
31
CAP, RADIATOR
4FL-12462-00-00
Unavailable
32
TANK, RESERVE
8FA-1249B-02-00
Unavailable
33
COLLAR (838-84757-00)
90387-06024-00
Unavailable
34
BOLT, FLANGE
95817-06020-00
Unavailable
35
HOSE (L600)
90445-083J5-00
Unavailable
36
CLAMP(53Y)
90464-15065-00
Unavailable
37
HOSE, 4
8FA-1244G-01-00
Unavailable
38
HOSE CLAMP ASSY
90450-35001-00
Unavailable
39
CLAMP
90464-32002-00
Unavailable
40
CLIP (8M6)
90467-28046-00
Unavailable
41
HEAT EXCHANGER
8FU-1240F-01-00
Unavailable
42
PIPE 6
8FA-12476-00-00
Unavailable
43
CLIP (8M6)
90467-28046-00
Unavailable
44
HEAT EXCHANGER
8FU-1240E-01-00
Unavailable
45
PIPE 7
8FA-12477-00-00
Unavailable
46
CLIP (8M6)
90467-28046-00
Unavailable
47
PIPE 8
8FA-1248A-00-00
Unavailable
48
SPRING, COMPRESSION
90501-12002-00
Unavailable
49
CLIP (8M6)
90467-28046-00
Unavailable
50
HOSE CLAMP ASSY
90450-35001-00
Unavailable
51
PIPE, WATER
8FA-12564-00-00
Unavailable
52
JOINT
99999-03536-00
Unavailable
53
HOSE CLAMP ASSY
90450-35001-00
Unavailable
54
PIPE 9
8FA-1248E-01-00
Unavailable
55
CLIP (8M6)
90467-28046-00
Unavailable
56
HOSE CLAMP ASSY
90450-35001-00
Unavailable
57
CLAMP
90464-36001-00
Unavailable
58
RIVET, BLIND
90267-47195-00
Unavailable
59
HOSE 4
8FA-12579-00-00
Unavailable
60
CLIP(3BM)
90467-10135-00
$8.49
61
CLIP (7K7)
90467-11044-00
Unavailable
62
CLAMP(4FM)
90464-15195-00
Unavailable
