2017 Yamaha Apex (RX10HL) Valve Diagram

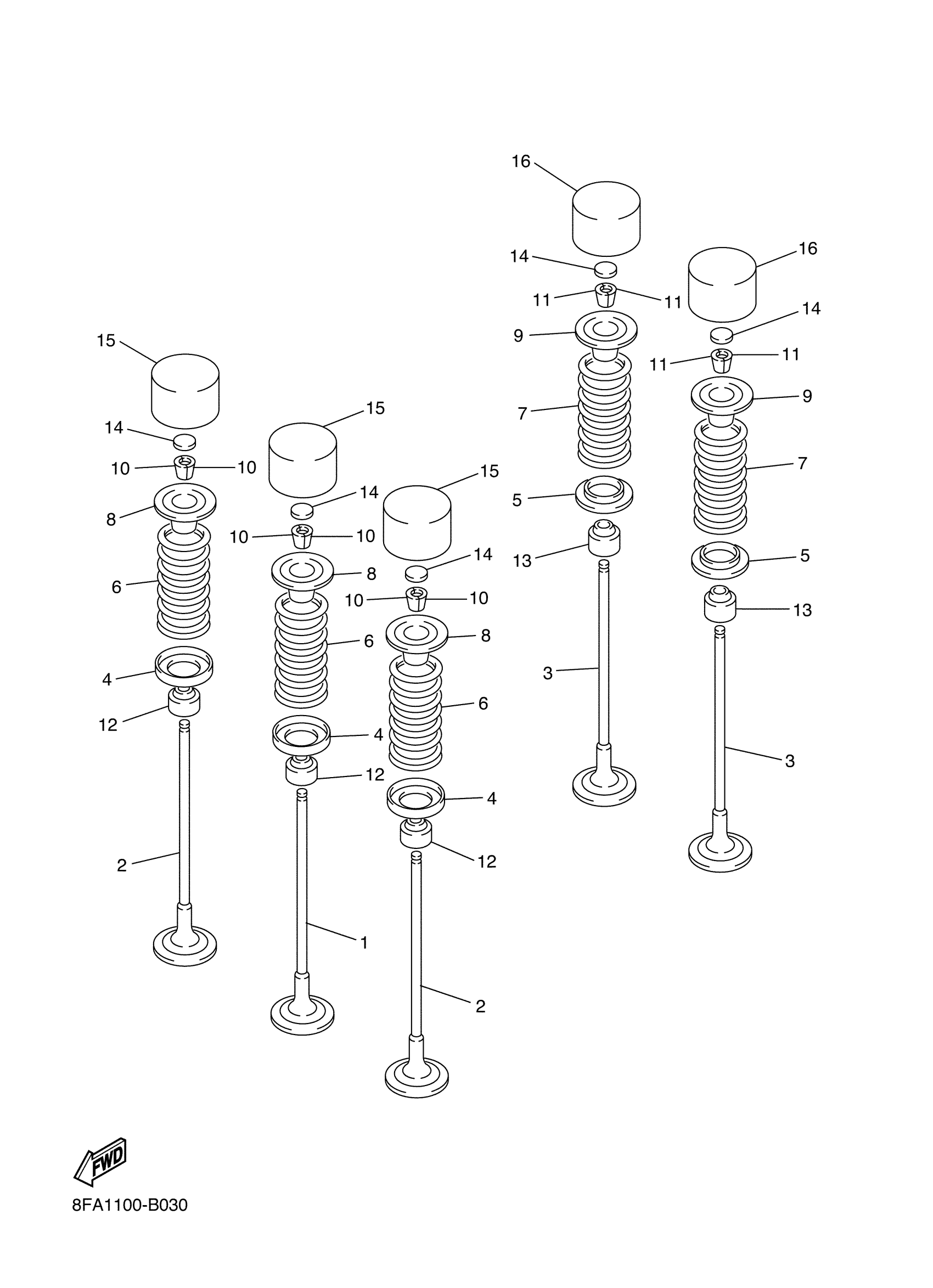

Find the part on the Valve diagram for your 2017 Yamaha Apex (RX10HL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
3
VALVE, EXHAUST
5LV-12121-00-00
1
Out of stock
4
SEAT, VALVE SPRING
1HX-12116-01-00
1
Out of stock
8
RETAINER, VALVE SPRING
1HX-12117-00-00
—
Out of stock
9
RETAINER, VALVE SPRING
1WG-12117-00-00
—
Out of stock
10
COTTER, VALVE
1HX-12118-00-00
1
Out of stock
12
SEAL, VALVE STEM
4TV-12119-00-00
1
Out of stock
15
LIFTER, VALVE (O/S, 0.006)
3LN-12153-09-00
—
Out of stock
15
LIFTER, VALVE
3LN-12153-10-00
—
Out of stock
16
LIFTER, VALVE (O/S, 0.006)
3FV-12153-09-00
—
Out of stock
