2017 Yamaha Apex (RX10HL) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2017 Yamaha Apex (RX10HL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

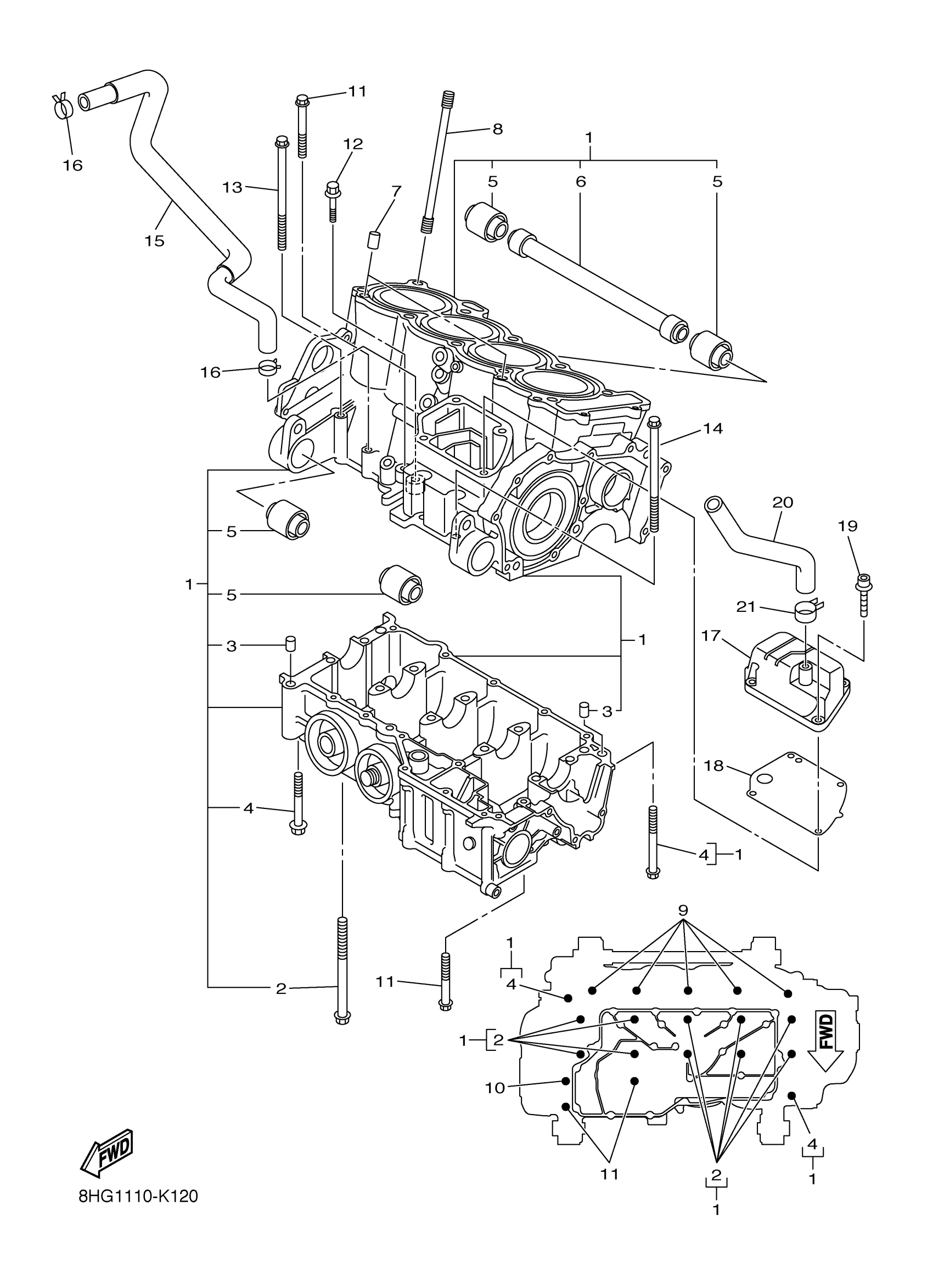

2017 Yamaha Apex (RX10HL) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

8FP-15100-08-00

—

$2,789.99

In stock

2

BOLT, WITH WASHER

90119-09004-00

1

$9.17

In stock

3

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

4

BOLT

90109-06100-00

1

$7.60

In stock

5

DAMPER

8FA-2139X-00-00

—

$38.35

In stock

6

SPACER

8FA-21459-00-00

—

$23.69

In stock

7

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

8

BOLT, STUD

90116-10619-00

1
Out of stock

9

BOLT, FLANGE

95812-06055-00

1

$1.46

In stock

10

BOLT, FLANGE

95817-06025-00

—

$1.46

In stock

11

BOLT, FLANGE

95817-06045-00

1

$6.18

In stock

12

BOLT, FLANGE

95817-06045-00

1

$6.18

In stock

13

BOLT, FLANGE

95812-06080-00

1

$6.32

In stock

14

BOLT, FLANGE

95812-06090-00

1

$2.85

In stock

15

PIPE, BREATHER 1

8FP-11166-00-00

—

$53.78

In stock

16

CLIP (4V3)

90467-20050-00

—

$3.25

In stock

17

COVER

8FP-15413-00-00

—

$111.80

In stock

18

GASKET, CRANKCASE COVER 3

8FP-15462-01-00

—

$6.48

In stock

19

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

—

$7.45

In stock

20

PIPE, BREATHER 2

8FP-11167-00-00

—

$22.60

In stock

21

CLIP

90467-220A0-00

—

$6.68

In stock
