- RX10GTZL (APEX GT) 8GDA 2010
TRACK SUSPENSION 2

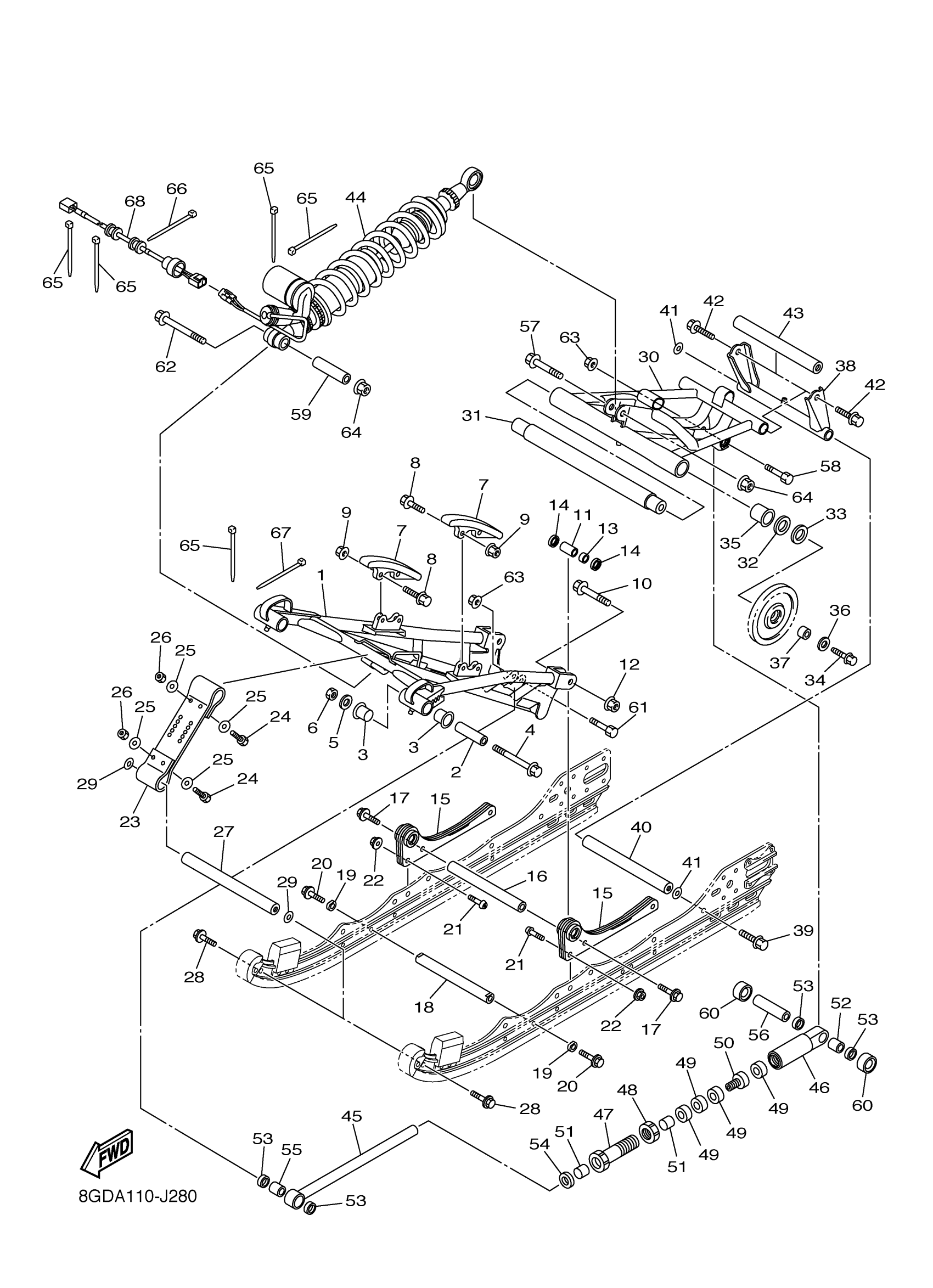

Yamaha RX10GTZL (APEX GT) 8GDA 2010 TRACK SUSPENSION 2 Diagram
#
1
ARM, PIVOT 1
8JA-47331-00-00
Unavailable
2
COLLAR
90387-10042-00
$21.99
3
BUSH
90386-22002-00
$21.99
4
BOLT, FLANGE
90105-10150-00
$12.49
5
WASHER, PLATE
90201-10038-00
$5.60
6
NUT, SELF-LOCKING
90185-10012-00
$9.49
7
RUNNER, SLIDING 2
8F3-47422-01-00
$18.49
8
BOLT, FLANGE
95817-06020-00
$3.81
9
NUT, U FLANGE
95604-06200-00
$8.49
10
BOLT, FLANGE
90105-10091-00
$5.60
11
COLLAR
90387-10095-00
$19.99
12
NUT, SELF-LOCKING
90185-10011-00
$5.60
13
BEARING, CYLINDRICAL(4PT)
93315-31750-00
$37.99
14
OIL SEAL
93109-17071-00
$7.49
15
BRACKET 1
8JA-47415-00-00
$225.99
16
SHAFT 4
8JA-47486-00-00
Unavailable
17
BOLT, FLANGE
90105-10158-00
Unavailable
18
SHAFT 4
8GL-47486-00-00
Unavailable
19
SPACER
8GL-47341-00-00
Unavailable
20
BOLT, FLANGE
95817-10030-00
Unavailable
21
BOLT,HEX. SOCKET BUTTON
90111-10046-00
Unavailable
22
NUT, S/L FLANGE
95602-10200-00
Unavailable
23
STOPPER 1
8GM-47495-00-00
Unavailable
24
BOLT, HEXAGON
97017-06025-00
Unavailable
25
WASHER, PLATE
90201-06081-00
Unavailable
26
NUT, NYLON
95707-06300-00
Unavailable
27
SHAFT 3
8FU-47485-00-00
Unavailable
28
BOLT, FLANGE
95817-10030-00
Unavailable
29
WASHER, PLATE (26H)
90201-102G9-00
Unavailable
30
ARM, PIVOT 2
8JA-47332-01-00
Unavailable
31
SHAFT 2
8FU-47475-00-00
Unavailable
32
WASHER, PLATE (8V2)
90201-251G8-00
Unavailable
33
WASHER, PLATE(8CJ)
90201-250T6-00
Unavailable
34
BOLT
90109-10032-00
Unavailable
35
BUSH, SOLID(8CJ)
90381-28108-00
Unavailable
36
WASHER, PLATE
90201-10039-00
Unavailable
37
COLLAR
90387-25005-00
Unavailable
38
BRACKET 3
8FU-47417-11-00
Unavailable
39
BOLT, FLANGE
95817-10030-00
Unavailable
40
SHAFT 3
8FU-47485-00-00
Unavailable
41
WASHER PLATE (789)
90201-10136-00
Unavailable
42
BOLT, FLANGE
95817-10030-00
Unavailable
43
SHAFT 4
8FU-47486-00-00
Unavailable
44
SHOCK ABSORBER
8GD-47480-50-00
Unavailable
45
ROD, CONTROL 1
8JA-4745A-00-00
Unavailable
46
ROD, CONTROL 3
8JA-4745C-00-00
Unavailable
47
ROD, CONTROL 2
8JA-4745B-00-00
Unavailable
48
NUT
8JA-47368-00-00
Unavailable
49
WASHER
8GM-47384-10-00
Unavailable
50
STOPPER, CONT. 1
8FU-4745D-00-00
Unavailable
51
BUSH, BIMETAL FORMED(8CJ)
90384-16251-00
Unavailable
52
BEARING, CYLINDRICAL(1FN)
93315-31841-00
Unavailable
53
OIL SEAL
93109-18001-00
Unavailable
54
SEAL, TRIM DUST
C68-43822-00-00
Unavailable
55
COLLAR
90387-12051-00
Unavailable
56
COLLAR
90387-12052-00
Unavailable
57
BOLT, FLANGE (8V9)
95812-10045-00
Unavailable
58
BOLT
90101-12043-00
Unavailable
59
COLLAR
90387-10034-00
Unavailable
60
SPACER
8JA-47341-00-00
Unavailable
61
BOLT
90101-12042-00
Unavailable
62
BOLT, FLANGE(7LU)
95817-10070-00
Unavailable
63
NUT, SELF-LOCKING
90185-12007-00
Unavailable
64
NUT, S/L FLANGE
95602-10200-00
Unavailable
65
BAND
1UA-82591-00-00
Unavailable
66
CLAMP(3XW)
90464-35132-00
Unavailable
67
CLAMP
90464-80001-00
Unavailable
68
WIRE, SUB LEAD
8GD-82509-01-00
Unavailable
