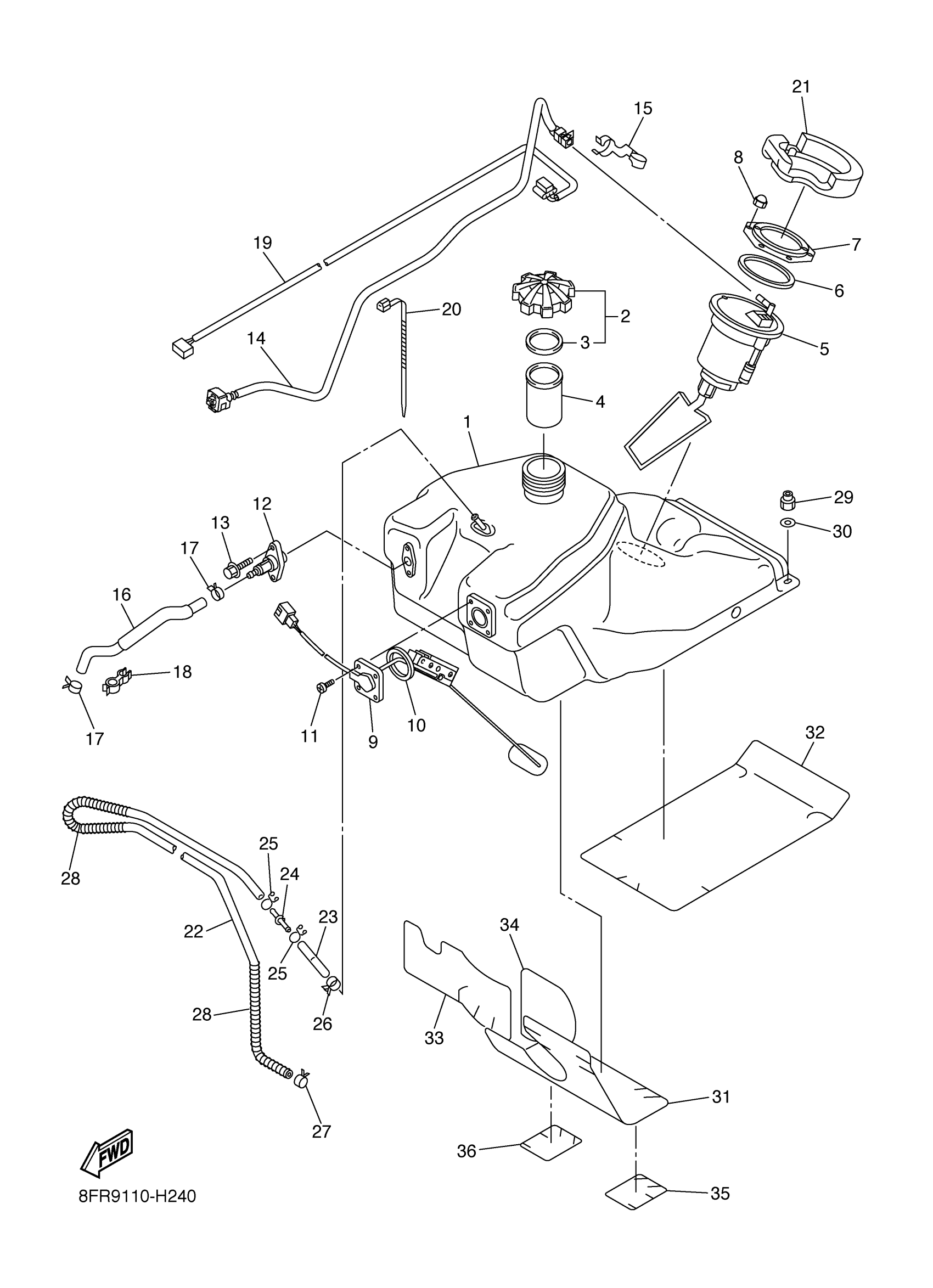

Yamaha RX10GTZL (APEX GT) 8GDA 2010 FUEL TANK Diagram
#
1
TANK, FUEL
8FR-24111-01-00
Unavailable
3
GASKET, CAP 1
8HV-24641-00-00
Unavailable
4
TUBE, FILLER
8FP-24114-00-00
Unavailable
5
FUEL PUMP COMP.
8FP-13907-02-00
Unavailable
7
BRACKET, FUEL PUMP
8FP-24491-00-00
Unavailable
9
SENDER UNIT ASSY, FUEL METER
8HF-85752-00-00
Unavailable
14
PIPE, FUEL 1
8FR-24311-10-00
Unavailable
16
PIPE 2
8FR-24312-00-00
Unavailable
17
CLIP(3YX)
90467-13133-00
Unavailable
18
CLIP(J38)
90468-80181-00
Unavailable
19
WIRE, SUB LEAD
8FP-82309-01-00
Unavailable
20
CLAMP
90464-13077-00
Unavailable
21
DAMPER, LOCATING 1
8FP-24181-01-00
Unavailable
22
TUBE, FLEXIBLE VINYL
91A20-05110-00
Unavailable
23
PIPE, JOINT
8FR-24461-00-00
Unavailable
24
PIPE, JOINT
8H8-24376-00-00
Unavailable
25
CLIP (8L2)
90467-08017-00
Unavailable
26
CLIP (8A1)
90467-09026-00
Unavailable
27
CLIP (8A1)
90467-09026-00
Unavailable
28
SPRING, COMPRESSION (10L)
90501-08668-00
Unavailable
29
NUT, NYLON
95717-08300-00
Unavailable
30
WASHER, PLATE
90201-08053-00
Unavailable
31
PROTECTOR, FUEL TANK
8FP-24141-00-00
Unavailable
32
PROTECTOR, FUEL TANK
8FA-24141-10-00
Unavailable
33
INSULATOR, FUEL TANK 1
8FP-2416F-00-00
Unavailable
34
INSULATOR, FUEL TANK 1
8FP-2416F-10-00
Unavailable
35
INSULATOR, FUEL TANK 1
8HF-2416F-00-00
Unavailable
36
INSULATOR, FUEL TANK 2
8HF-2416G-00-00
Unavailable
