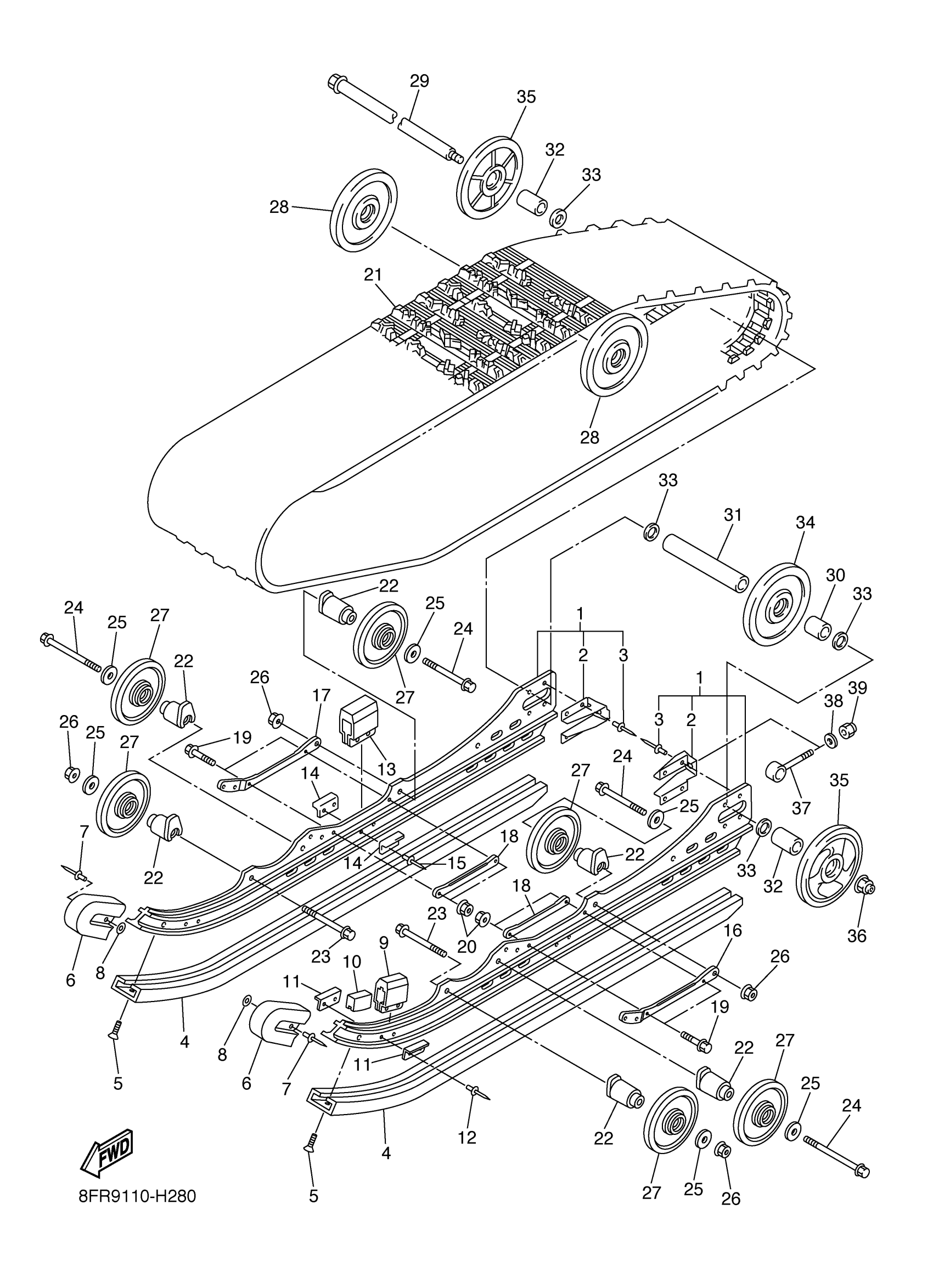

Yamaha RX10GTYL (APEX GT) 8GD9 2009 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

FRAME, SLIDING

8FU-W4741-10-00

Unavailable

2

BRACKET

8DM-4741B-00-00

$39.86

3

RIVET

8V0-47468-00-00

$7.54

4

SLIDE RUNNER BLK 136''

SMA-8FT92-00-BK

$27.82

5

SCREW, CROSSRECESS (8G6)

90151-06005-00

$7.18

6

RUNNER, SLIDING 2

8ED-47422-00-00

$42.54

7

RIVET BLIND

90267-48194-00

$2.20

8

WASHER, PLATE(8CM)

90201-047R8-00

$2.31

9

DAMPER 2

8AC-47457-00-00

$15.03

10

SPACER

8FR-47341-00-00

$9.88

11

PLATE, DAMPER

8AX-47458-00-00

$8.08

12

RIVET, BLIND

90267-48199-00

$2.62

13

DAMPER 2

8FP-47457-00-00

Unavailable

14

PLATE, DAMPER

8AX-47458-00-00

$8.08

15

RIVET, BLIND

90267-48199-00

$2.62

16

FRAME, SLIDING C

8FP-4741C-00-00

$130.80

17

FRAME, SLIDING D

8FP-4741D-00-00

$130.80

18

FRAME, SLIDING E

8FP-4741E-00-00

$83.22

19

BOLT, FLANGE

95812-06030-00

$1.66

20

NUT, U FLANGE

95604-06200-00

$2.35

21

TRACK ASSY

8FA-47110-10-00

Unavailable

22

BRACKET 7

8ES-47419-20-00

$23.86

23

BOLT, WASHER BASED(4HM)

90105-10737-00

$9.82

24

BOLT, WASHER BASED(3FA)

90105-10727-00

$5.02

25

WASHER, PLATE(42X)

90201-105H3-00

$5.68

26

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

27

SUSPENSION WHEEL ASSY

8ET-47310-00-00

$76.81

28

GUIDE WHEEL ASSY

8CR-47550-00-00

$22.15

29

REAR AXLE COMP.

8L8-47520-10-00

$67.31

30

COLLAR

90387-20015-00

$23.32

31

COLLAR

90387-20016-00

$20.42

32

COLLAR

90387-20019-00

$22.38

33

WASHER, PLATE(89W)

90201-205R6-00

$10.68

34

GUIDE WHEEL ASSY

8CR-47550-10-00

Unavailable

35

WEIGHT

8EK-47550-11-00

Unavailable

36

NUT, SELF-LOCKING (8BF)

95607-14200-00

$10.17

37

COLLAR 3

8DM-47479-00-00

$15.04

38

WASHER, PLATE

92990-10600-00

$2.61

39

NUT, NYLON

95707-10300-00

$6.68
