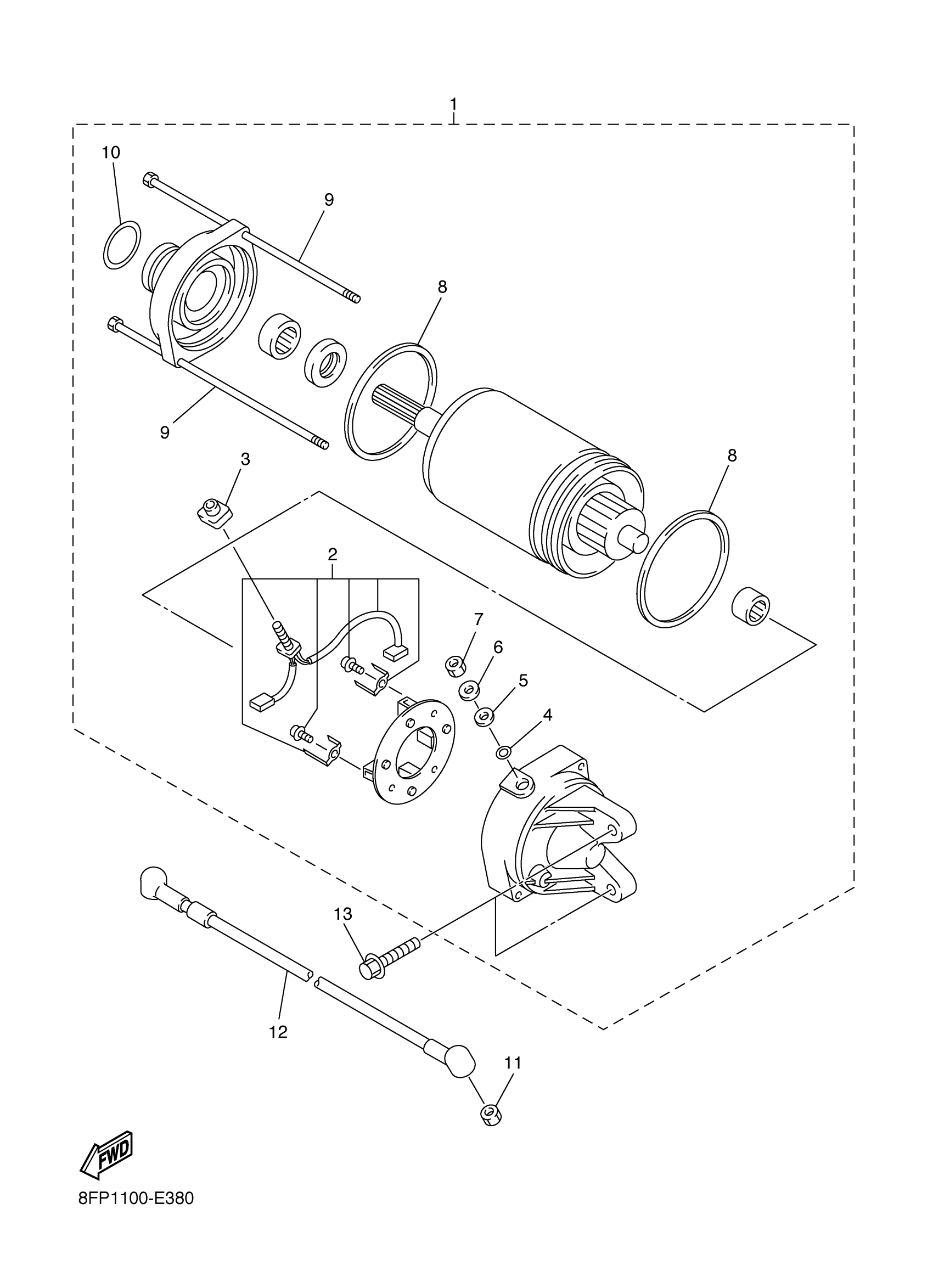

Yamaha RX10GTYL (APEX GT) 8GD9 2009 STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY

8HG-81890-00-00

$905.99

2

BRUSH SET

1D7-81801-00-00

$68.17

3

BUSH, TERMINAL

5PX-8182G-00-00

$6.32

4

O-RING (26H)

93210-06632-00

$6.68

5

WASHER, PLAIN

8FA-8181L-00-00

$4.11

6

WASHER, PLATE (8H9)

90201-06726-00

Unavailable

7

NUT(650)

95380-06700-00

$6.17

8

GASKET

5PX-81861-00-00

$10.26

9

SCREW

8FA-81846-00-00

$5.40

10

O-RING (437)

93210-24235-00

$5.72

11

NUT(650)

95380-06700-00

$6.17

12

CORD COMP.

8FA-8183G-00-00

Unavailable

13

BOLT, FLANGE

95812-08030-00

$3.25
