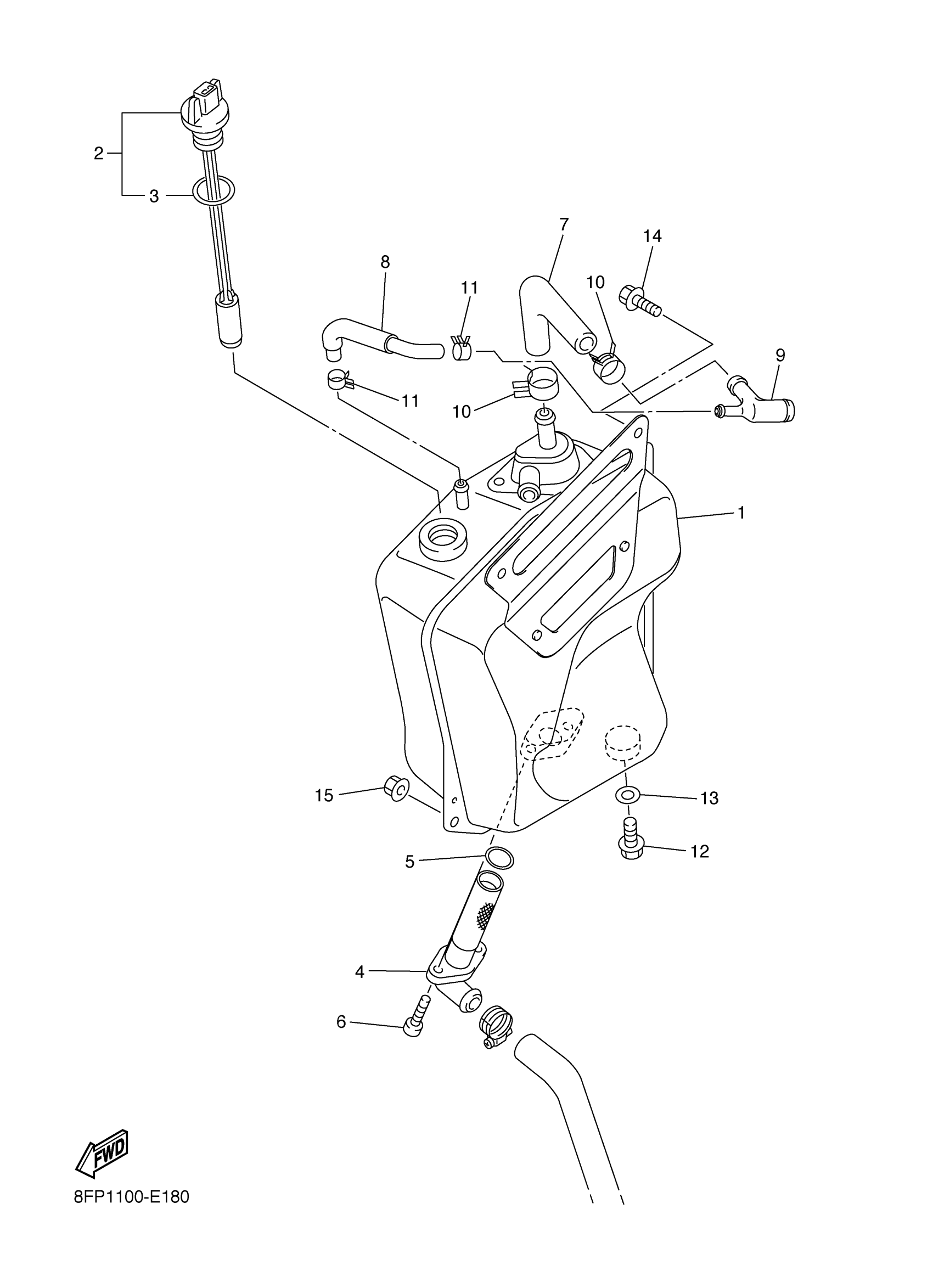

Yamaha RX10GTYL (APEX GT) 8GD9 2009 OIL TANK Diagram

#

Description
Price

1

TANK, OIL

8FG-21751-02-00

$541.17

2

OIL LEVEL GAUGE ASSY

8FA-85720-01-00

$81.05

3

O-RING

8FP-85075-00-00

$8.25

4

OIL PIPE COMP. 2

8FG-13406-00-00

$60.89

5

O-RING (603)

93210-19026-00

$6.68

6

BOLT(3MA)

91312-06016-00

$4.89

7

PIPE, OIL TANK BREATHER

8FA-21745-00-00

$11.78

8

PIPE, OIL TANK

8FA-2174N-01-00

Unavailable

9

CONNECTOR

8FG-13446-00-00

$48.49

10

CLIP

90468-08104-00

$2.72

11

CLIP (7K7)

90467-11044-00

$5.10

12

BOLT, FLANGE

95817-08012-00

$3.98

13

GASKET(3AJ)

90430-08204-00

$6.36

14

BOLT, FLANGE

95817-06016-00

$1.49

15

NUT, SELF-LOCKING

95602-08200-00

$2.77
