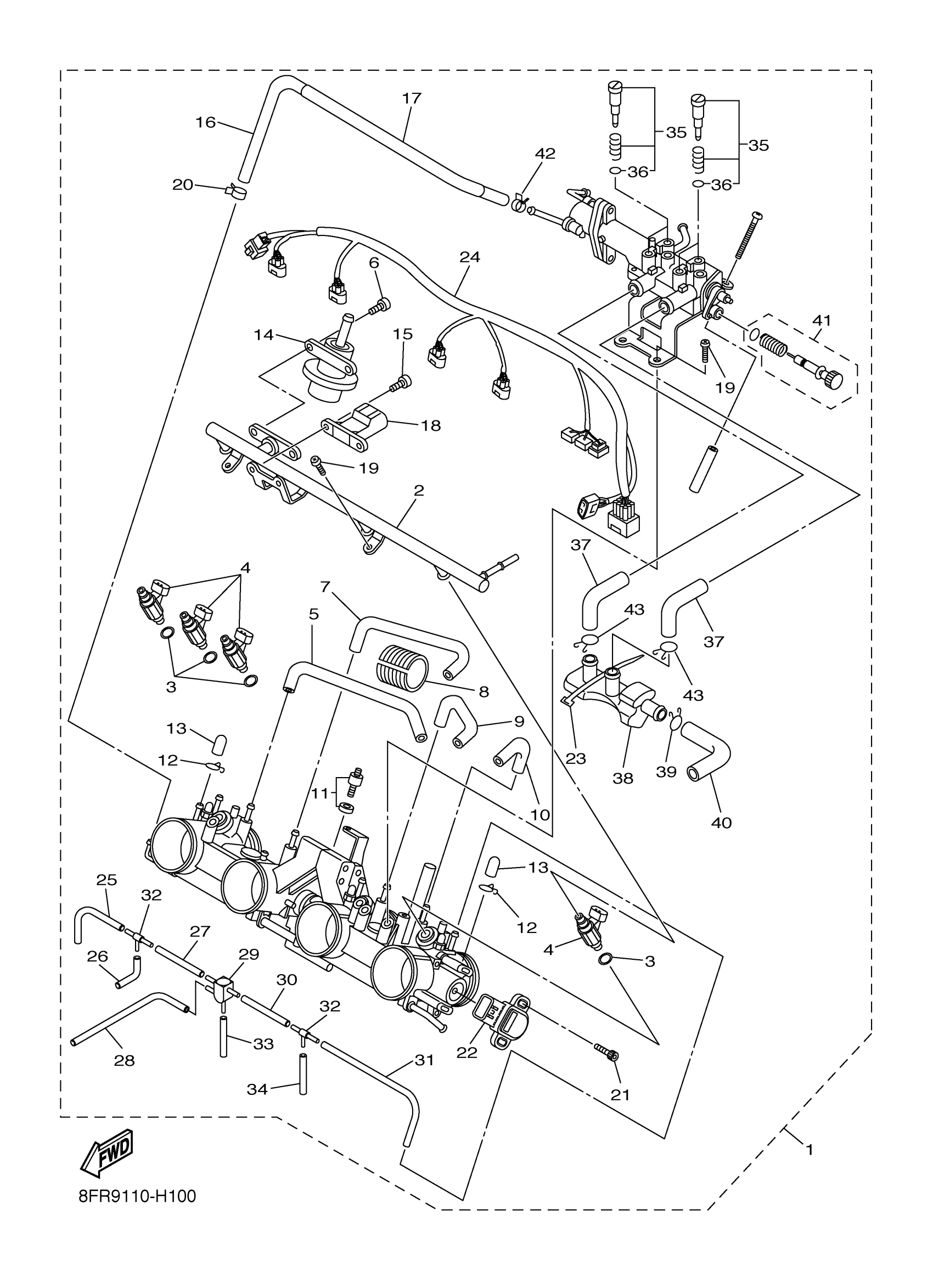

Yamaha RX10GTYL (APEX GT) 8GD9 2009 INTAKE 2 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

8FP-13750-10-00

Unavailable

2

PIPE

8FP-13938-00-00

$491.99

3

GASKET, MANIFOLD

8FP-13556-00-00

$12.27

4

INJECTOR

8FP-13761-10-00

$236.11

5

HOSE

8FP-14987-00-00

$30.11

6

GASKET, EXHAUST

98507-05008-00

$2.69

7

HOSE

8FP-14987-10-00

$30.11

8

PIPE

8FP-14396-00-00

$9.75

9

HOSE

8FP-14987-20-00

$24.95

10

HOSE

8FP-14987-30-00

$13.17

11

THROTTLE SCREW SET

5JW-14103-10-00

$60.49

12

CLIP, PIPE

8A7-14139-00-00

$6.80

13

CAP

895-14169-00-00

$4.02

14

REGULATOR, PRESSURE

8FP-13906-00-00

$118.11

15

SCREW, PAN

98507-06010-00

$2.69

16

. PIPE 1

8FP-14348-00-00

Unavailable

17

PIPE 1

8FP-14348-10-00

Unavailable

18

SENSOR, PRESSURE

5PS-82380-00-00

$285.54

19

SCREW, PAN

98517-06012-00

$3.14

20

CLIP

90467-11028-00

$5.14

21

SCREW

8CC-14216-10-00

$7.12

22

THROTTLE SENSOR AS

8GL-85885-01-00

$76.17

23

CLIP

4KM-14137-00-00

$5.26

24

EXTENSION, WIRE HARNESS

8FP-82386-01-00

Unavailable

25

PIPE 1

5JW-14348-00-00

$18.31

26

PIPE

8FP-14349-00-00

$9.80

27

HOSE

5PS-14987-00-00

$6.00

28

PIPE

8FP-14349-10-00

Unavailable

29

CONNECTOR

5PW-1410F-00-00

$17.45

30

PIPE

8FP-14349-20-00

$4.92

31

HOSE

5JW-14987-00-00

$14.80

32

. PIPE, JOINT 1

68V-24376-00-00

$15.04

33

PIPE 1

5FL-14348-10-00

$4.00

34

PIPE

8FP-14349-30-00

$4.15

35

AIR SCREW SET

5JW-14104-00-00

$14.51

36

O-RING, PILOT SCREW

3H1-14147-00-00

$7.51

37

. PIPE

8FP-14148-00-00

Unavailable

38

JOINT

8FP-14454-00-00

$32.32

39

CLIP (21V)

90467-22080-00

$6.17

40

PIPE

8FP-14149-00-00

$14.92

41

ADJUST SCREW SET

8FP-14503-00-00

Unavailable

42

CLIP

8FP-13577-00-00

Unavailable

43

CLIP

8FP-14137-00-00

$4.68
