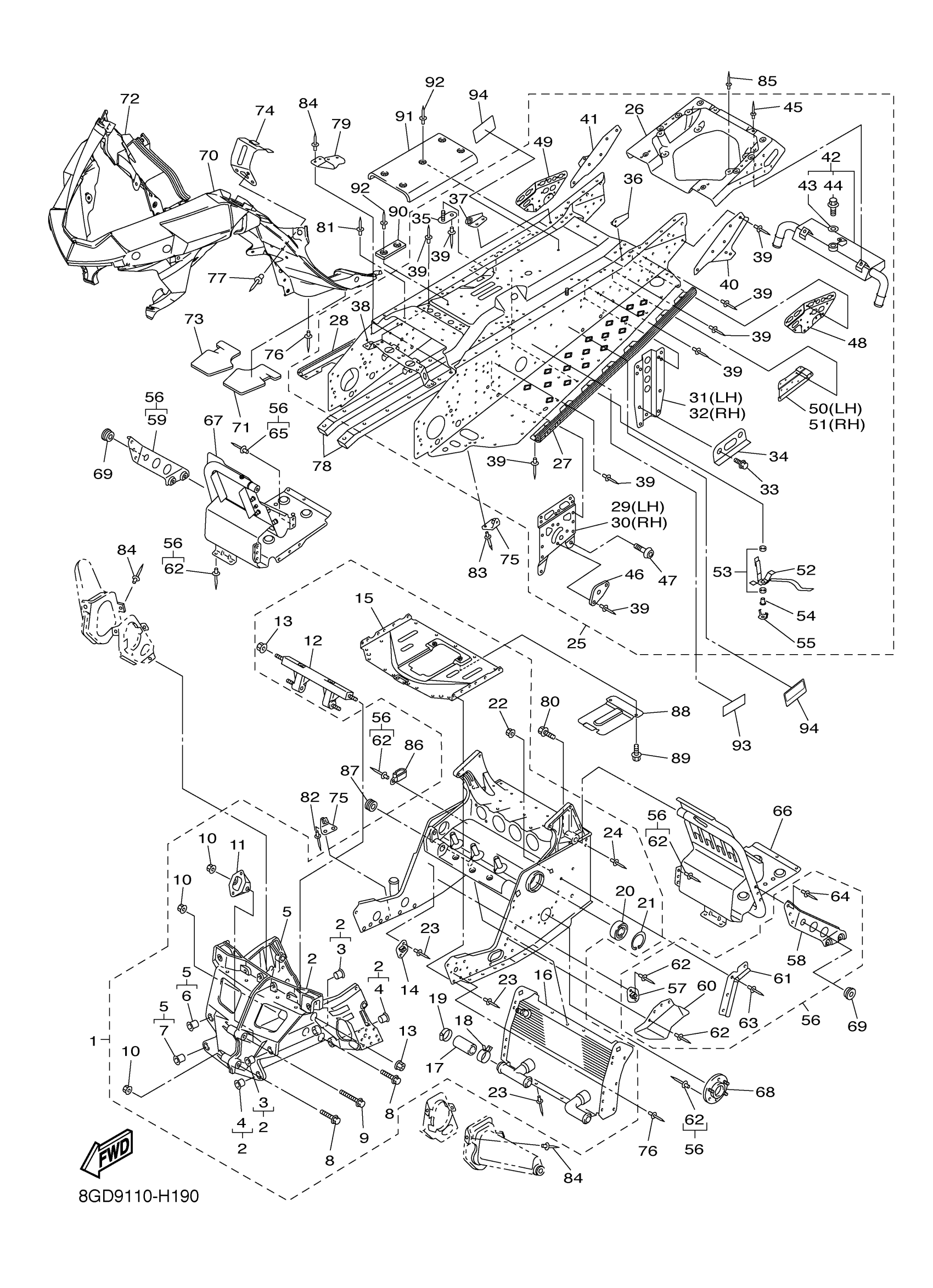

Yamaha RX10GTYL (APEX GT) 8GD9 2009 FRAME Diagram
#
1
FRONT FRAME COMP.
8FR-21940-00-00
Unavailable
2
BULKHEAD
8FA-W2197-13-00
$721.99
3
BUSH, SOLID
90381-15001-00
$5.60
4
BUSH, SOLID
90381-16004-00
$16.99
5
BULKHEAD 2
8FA-W2198-20-00
Unavailable
6
BUSH, SOLID
90381-15001-00
$5.60
7
BUSH, SOLID
90381-16004-00
$16.99
8
BOLT, FLANGE
95817-08060-00
$3.76
9
BOLT, WASHER BASED
90105-084A1-00
$10.49
10
NUT, SELF-LOCKING
90185-08169-00
$8.49
11
BRACKET, REGULATOR
8FA-2128A-01-00
Unavailable
12
BRACKET, STEERING 1
8FG-21947-00-00
$180.99
13
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
14
BRACKET, CHAIN HOUSING
8CR-21939-01-00
$5.49
15
PROTECTOR
8FR-2193A-01-00
Unavailable
16
HEAT EXCHANGER ASSY
8FA-12440-00-00
Unavailable
17
HOSE 7
8FA-12551-00-00
Unavailable
18
CLIP (8M6)
90467-28046-00
Unavailable
19
HOSE CLAMP ASSY
90450-35001-00
Unavailable
20
BEARING
93306-20650-00
Unavailable
21
CIRCLIP(MF1)
99009-62500-00
Unavailable
22
NUT, SELF-LOCKING
90185-08169-00
$8.49
23
RIVET, BLIND
90267-47195-00
Unavailable
24
RIVET, BLIND
90267-48016-00
Unavailable
25
REAR FRAME COMP.
8GD-21950-30-00
Unavailable
26
REINEFORCEMENT, FRAME REAR 1
8FA-W2199-10-00
Unavailable
27
REINFORCEMENT, FOOTREST 1
8FG-21926-00-00
Unavailable
28
REINFORCEMENT, FOOTREST 2
8FG-21936-00-00
Unavailable
29
. BRACKET, MAIN TRACK 1
8FU-21943-00-00
Unavailable
30
BRACKET, MAIN TRACK 2
8FU-21953-00-00
Unavailable
31
BRACKET, RR.TRACK SUSPENTION 1
8FP-21944-00-00
Unavailable
32
BRACKET, RR.TRACK SUSPENTION 2
8FP-21954-00-00
Unavailable
33
BOLT, FLANGE
95814-10020-00
Unavailable
34
PATCH 8
8FU-21988-01-00
Unavailable
35
BRACKET, FUEL TANK 1
8CR-2194N-00-00
Unavailable
36
BRACKET 1
8FA-2194X-00-00
Unavailable
37
BRACKET 2
8FA-2195X-00-00
Unavailable
38
PROTECTOR, MUFFLER
8FA-2194H-01-00
Unavailable
39
RIVET, BLIND
90267-47195-00
Unavailable
40
PATCH 3
8FU-21963-00-00
Unavailable
41
PATCH 4
8FU-21964-00-00
Unavailable
42
HEAT EXCHANGER ASSY 4
8ET-1241A-02-00
Unavailable
43
WASHER, SEAL (7G5)
90210-06006-00
Unavailable
44
BOLT, FLANGE
95817-06016-00
Unavailable
45
RIVET, BLIND(3JB)
90267-48095-00
Unavailable
46
BRACKET, MAIN TRACK 3
8FU-21919-00-00
Unavailable
47
BOLT, BUTTON
92014-10020-00
Unavailable
48
REINF., SUB FRAME 1
8FP-21928-00-00
Unavailable
49
REINFORCEMENT, SUB FRAME 2
8FP-21938-00-00
Unavailable
50
REINFORCEMENT, FRAME REAR 3
8FJ-21924-00-00
Unavailable
51
REINFORCEMENT, FRAME REAR 4
8FJ-21934-00-00
Unavailable
52
STAY, MUFFER
8FR-2194L-00-00
Unavailable
53
DAMPER, MUFFLER
8FA-14737-00-00
Unavailable
54
COLLAR
90387-08084-00
Unavailable
55
. STAY, MUFFLER
8FR-2194J-00-00
Unavailable
56
FRAME CONNECTION KIT
8FP-W2195-11-00
Unavailable
57
BRACKET, CHAIN HOUSING
8CR-21939-01-00
$5.49
58
BRACKET, 5
8FP-2196M-01-00
Unavailable
59
BRACKET, 6
8FP-2197M-01-00
Unavailable
60
COVER 2
8FP-2198G-01-00
Unavailable
61
CLAMP, WIREHARNESS
8FA-21999-00-00
Unavailable
62
RIVET, BLIND
90267-47195-00
Unavailable
63
RIVET, BLIND
90267-48018-00
Unavailable
64
RIVET, BLIND
90267-48177-00
Unavailable
65
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
66
FOOTREST COMP. 1
8FP-21960-01-00
Unavailable
67
FOOTREST COMP. 2
8FP-21970-00-00
Unavailable
68
HOUSING, REINF SUB-ASSY(L.H)
8EK-21920-01-00
Unavailable
69
GROMMET(4FU)
90480-13567-00
Unavailable
70
FRAME UNDER 1
8FP-2196A-02-00
Unavailable
71
DAMPER 2
8FP-77374-00-00
Unavailable
72
FRAME, UNDER 2
8FP-2196E-02-00
Unavailable
73
DAMPER 3
8FP-77375-00-00
Unavailable
74
BRACKET, GUARD FITTING
8FP-21972-00-00
Unavailable
75
BRACKET 3
8FA-2196F-00-00
Unavailable
76
RIVET, BLIND
90267-48018-00
Unavailable
77
RIVET, BLIND
90267-47200-00
Unavailable
78
PROTECTOR, FRAME
8FA-21978-01-00
Unavailable
79
BRACKET 7
8FU-2197N-00-00
Unavailable
80
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
81
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
82
RIVET, BLIND (22W)
90267-48083-00
Unavailable
83
RIVET, BLIND(3JB)
90267-48095-00
Unavailable
84
RIVET, BLIND
90267-47195-00
Unavailable
85
RIVET, BLIND
90267-48177-00
Unavailable
86
CLAMP(4MX)
90465-06376-00
Unavailable
87
GROMMET
90480-23001-00
Unavailable
88
PROTECTOR, FRAME FR
8FR-2197E-00-00
Unavailable
89
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
90
SPACER
8FA-21998-00-00
Unavailable
91
SHIELD, HEAT
8FG-23892-00-00
Unavailable
92
RIVET, BLIND (8L0)
90267-48059-00
Unavailable
93
PLATE, EPA OFFROAD 2
8FR-2179D-20-00
Unavailable
94
EMBLEM 16
8GD-77372-00-00
Unavailable
