- RX10GTW (APEX GT) 8GD3 2007
TRACK SUSPENSION 2

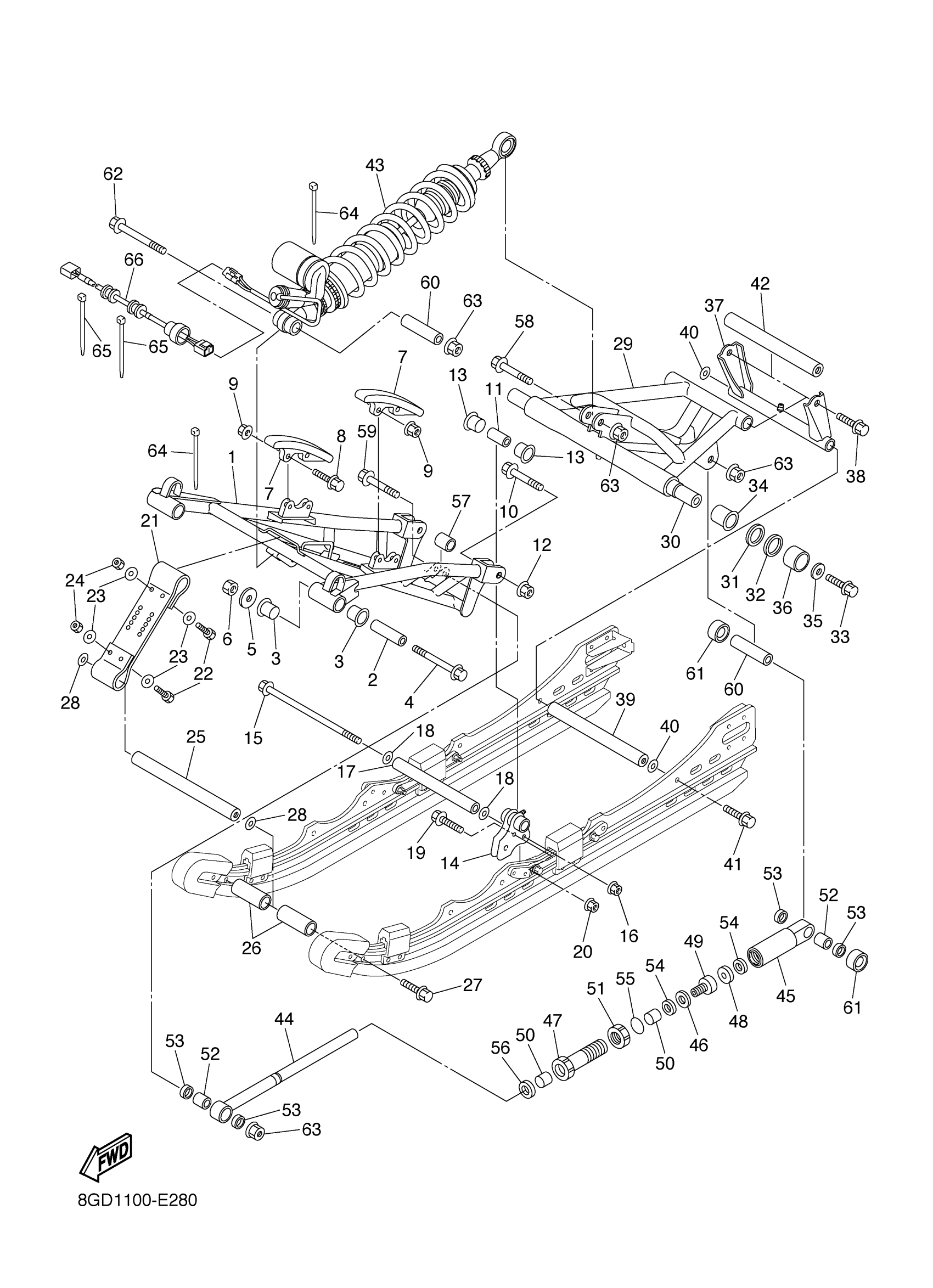

Yamaha RX10GTW (APEX GT) 8GD3 2007 TRACK SUSPENSION 2 Diagram
#
1
ARM, PIVOT 1
99999-03774-00
Unavailable
2
COLLAR
90387-10042-00
$21.99
3
BUSH
90386-22002-00
$21.99
4
BOLT, FLANGE
90105-10150-00
$12.49
5
WASHER, PLATE(42X)
90201-105H3-00
$7.49
6
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
$7.49
7
RUNNER, SLIDING 2
8F3-47422-01-00
$18.49
8
BOLT, FLANGE
95817-06020-00
$3.81
9
NUT,SELF-LOCKING
95607-06200-00
$12.49
10
BOLT, FLANGE
90105-10091-00
$5.60
11
COLLAR
90387-10033-00
$28.99
12
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
13
BUSH
90386-15002-00
$16.99
14
BRACKET 1
8FU-47415-10-00
Unavailable
15
BOLT, FLANGE
90105-08119-00
Unavailable
16
NUT, SELF-LOCKING
90185-08169-00
Unavailable
17
COLLAR
90387-08037-00
Unavailable
18
WASHER (1T1)
90201-08649-00
Unavailable
19
BOLT, FLANGE(6TA)
95817-08030-00
Unavailable
20
NUT, SELF-LOCKING
90185-08169-00
Unavailable
21
STOPPER 1
8FU-47495-00-00
Unavailable
22
BOLT, HEXAGON
97017-06025-00
Unavailable
23
WASHER, PLATE
90201-06747-00
Unavailable
24
NUT, NYLON
95707-06300-00
Unavailable
25
SHAFT 3
8FU-47485-00-00
Unavailable
26
COLLAR
90387-19003-00
Unavailable
27
BOLT, FLANGE
95817-10030-00
Unavailable
28
WASHER, PLATE (26H)
90201-102G9-00
Unavailable
29
ARM, PIVOT 2
8FU-47332-13-00
Unavailable
30
SHAFT 2
8FU-47475-00-00
Unavailable
31
WASHER, PLATE (8V2)
90201-251G8-00
Unavailable
32
WASHER, PLATE(8CJ)
90201-250T6-00
Unavailable
33
BOLT, FLANGE
90105-10145-00
Unavailable
34
BUSH, SOLID(8CJ)
90381-28108-00
Unavailable
35
WASHER, PLATE
90201-10039-00
Unavailable
36
COLLAR
90387-25005-00
Unavailable
37
BRACKET 3
8FU-47417-11-00
Unavailable
38
BOLT, FLANGE
95817-10030-00
Unavailable
39
SHAFT 3
8FU-47485-00-00
Unavailable
40
WASHER PLATE (789)
90201-10136-00
Unavailable
41
BOLT, FLANGE
95817-10030-00
Unavailable
42
SHAFT 4
8FU-47486-00-00
Unavailable
43
SHOCK ABSORBER
8GD-47480-00-00
Unavailable
44
ROD, CONTROL 1
8FR-4745A-00-00
Unavailable
45
ROD, CONTROL 3
8FU-4745C-10-00
Unavailable
46
WASHER, PLATE(8CJ)
90202-16229-00
Unavailable
47
ROD, CONTROL 2
8FU-4745B-00-00
Unavailable
48
WASHER (L=7.5)
8FU-47384-00-00
Unavailable
48
WASHER (L=5.0)
8FU-47384-10-00
Unavailable
48
WASHER
8FU-47384-20-00
Unavailable
49
STOPPER, CONT. 1
8FU-4745D-00-00
Unavailable
50
BUSH, BIMETAL FORMED(8CJ)
90384-16251-00
Unavailable
51
NUT
8JA-47368-00-00
Unavailable
52
BEARING
93315-31758-00
Unavailable
53
OIL SEAL
93109-17071-00
Unavailable
54
SPACER
8FU-47466-00-00
Unavailable
55
O-RING
93210-347A6-00
Unavailable
56
SEAL, TRIM DUST
C68-43822-00-00
Unavailable
57
COLLAR
90387-1012A-00
Unavailable
58
BOLT, FLANGE(4GB)
95817-10045-00
Unavailable
59
BOLT, WASHER BASED(4KD)
90105-10728-00
Unavailable
60
COLLAR
90387-10034-00
Unavailable
61
SPACER
8FU-47341-00-00
Unavailable
62
BOLT, FLANGE(7LU)
95817-10070-00
Unavailable
63
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
64
BAND
1UA-82591-00-00
Unavailable
65
CLAMP(3XW)
90464-35132-00
Unavailable
66
WIRE, SUB LEAD
8GD-82509-01-00
Unavailable
