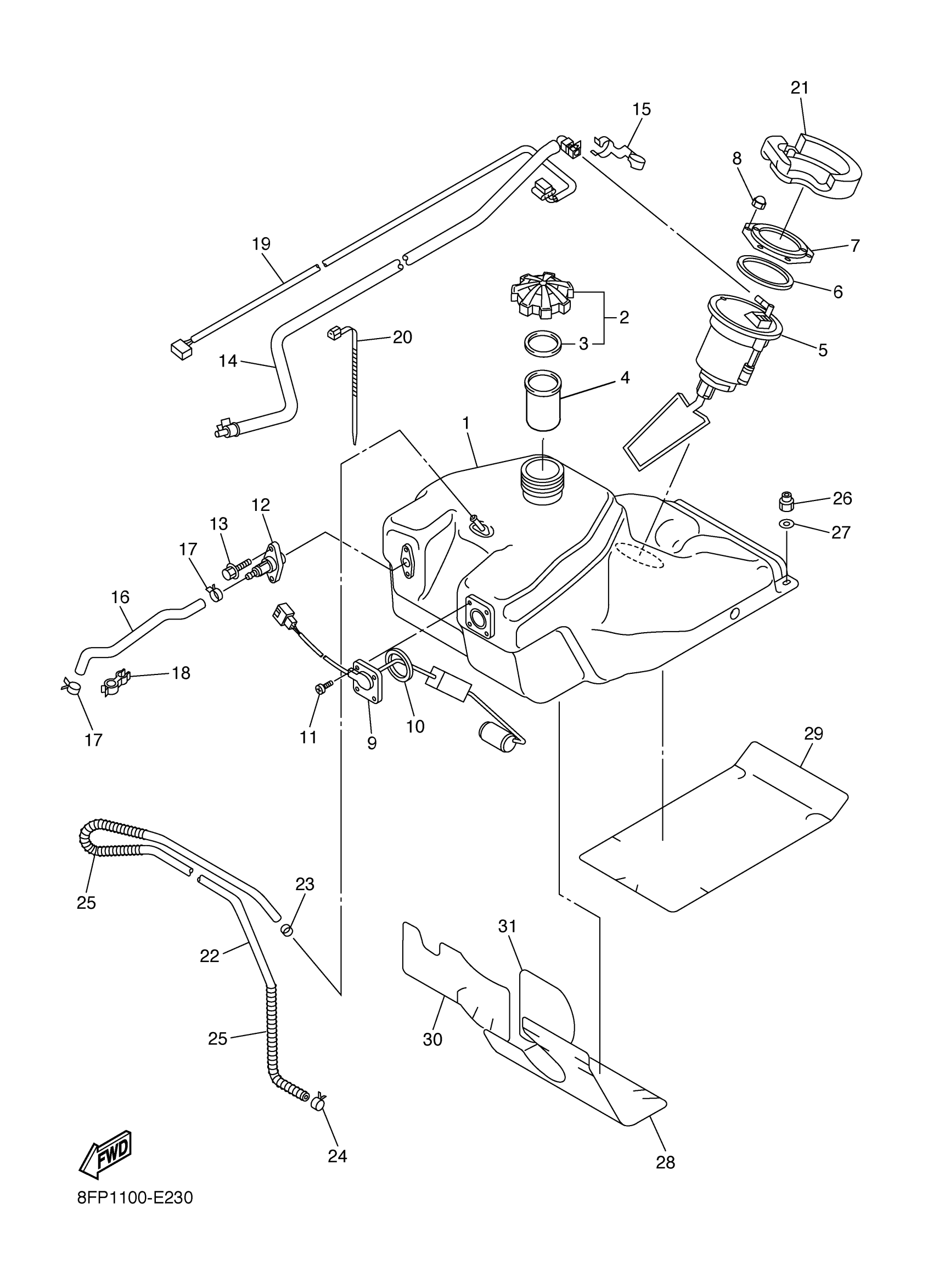

Yamaha RX10GTW (APEX GT) 8GD3 2007 FUEL TANK Diagram

TANK, FUEL

8FP-24111-01-00

Unavailable

CAP ASSY

8FG-24610-01-00

$40.99

GASKET, CAP 1

8HV-24641-00-00

Unavailable

TUBE, FILLER

8FP-24114-00-00

Unavailable

FUEL PUMP COMP.

8FP-13907-02-00

Unavailable

O-RING

8FP-24486-00-00

$18.99

BRACKET, FUEL PUMP

8FP-24491-00-00

Unavailable

NUT(4MY)

95307-06800-00

$3.82

SENDER UNIT ASSY, FUEL METER

8FP-85752-01-00

Unavailable

O-RING (102)

93210-41041-00

$7.49

SCREW, BINDING

98907-05008-00

$2.18

VALVE, CHECK 1

8FP-24362-01-00

$67.99

BOLT, FLANGE

95817-06012-00

$1.43

PIPE, FUEL 1

8FR-24311-00-00

Unavailable

CLAMP

90464-14004-00

$7.49

PIPE 2

8FP-24312-00-00

Unavailable

CLIP(3YX)

90467-13133-00

Unavailable

CLIP(J38)

90468-80181-00

Unavailable

WIRE, SUB LEAD

8FP-82309-01-00

Unavailable

CLAMP

90464-13077-00

Unavailable

DAMPER, LOCATING 1

8FP-24181-01-00

Unavailable

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

Unavailable

CLIP (2A6)

90468-02078-00

Unavailable

CLIP (8A1)

90467-09026-00

Unavailable

SPRING, COMPRESSION (10L)

90501-08668-00

Unavailable

NUT, NYLON

95717-08300-00

Unavailable

WASHER, PLATE (3L7)

90201-08784-00

Unavailable

PROTECTOR, FUEL TANK

8FP-24141-00-00

Unavailable

PROTECTOR, FUEL TANK

8FA-24141-10-00

Unavailable

INSULATOR, FUEL TANK 1

8FP-2416F-00-00

Unavailable

INSULATOR, FUEL TANK 1

8FP-2416F-10-00

Unavailable
