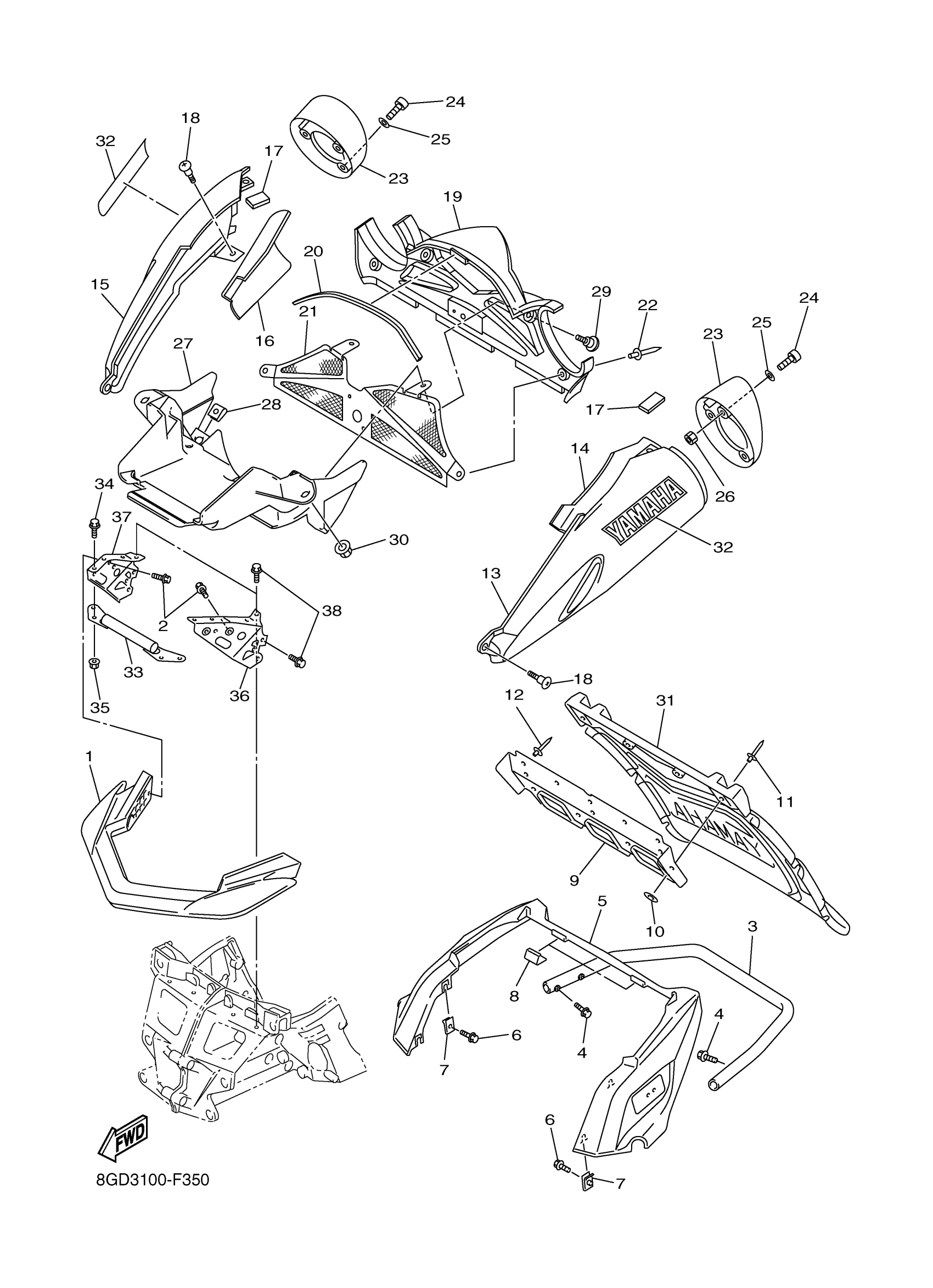

Yamaha RX10GTW (APEX GT) 8GD3 2007 BUMPER Diagram
#
3
BUMPER, REAR 1
8FP-77541-01-00
Unavailable
5
BUMPER, REAR 2
8FA-77542-00-00
Unavailable
7
NUT, SPRING(4ES)
90183-06069-00
Unavailable
13
PROTECTOR 1
8FP-77551-01-P0
Unavailable
14
LINING, SHROUD 1
8FP-77261-00-00
Unavailable
15
PROTECTOR 2
8FP-77552-01-P0
Unavailable
15
PROTECTOR 2
8FP-77552-01-P2
Unavailable
16
LINING, SHROUD 2
8FP-77262-00-00
Unavailable
17
LINING, SHROUD 3
8FP-77263-00-00
Unavailable
18
SCREW, BINDING
90154-06009-00
Unavailable
19
COVER, TAILLIGHT
8FP-84516-01-00
Unavailable
20
TRIM 8
8FP-77234-00-00
Unavailable
21
LOUVER 1
8FP-77441-00-00
Unavailable
22
RIVET, BLIND(8CH)
90267-47187-00
Unavailable
23
CAP
8FP-77517-00-00
Unavailable
24
BOLT,SOCKET HEAD
91314-06020-00
Unavailable
25
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
26
NUT, HEXAGON
95380-06600-00
Unavailable
27
BRACKET, TAILLIGHT
99999-03831-00
Unavailable
28
NUT, SPRING(4ES)
90183-06069-00
Unavailable
29
SCREW, BINDING
90154-06009-00
Unavailable
30
NUT,SELF-LOCKING
95607-06200-00
Unavailable
31
FLAP
8GT-K7595-00-00
Unavailable
32
EMBLEM, YAMAHA
99244-00140-00
Unavailable
33
BRKT. ,FR. FOOD
8FP-21979-00-00
Unavailable
34
BOLT, FLANGE
95817-06014-00
Unavailable
35
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
36
BRACKET, FRONT
8FA-21949-00-00
Unavailable
37
BRACKET, FRONT BUMPER
8FA-21959-00-00
Unavailable
