- RX10GTL (APEX GT) 8GD1 2006
TRACK DRIVE 2

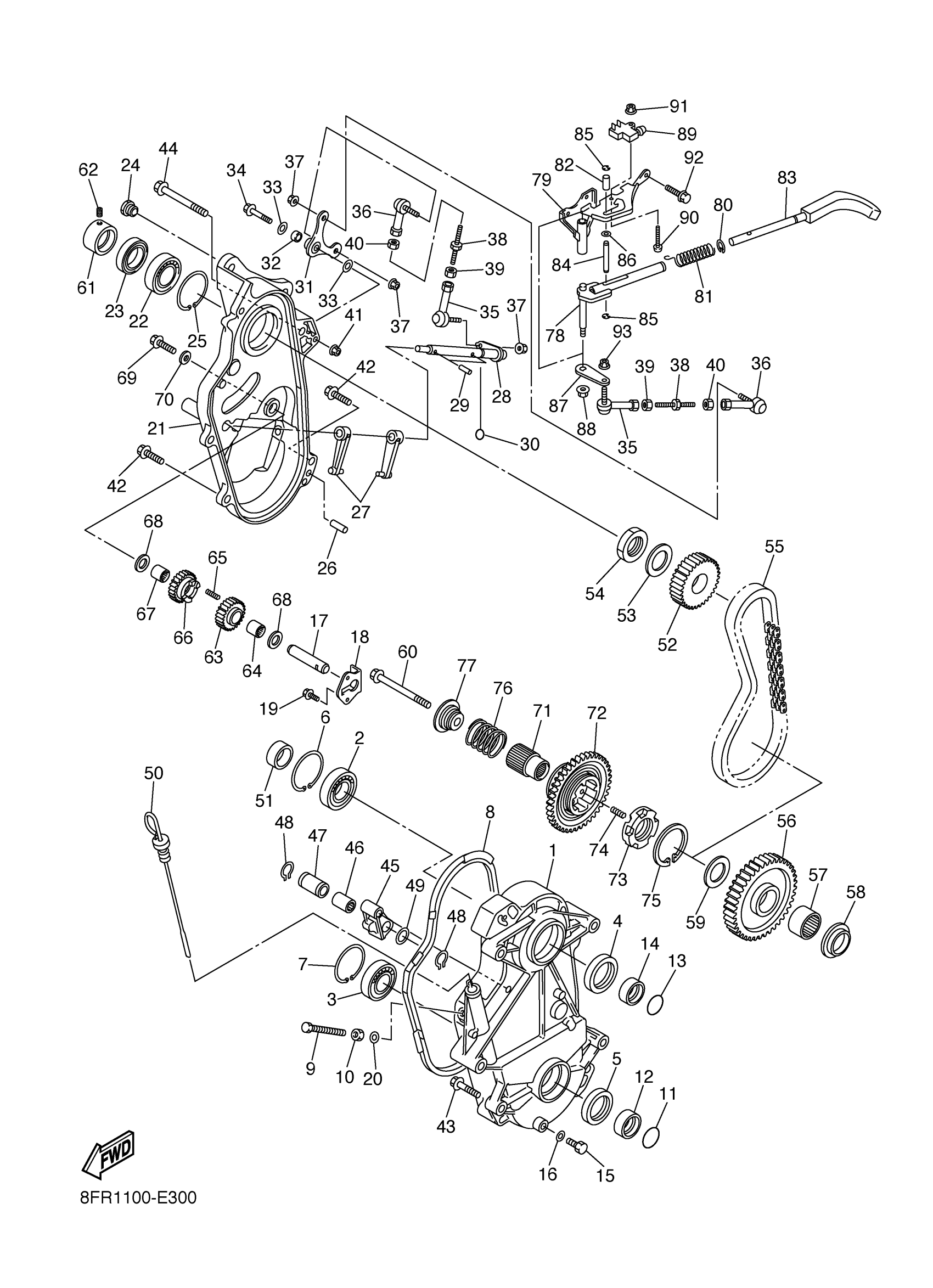

Yamaha RX10GTL (APEX GT) 8GD1 2006 TRACK DRIVE 2 Diagram
#
1
HOUSING, CHAIN
8FP-47541-11-00
Unavailable
2
BEARING (5X5)
93306-20627-00
$75.99
3
BEARING
93306-20592-00
$59.99
4
OIL SEAL
93102-40014-00
$15.99
5
OIL SEAL
93102-35010-00
$23.99
6
CIRCLIP(MF1)
99009-62500-00
$8.49
7
CIRCLIP(26H)
99009-52500-00
$12.49
8
RING, HOUSING
8FP-47558-10-00
$72.99
9
BOLT, HEXAGON (8F3)
90101-10357-00
Unavailable
10
NUT (3WP1)
95317-10700-00
$8.49
11
O-RING (169)
93210-25071-00
$8.49
12
COLLAR(8CJ)
90387-2508C-00
$46.99
13
O-RING (498)
93210-29282-00
$8.49
14
COLLAR
90387-30004-00
Unavailable
15
BOLT(8BC)
97007-08014-00
$8.49
16
WASHER, SEAL(8AB)
90210-08017-00
Unavailable
17
SHAFT, 1
8CW-1761A-00-00
Unavailable
18
PLATE
8CW-47591-00-00
Unavailable
19
BOLT, FLANGE
95817-06016-00
Unavailable
20
WASHER, PLATE(56J)
90201-106H5-00
Unavailable
21
CAP, HOUSING
8FR-47543-02-00
Unavailable
22
BEARING
93306-20532-00
Unavailable
23
OIL SEAL
93102-35473-00
Unavailable
24
NUT(8CJ)
90179-10679-00
Unavailable
25
CIRCLIP(26H)
99009-52500-00
$12.49
26
PIN, DOWEL (168)
93606-20044-00
Unavailable
27
FORK, SHIFT 1
8GL-18511-01-00
Unavailable
28
SHAFT
8FR-18197-00-00
Unavailable
29
PIN, SPRING(8DA)
91609-50022-00
Unavailable
30
O-RING (328)
93210-12131-00
Unavailable
31
LEVER
8FR-18198-00-00
Unavailable
32
COLLAR
90387-06197-00
Unavailable
33
WASHER, PLATE(36Y)
90201-063J2-00
Unavailable
34
BOLT, FLANGE
95817-06040-00
Unavailable
35
JOINT, UNIVERSAL 2
J45-23845-00-00
Unavailable
36
JOINT 2
88T-18157-00-00
Unavailable
37
NUT,SELF-LOCKING
95607-06200-00
Unavailable
38
ROD, SHIFT
26H-18115-00-00
Unavailable
39
NUT, HEXAGON
95314-06600-00
Unavailable
40
NUT (2H9)
90170-06228-00
Unavailable
41
NUT,SELF-LOCKING
95607-06200-00
Unavailable
42
BOLT, FLANGE
95817-08035-00
Unavailable
43
BOLT, FLANGE(4GB)
95817-10045-00
Unavailable
44
BOLT,FLANGE
95817-10090-00
Unavailable
45
HOLDER
8ES-47613-00-00
Unavailable
46
BEARING
93311-32685-00
Unavailable
47
COLLAR
90387-22005-00
Unavailable
48
CIRCLIP
99009-26400-00
Unavailable
49
WASHER, PLATE
90201-266P2-00
Unavailable
50
LEVEL, OIL
8FA-47546-01-00
Unavailable
51
COLLAR
90387-30005-00
Unavailable
52
SPROCKET, CHAIN DRIVE
8FA-17682-40-00
Unavailable
53
WASHER, CONICAL SPRING
90208-28001-00
Unavailable
54
NUT
90170-28009-00
Unavailable
55
CHAIN
94890-09070-00
Unavailable
56
SPROCKET, CHAIN DRIVEN
8FB-47587-80-00
Unavailable
57
BEARING, CYLINDRICAL(8DA)
93317-33179-00
Unavailable
58
COLLAR(8DA)
90387-2008G-00
Unavailable
59
WASHER, PLATE(8DA)
90201-320S3-00
Unavailable
60
BOLT, FLANGE(7LU)
95817-10070-00
Unavailable
61
COLLAR
90387-25009-00
Unavailable
62
BOLT, SET
90113-06006-00
Unavailable
63
SPROCKET, DRIVE
8FB-17692-00-00
Unavailable
64
BEARING, CYLINDRICAL(8DA)
93317-21578-00
Unavailable
65
SPRING COMPRESSION278185450000
90501-06022-00
Unavailable
66
REVERSE GEAR SUB-ASSY 1 (RGEAR
8CW-W1714-00-00
Unavailable
67
BEARING, CYLINDRICAL(8DA)
93317-21578-00
Unavailable
68
WASHER PLATE (3L6)
90201-16245-00
Unavailable
69
BOLT, FLANGE
95817-06016-00
Unavailable
70
WASHER, SEAL (7G5)
90210-06006-00
Unavailable
71
JOURNAL 1
8CW-47571-00-00
Unavailable
72
GEAR, REVERSE WHEEL 1
8CW-17243-00-00
Unavailable
73
DOG, TRANSMISSION SHIFT
8CW-17492-00-00
Unavailable
74
SPRING, COMPRESSION(8DA)
90501-066J5-00
Unavailable
75
CIRCLIP(8DA)
93440-39175-00
Unavailable
76
SPRING, COMPRESSION(8FA1)
90501-260A0-00
Unavailable
77
COLLAR
8CW-47564-01-00
Unavailable
78
ARM, SHIFT
8ER-18112-01-00
Unavailable
79
GUIDE, PLATE STOPPER
8ER-18161-00-00
Unavailable
80
CIRCLIP(13H)
99009-18400-00
Unavailable
81
SPRING, COMPRESSION (8FA1)
90501-130A0-00
Unavailable
82
COLLAR (8FA1)
90387-06059-00
Unavailable
83
KNOB, SHIFT LEVER
8FR-18174-01-00
Unavailable
84
PIN (8FA1)
90249-06002-00
Unavailable
85
CIRCLIP (J10)
93410-06053-00
Unavailable
86
WASHER, PLATE (8U7)
90201-067F9-00
Unavailable
87
PLATE, SHIFT ARM
8ER-1811A-01-00
Unavailable
88
NUT,SELF-LOCKING
95607-06200-00
Unavailable
89
SWITCH
J51-82817-00-00
Unavailable
90
SCREW, BINDING
98907-04020-00
Unavailable
91
NUT, U (7LY)
95617-04100-00
Unavailable
92
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
93
NUT,SELF-LOCKING
95607-06200-00
Unavailable
