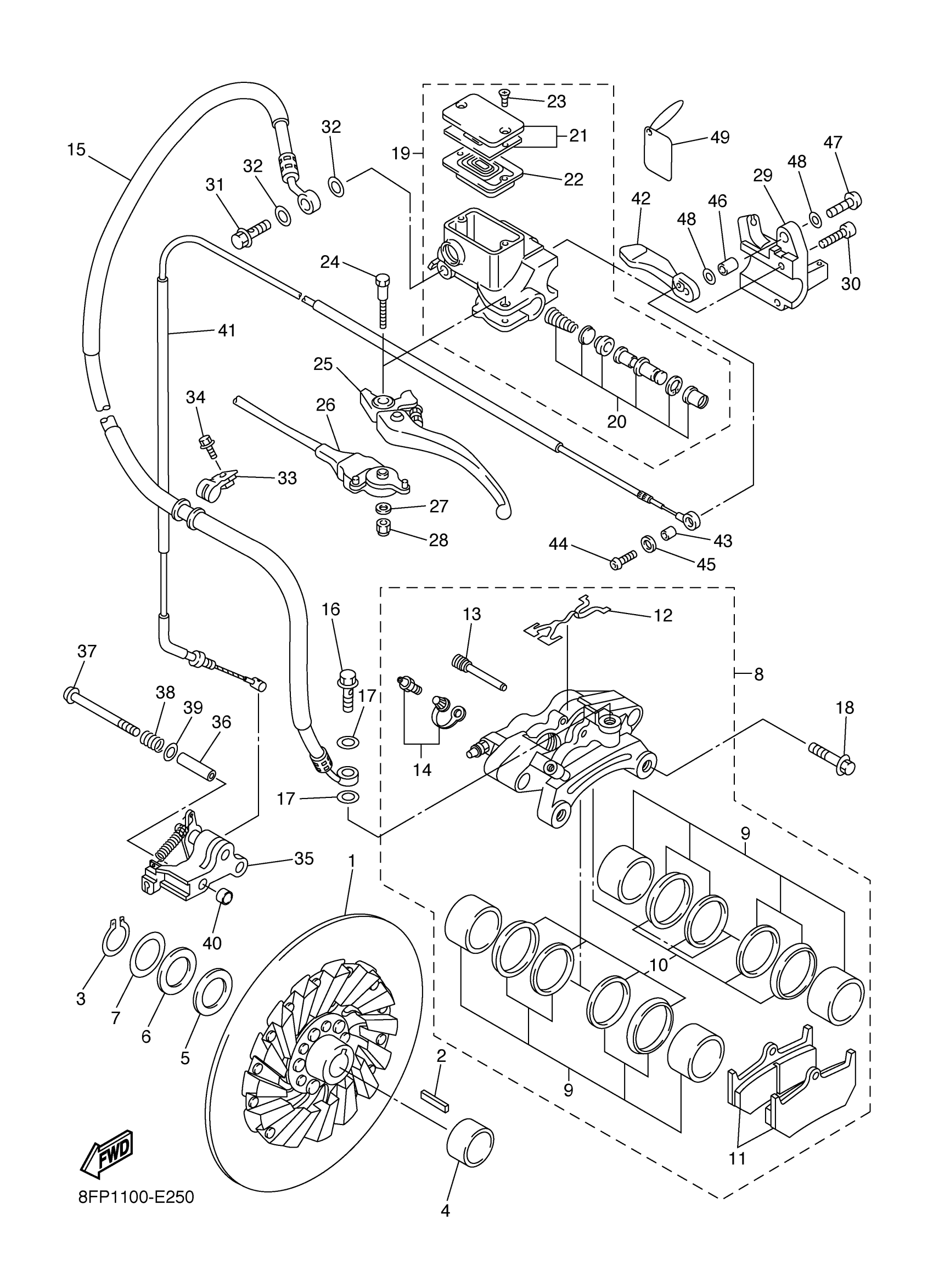

Yamaha RX10GTL (APEX GT) 8GD1 2006 BRAKE Diagram
#
1
DISK BRAKE ASSY
8FU-2581T-00-00
$296.99
2
KEY, STRAIGHT
90282-07002-00
$7.49
3
CIRCLIP
99009-24400-00
$8.49
4
COLLAR
90387-25012-00
Unavailable
5
COLLAR
90387-25011-00
$10.49
6
WASHER, PLATE (888)
90201-25527-00
$10.49
7
WASHER, PLATE (8R6)
90201-252F1-00
$8.49
8
CALIPER ASSY (LEFT)
8FU-2580T-01-00
Unavailable
9
PISTON ASSY, CALIPER
8FU-W0057-00-00
Unavailable
10
CALIPER SEAL KIT
3JD-W0047-10-00
Unavailable
11
BRAKE PAD KIT 2
8FU-W0046-01-00
$64.99
12
SUPPORT, PAD
8FU-25919-00-00
Unavailable
13
PIN, PAD
8FU-25924-00-00
Unavailable
14
BLEED SCREW KIT
8CR-W0048-00-00
$13.49
15
HOSE, BRAKE 1
8FP-25872-00-00
Unavailable
16
BOLT, UNION(3GM)
90401-10159-00
Unavailable
17
WASHER, PLATE(481)
90201-10118-00
Unavailable
18
BOLT, FLANGE
90105-10096-00
Unavailable
19
MASTER CYLINDER SUB ASSY
8FA-W2587-00-00
Unavailable
20
CYLINDER KIT, MASTER
8CR-W0041-00-00
Unavailable
21
RESERVOIR CAP SET
8CR-W2585-00-00
Unavailable
22
DIAPHRAGM, RESERVOIR
55U-25854-00-00
Unavailable
23
SCREW, FLAT
98707-04012-00
Unavailable
24
BOLT, LEVER
8CR-2589F-00-00
Unavailable
25
LEVER 1
8DN-83912-00-00
Unavailable
26
STOP SWITCH ASSY
8FP-82530-00-00
Unavailable
27
WASHER, PLAIN
8CR-8398X-00-00
Unavailable
28
NUT, NYLON
95707-05300-00
Unavailable
29
BRACKET, MASTER CYLINDER
8FA-25867-00-00
Unavailable
30
BOLT,SOCKET
91317-06025-00
Unavailable
31
BOLT, UNION(3GM)
90401-10159-00
Unavailable
32
WASHER, PLATE(481)
90201-10118-00
Unavailable
33
HOLDER, BRAKE HOSE
8FA-25886-00-00
Unavailable
34
BOLT(3KJ)
90109-063F1-00
Unavailable
35
PARKING BRAKE COMP.
8FU-25970-01-00
Unavailable
36
COLLAR
90387-06058-00
Unavailable
37
BOLT
90111-06048-00
Unavailable
38
SPRING, COMPRESSION
90501-120A0-00
Unavailable
39
WASHER 6474553400
90201-12161-00
Unavailable
40
COLLAR
90387-06085-00
Unavailable
41
CABLE, BRAKE
8FP-26351-00-00
Unavailable
42
LEVER 2
8FA-83922-00-00
Unavailable
43
COLLAR
90387-06043-00
Unavailable
44
BOLT, BUTTON HEAD
92017-06014-00
Unavailable
45
. WASHER, PLATE
90201-06050-00
Unavailable
46
COLLAR
90387-081M9-00
Unavailable
47
BOLT, BUTTON
92017-08020-00
Unavailable
48
WASHER PLATE 141181390000
90201-08085-00
Unavailable
49
TAG, CAUTION
8CR-23496-00-00
Unavailable
