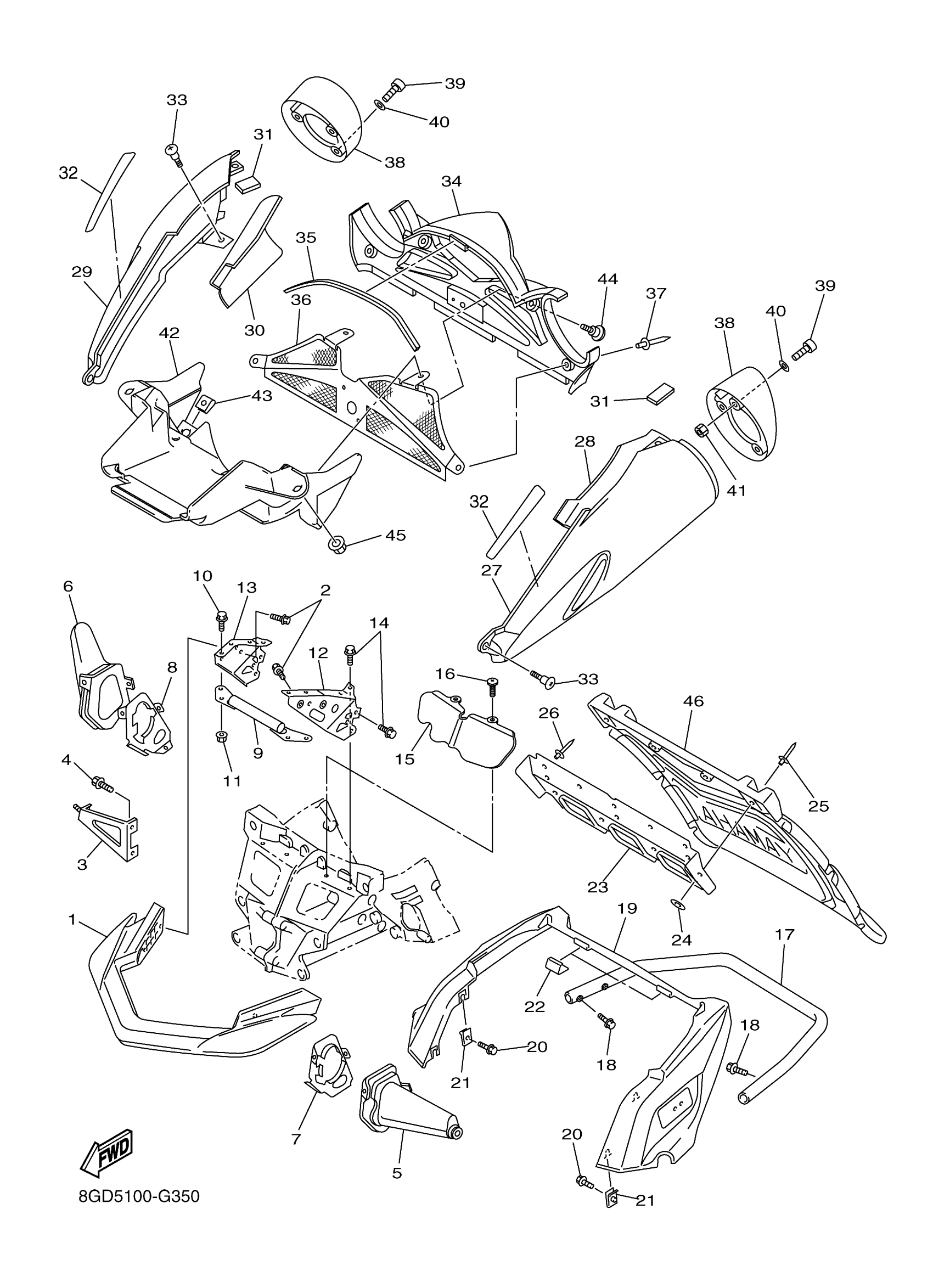

Yamaha RX10GTAXW (APEX GT 40TH ANNIVERSARY) 8GD7 2008 BUMPER Diagram
#
1
BUMPER, FRONT 1
8FA-77511-01-00
$250.99
2
BOLT, FLANGE(JN5)
95817-08016-00
$5.49
3
BRACKET, OIL TANK 1
8ES-2193E-00-00
Unavailable
4
BOLT, FLANGE
95822-08014-00
$8.49
5
COVER 1
8FU-2198F-01-00
$31.99
6
COVER 3
8FU-2198J-01-00
$31.99
7
PLATE, STRG BRACKET 1
8FU-2195E-01-00
Unavailable
8
PLATE, STRG BRACKET 2
8FU-2195F-01-00
Unavailable
9
BRKT. ,FR. FOOD
8FP-21979-00-00
$95.99
10
BOLT, FLANGE
95817-06014-00
Unavailable
11
NUT, FLANGE
95702-06500-00
$2.39
12
BRACKET, FRONT
8FA-21949-00-00
$63.99
13
BRACKET, FRONT BUMPER
8FA-21959-00-00
$59.99
14
BOLT, FLANGE
95814-08016-00
$9.49
15
COVER, FRONT
8FP-22865-00-00
Unavailable
16
SCREW, ROUND HEAD (24R)
90150-06015-00
Unavailable
17
BUMPER, REAR 1
8FP-77541-01-00
Unavailable
18
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
19
BUMPER, REAR 2
8FA-77542-00-00
Unavailable
20
BOLT, FLANGE
95817-06016-00
Unavailable
21
NUT, SPRING(4ES)
90183-06069-00
Unavailable
22
TAPE 4
8FA-7717H-00-00
Unavailable
23
STOPPER, FLAP
8GH-77596-01-00
Unavailable
24
WASHER, PLATE
90201-04027-00
Unavailable
25
RIVET, BLIND
90267-47200-00
Unavailable
26
RIVET, BLIND(3JB)
90267-48095-00
Unavailable
27
PROTECTOR 1
8FP-77551-01-P5
Unavailable
28
LINING, SHROUD 1
8FP-77261-00-00
Unavailable
29
PROTECTOR 2
8FP-77552-01-P5
Unavailable
30
LINING, SHROUD 2
8FP-77262-00-00
Unavailable
31
LINING, SHROUD 3
8FP-77263-00-00
Unavailable
32
PROTECTOR, SIDE 1
8FR-77561-00-00
Unavailable
33
SCREW, BINDING
90154-06009-00
Unavailable
34
COVER, TAILLIGHT
8FP-84516-01-00
Unavailable
35
TRIM 8
8FP-77234-00-00
Unavailable
36
LOUVER 1
8FP-77441-00-00
Unavailable
37
RIVET, BLIND(8CH)
90267-47187-00
Unavailable
38
CAP
8FP-77517-00-00
Unavailable
39
BOLT,SOCKET HEAD
91314-06020-00
Unavailable
40
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
41
NUT, HEXAGON
95380-06600-00
Unavailable
42
BRACKET, TAILLIGHT
99999-03831-00
Unavailable
43
NUT, SPRING(4ES)
90183-06069-00
Unavailable
44
SCREW, BINDING
90154-06009-00
Unavailable
45
NUT, U FLANGE
95604-06200-00
Unavailable
46
FLAP
8GT-K7595-00-00
Unavailable
