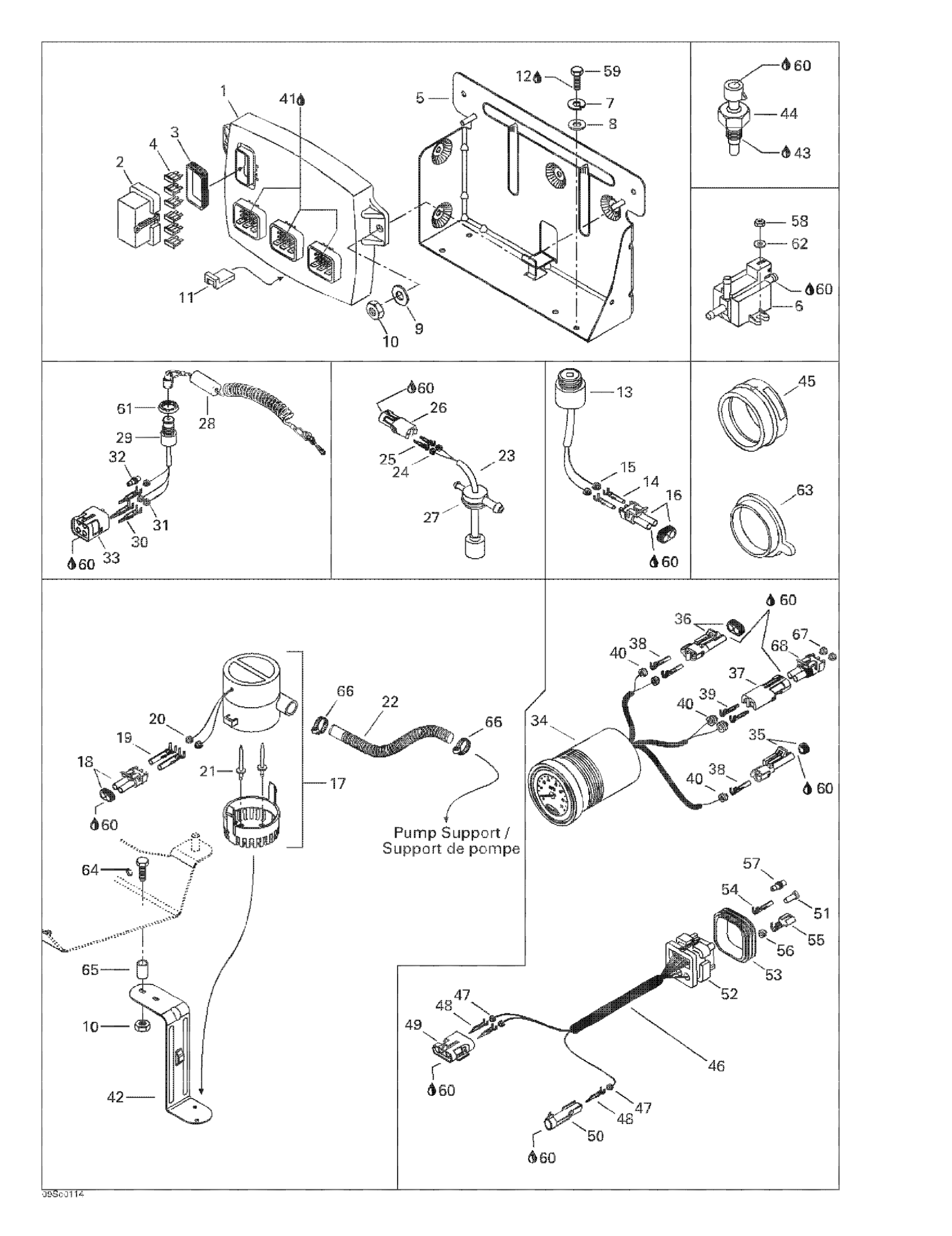

Sea-doo RX X, 5589, 2001 Electronic Module And Electrical Accessories Diagram

#

Description
Price

1

Electronic Module Ass'y | Includes 1 - 4.

289100003

Unavailable

2

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

$36.99

3

Cover Seal

278001070

Unavailable

4

Fuse, 15 Amperes

278000343

$3.28

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

Fuse, 5 Amperes | CE

278000344

$3.28

5

Module Support

278001563

Unavailable

6

Solenoid Valve

270600005

$116.49

7

WASHER-LOCK IMPERIAL - Call your local BRP dealership

211200043

Unavailable

8

Flat Washer 5 mm, Stainless

234052600

$0.77

9

Flat Washer M6, Stainless

234062600

$0.77

10

Hex. Elastic Stop Nut M6

232561600

$1.15

11

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

12

Loctite 271, 10 ml

293800005

$26.99

13

Buzzer Ass'y | Includes 11 - 14.

278000978

Unavailable

14

Female Terminal

278000223

$3.19

15

Wire Seal

278000218

$4.39

16

Male Connector, 2 Circuits

278000220

$15.49

17

BILGE PUMP - Call your local BRP dealership | Includes 22 to 25

278001176

$199.99

18

Male Connector, 2 Circuits

278000220

$15.49

19

Female Terminal

278000223

$3.19

20

Wire Seal

278000218

$4.39

21

Pop-Rivet 5/32

293150059

$0.57

22

HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership

204070560

Unavailable

23

Oil Sensor | Includes 44 to 48

278001402

Unavailable

24

Wire Seal

278000218

$4.39

25

Male Terminal | XT Models

278000222

$3.19

26

Female Housing, 2 Circuits

278000217

$9.59

27

Grommet

293720008

$14.75

28

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$84.99

29

Safety Switch | Includes 15 - 19.

278000977

Unavailable

30

Male Terminal | XT Models

278000222

$3.19

31

Wire Seal

278000218

$4.39

32

Wire Seal

278000216

$3.19

33

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

34

PROTECTOR CAP - Call your local BRP dealership

278001380

Unavailable

35

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

36

Male Connector, 2 Circuits

278000220

$15.49

37

Female Housing, 2 Circuits

278000217

$9.59

38

Female Terminal

278000223

$3.19

39

Male Terminal | XT Models

278000222

$3.19

40

Wire Seal

278001065

$7.69

41

*(Ormd) *Deoxit Aerosol *

293550034

$38.99

42

Bilge Pump Support

271000992

Unavailable

43

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

44

Temperature Sensor

278002895

$39.99

45

Gauge Support

293720047

Unavailable

46

Tachometer Harness | Includes 46 - 57.

289100039

Unavailable

47

Wire Seal

278000218

$4.39

48

Male Terminal | XT Models

278000222

$3.19

49

Female Housing, 2 Circuits

278000217

$9.59

50

Female Housing, 1 Circuit

278000161

$9.59

51

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

52

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

53

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

54

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

55

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

56

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

57

SEAL - Call your local BRP dealership

409013900

Unavailable

58

Hex. Elastic Nut M5 | X

232551600

$1.15

59

Hex. Plastite Screw M4, 8 X 20

243042060

Unavailable

60

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

61

Safety Nut (DESS Switch)

278002963

$3.28

62

Flat Washer M5, Stainless

234051600

$0.77

63

Gauge Cap | STD

293000068

Unavailable

64

Hex. Screw M6 X 25

207162560

$1.47

65

Bushing

271000059

Unavailable

66

Tridon Gear Clamp

293650172

$3.09

67

Wire Seal

278000216

$3.19

68

Male Connector, 2 Circuits

278000220

$15.49
