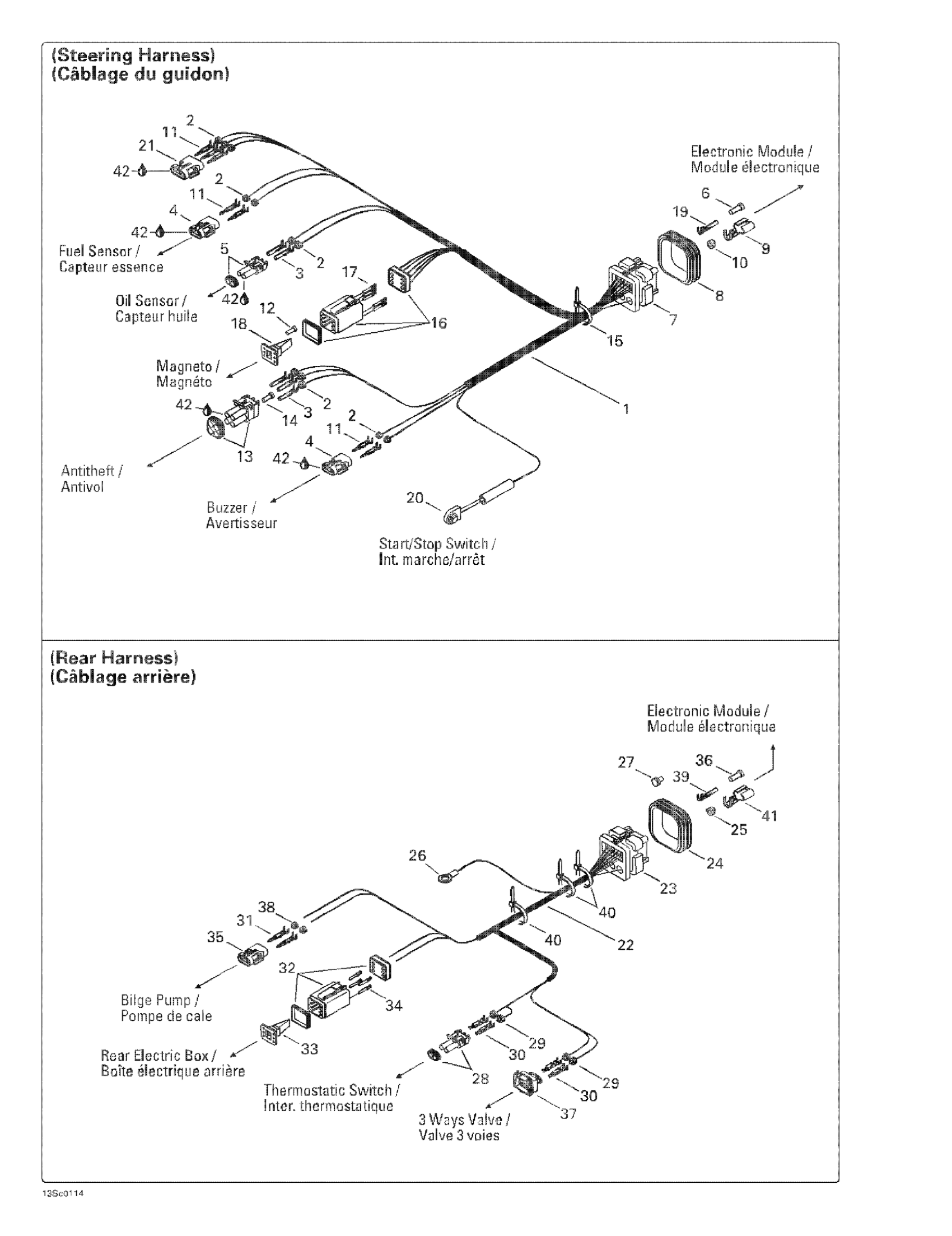

Sea-doo RX X, 5589, 2001 10- Electrical Harness Diagram

#

Description
Price

1

Steering Harness | Includes 1 - 21.

289100038

Unavailable

2

Wire Seal

278000218

$4.39

3

Female Terminal

278000223

$3.19

4

Female Housing, 2 Circuits

278000217

$9.59

5

Male Connector, 2 Circuits

278000220

$15.49

6

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

7

Male Terminal Housing, 26 Circuits

278001062

Unavailable

8

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

9

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

10

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

11

Male Terminal | XT Models

278000222

$3.19

12

Sealing Cap

293000052

$3.19

13

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

14

Wire Seal

278000216

$3.19

15

Tie Wrap 142 mm

293750002

$1.25

16

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

17

Female Terminal

278000632

$2.09

18

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

19

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

20

Stop/Start Switch Ass'y

278001403

Unavailable

21

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

22

Rear Harness | Includes 22 - 41.

289100004

Unavailable

23

MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership

278001063

Unavailable

24

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

25

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

26

OPEN BARREL - Call your local BRP dealership

409003200

Unavailable

27

SEAL - Call your local BRP dealership

409013900

Unavailable

28

Male Housing, 2 Circuits

278001005

$19.49

29

Wire Seal

278000999

$3.19

30

Female Terminal

278000998

$4.39

31

Male Terminal | XT Models

278000222

$3.19

32

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

33

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

34

Female Terminal

278000632

$2.09

35

Female Housing, 2 Circuits

278000217

$9.59

36

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

37

Male Connector, 2 Circuits

278001003

$46.49

38

Wire Seal

278000218

$4.39

39

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

40

Tie Wrap 142 mm

293750002

$1.25

41

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

42

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99
