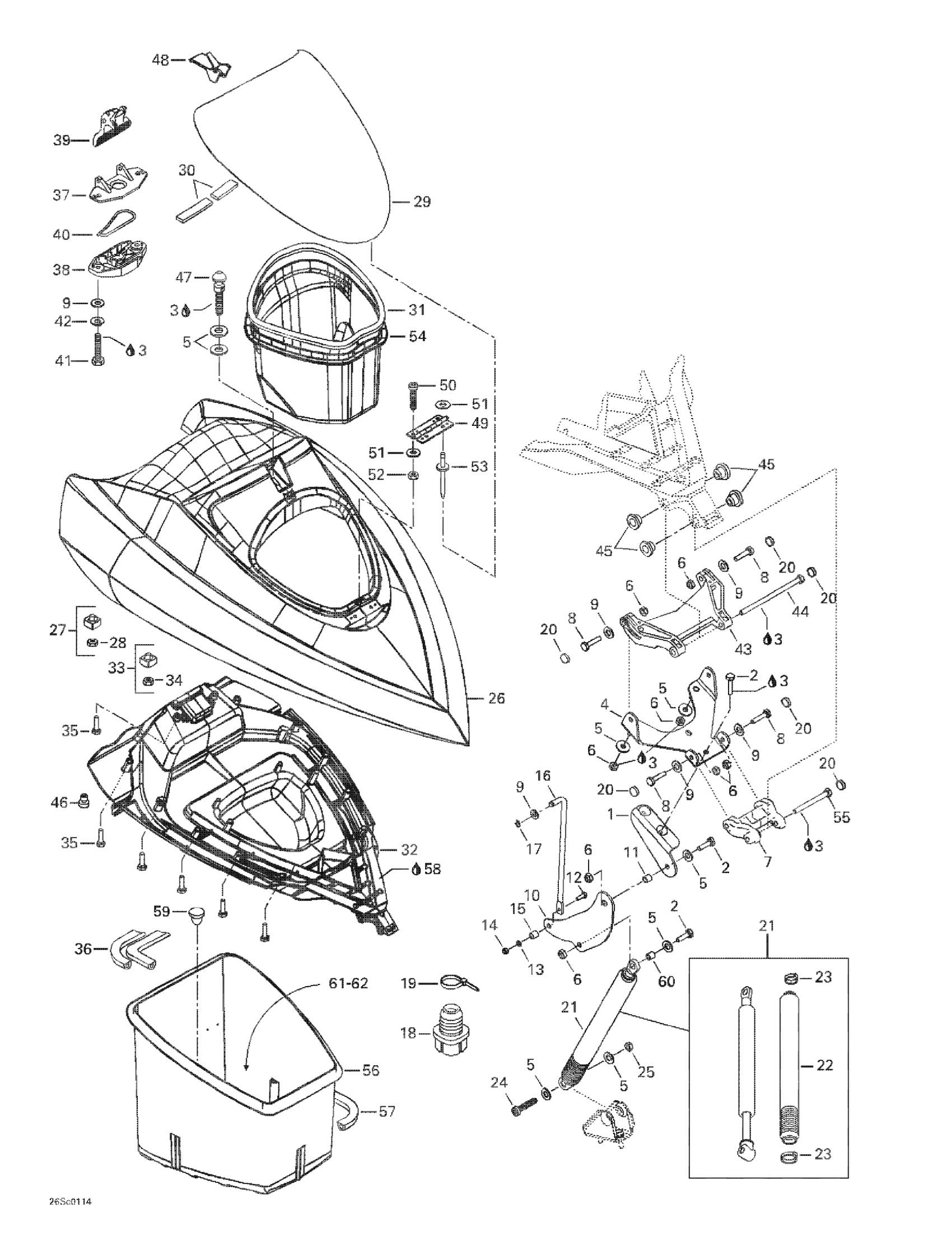

Sea-doo RX X, 5589, 2001 Front Storage Compartment Diagram

#

Description
Price

1

SUPPORT LEVER - Call your local BRP dealership

269501742

Unavailable

2

Hex. Forming Screw M6 X 20

207162060

$1.29

3

Loctite 243, 10 ml

293800060

$21.49

4

Pivot Support

269500708

Unavailable

5

Flat Washer M6, Stainless

234062600

$0.77

6

Hex. Elastic Stop Nut M6

232561600

$1.15

7

FRONT ARM - Call your local BRP dealership

269500704

Unavailable

8

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

9

Stainless Flat Washer M6

234061600

$0.33

10

Lever

269500840

Unavailable

11

Spacer

291000536

Unavailable

12

Hex. Screw M4 X 16 | Europe

207141660

$1.47

13

Flat Washer 4 mm, Stainless

234041600

$1.15

14

Elastic Stop Nut M4

232541600

$1.15

15

Spacer

269500841

Unavailable

16

ROD - Call your local BRP dealership

269500842

Unavailable

17

CIRCLIP 6 MM - Call your local BRP dealership | North America

293370005

Unavailable

18

Cable Grommet

293720063

Unavailable

19

Tie-Rap 180 mm

414115200

$0.11

20

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

21

GAZ SHOCK ASS'Y - Call your local BRP dealership | Includes 26 - 28.

269500843

Unavailable

22

Bellow

269500845

Unavailable

23

Tie Wrap 94 mm | 4X4

293750001

$1.03

24

Socket Head Screw M6 x 45 (Scotch Grip)

205564560

Unavailable

25

Nut M6 | Model-Australie, Brezil, Europe

232361600

$4.34

26

Cover | Includes 26 - 28.

289100040

Unavailable

27

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

28

Hex. Nut M6

232061600

$1.15

29

Access Cover

289100022

Unavailable

30

Neoprene Seal (1PAC=3M)

219704364

$27.49

31

Was 293200017 Neoprene Seal

219704365

$149.99

32

Lower Strorage Cover

269500702

Unavailable

33

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

34

Hex. Nut M6

232061600

$1.15

35

Hex. Flange Screw K40 X 13

241141360

$0.67

36

Was 293200017 Neoprene Seal

219704365

$149.99

37

Latch Ass'y

269700109

$24.99

38

Latch Ass'y

269700109

$24.99

39

Latch Ass'y

269700109

$24.99

40

Latch Spring

269700017

$9.19

41

Hex. Screw M6 X 30

207063060

$1.89

42

Lock Washer Helical M6

234161601

$1.15

43

REAR ARM - Call your local BRP dealership

269500705

Unavailable

44

Hex. Screw M6 X 100

230060060

$7.41

45

Sleeve

269500706

$4.65

46

Rubber Bumper

293830005

$8.09

47

ANCHORING STUD - Call your local BRP dealership

291001242

Unavailable

48

Latch

269501487

$16.99

49

HINGE - Call your local BRP dealership

269500338

Unavailable

50

Socket Head Screw M5 X 16

205451660

$1.15

51

Flat Washer 5 mm, Stainless

234052600

$0.77

52

Hex. Elastic Nut M5 | X

232551600

$1.15

53

Pop Rivet 3/16"

204000081

$1.49

54

GLOVE BOX - Call your local BRP dealership

269501121

Unavailable

55

HEX. SCREW M6 X 60 - Call your local BRP dealership

207066060

Unavailable

56

STORAGE TRAY - Call your local BRP dealership

269500691

Unavailable

57

Seal Tray 1000Mm Long

219704368

$13.99

58

Glue Tube, Loctite 454, 20 G

413708300

$60.99

59

Rubber Bumper

293830005

$8.09

60

Not Available As Spare Part - Friction Washer

Unavailable

61

Not Available As Spare Part - Friction Washer

Unavailable

62

Number Plate Decal

289100037

Unavailable
