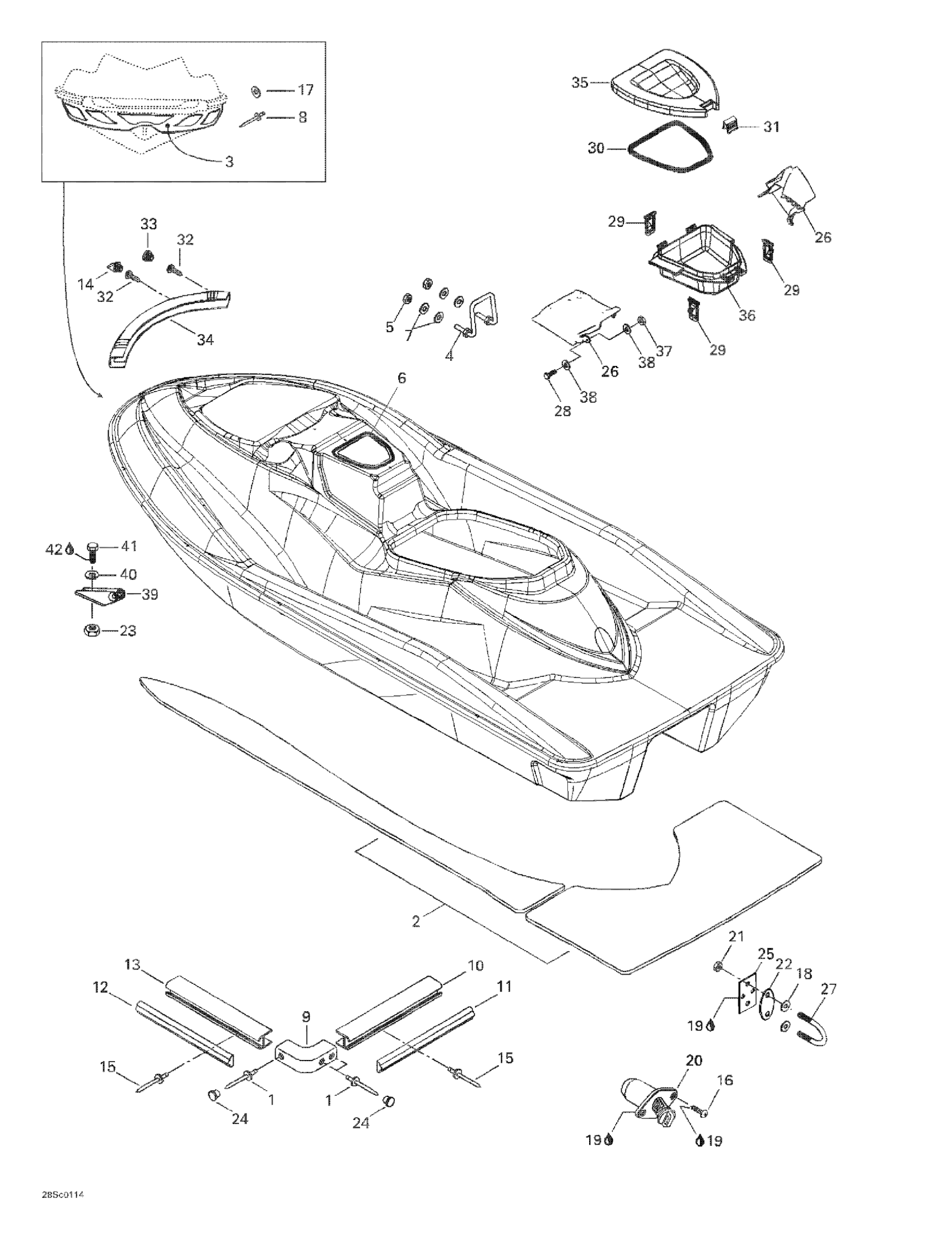

Sea-doo RX X, 5589, 2001 Body And Accessories Diagram

#

Description
Price

1

Pop Rivet 3/16"

293150013

$1.11

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

U-Clamp

291001436

Unavailable

5

Hex. Elastic Stop Nut M6

232561600

$0.92

6

Was 293250099 Gasket

219704377

$7.37

7

Flat Washer M6, Stainless

234062600

$0.64

8

Pop Rivet 3/16"

293150013

$1.11

9

Bumper Corner

291002244

$38.32

10

REAR BUMPER, BLACK - Call your local BRP dealership

291002242

Unavailable

11

SIDE BUMPER TRIM - Call your local BRP dealership

291001840

Unavailable

12

SIDE BUMPER TRIM - Call your local BRP dealership

291001840

Unavailable

13

Black, Side Bumper

204050270

$175.35

14

Bumper Plug, Black

291001040

Unavailable

15

Pop Rivet 3/16"

293150005

$0.40

16

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

17

Flat Washer 5 mm, Stainless

234052600

$0.64

18

Flat Washer M8.5 x 18

293050001

$1.29

19

Silicone Sealant 51388, 300 ml

296000309

$35.72

20

DRAIN ASSY - Call your local BRP dealership

292000685

Unavailable

21

Hex. Elastic Nut M8

232581600

$1.25

22

Black, Finition Plate

291001386

$8.57

23

Hex. Elastic Stop Nut M6

232561600

$0.92

24

Bumper Plug, Black

291000339

$2.34

25

RETAINER PLATE - Call your local BRP dealership

291001387

Unavailable

26

RH Grill Ass’Y | Includes 25 to 26

291001649

Unavailable

Grill LH (Black)

289100051

Unavailable

27

U-CLAMP - Call your local BRP dealership

292000011

Unavailable

28

Hex. Screw M6 X 30

207063060

$1.51

29

RETAINER LATCH - Call your local BRP dealership

269500820

Unavailable

30

GASKET - Call your local BRP dealership

293250100

Unavailable

31

LATCH - Call your local BRP dealership

269500719

Unavailable

32

Phillips Screw 10-14 X 7/8”

211000037

Unavailable

33

Bumper Plug, Black

291001519

$4.28

34

BUMPER NOSE, BLACK - Call your local BRP dealership

291001942

Unavailable

35

GLOVE BOX DOOR - Call your local BRP dealership

269500928

Unavailable

36

GLOVE BOX - Call your local BRP dealership

269500717

Unavailable

37

Hex. Elastic Stop Nut M6

232561600

$0.92

38

Flat Washer M6, Stainless

234062600

$0.64

39

Shock Support

291001013

Unavailable

40

Lock Washer Helical M6

234161601

$0.92

41

Hex. Screw M6 X 25

207162560

$1.22

42

Loctite 243, 10 ml

293800060

$20.77
