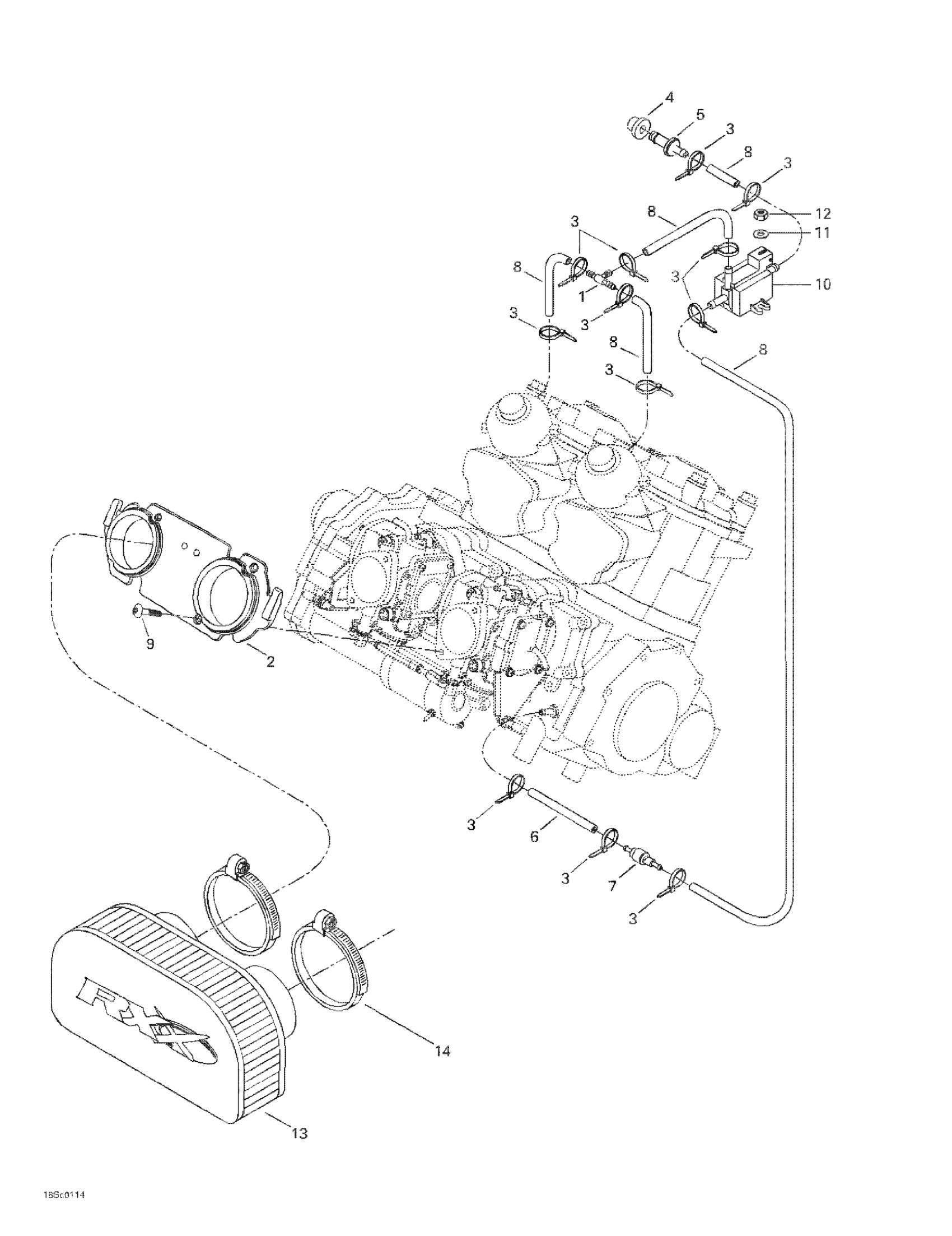

Sea-doo RX X, 5589, 2001 Air Intake System Diagram

#

Description

Price

1

T-Fitting

293710068

$8.29

2

Air Silencer Adaptor

270500383

Unavailable

3

Tie Wrap 94 mm | 4X4

293750001

$1.03

4

Grommet

293720029

$1.59

5

Fitting

293700031

Unavailable

6

Hose 6 Mm 15000Mm Long

219704360

$132.49

7

CHECK VALVE - Call your local BRP dealership

275500479

Unavailable

8

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

9

Screw

270500357

Unavailable

10

Solenoid Valve

270600005

$116.49

11

Flat Washer M5, Stainless

234051600

$0.77

12

Hex. Elastic Nut M5 | X

232551600

$1.15

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Tridon Clamp

293650064

$8.29
