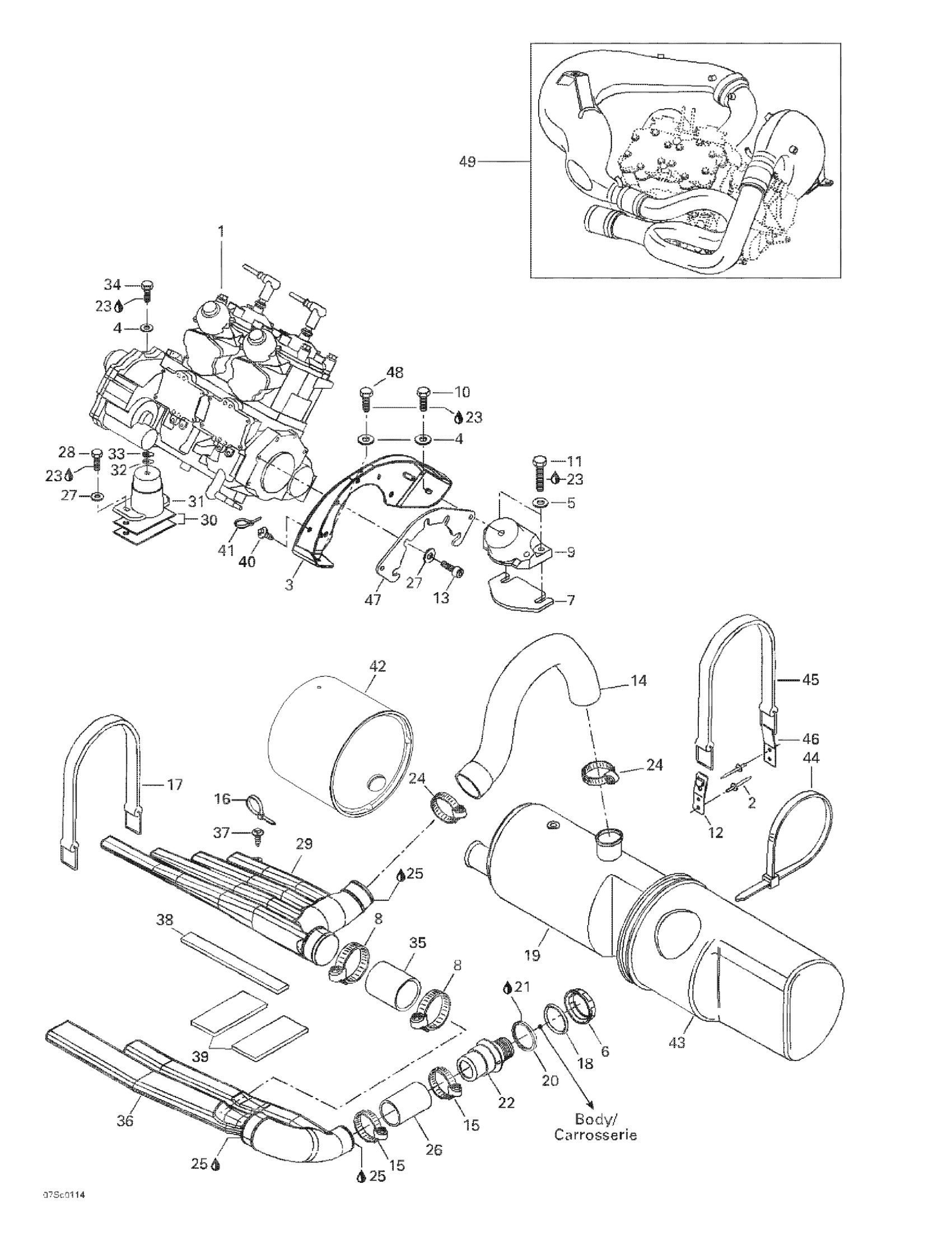

Sea-doo RX X, 5589, 2001 Engine Support And Muffler Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Avdel Rivet 3/16"

293150037

$0.56

3

Engine Support

270000359

Unavailable

4

Flat Washer 8 mm, Stainless

234082600

$2.43

5

Stainless, Flat Washer 8 mm

234081600

$0.55

6

Nut 72 mm

274000224

$16.34

7

Shim 0.3 mm

270000122

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

8

Tridon Clamp

204000079

$9.99

9

Rubber Mount, Black

270000421

Unavailable

10

Hex. Screw M8 X 16

207181660

Unavailable

11

Hex. Screw M8 X 40

207184060

$2.22

12

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

13

Socket Head Screw M8 X 25, Scotch Grip

205582560

$2.19

14

Exhaust Hose

274000834

Unavailable

15

Tridon Clamp

293650064

$8.29

16

Tie-Rap 180 mm

414115200

$0.11

17

Retainer Strap

293850097

$11.64

18

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

19

Muffler

289100025

Unavailable

20

GASKET - Call your local BRP dealership

293250041

Unavailable

21

Silicone Sealant 51388, 300 ml

296000309

$36.99

22

Exhaust Hose, Outlet

274001391

$29.49

23

Loctite 243, 10 ml

293800060

$21.49

24

Tridon Clamp

293650179

$11.49

25

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

26

Exhaust Hose

274000616

Unavailable

27

Stainless, Flat Washer 8 mm

234081600

$0.55

28

Hex. Screw M8 X 40

207184060

$2.22

29

LH UPPER RESONATOR - Call your local BRP dealership

274000700

Unavailable

30

Shim 0.3 mm

270000122

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

31

Rubber Mount, Black

270000422

Unavailable

32

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

33

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

34

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

35

EXHAUST HOSE - Call your local BRP dealership

274000726

Unavailable

36

RESONATOR EXTENSION - Call your local BRP dealership

274000701

Unavailable

37

Mount Dart

293730040

$1.04

38

Rubber Pad

274000785

Unavailable

39

RUBBER PAD - Call your local BRP dealership

274000752

Unavailable

40

Mount Dart

293730040

$1.04

41

Tie Wrap 142 mm

293750002

$1.25

42

MUFFLER COVER, FRONT - Call your local BRP dealership

274000796

Unavailable

43

Muffler Cover, Rear

274000799

Unavailable

44

WRAP_TIE 828 X 9 - Call your local BRP dealership

293750020

Unavailable

45

Fuel Tank Strap | Includes 48 - 49.

293850026

Unavailable

46

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

47

Gasket

293250110

Unavailable

48

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

49

Not Available As Spare Part - Friction Washer

Unavailable
