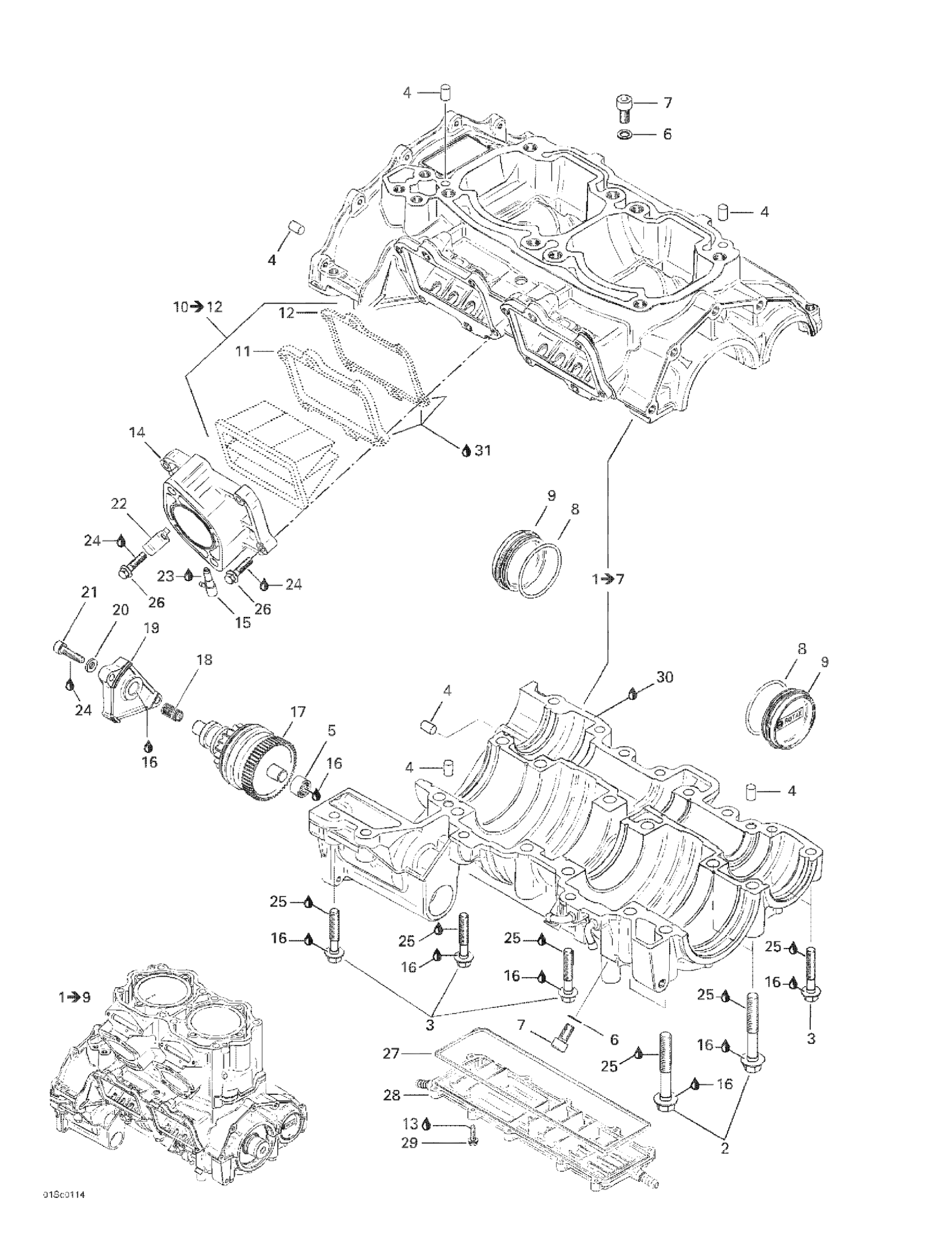

Sea-doo RX X, 5589, 2001 Crankcase Diagram

#

Description
Price

1

Short Block Ass'y | Includes 1 - 9.

270000542

Unavailable

1

Crankcase Ass'y <<947>> (Silver) | Includes 1 - 7.

290887754

Unavailable

2

Flange Screw M10 x 73,5

290941333

Unavailable

3

FLANGE SCREW M8 X 45 - Call your local BRP dealership

290940638

Unavailable

4

Center Pin 8 X 12

420632010

$3.52

5

Needle Bushing

420232482

$17.88

6

Sealing Ring

420950141

$1.88

7

Socket Head Screw M8 X 16

205081660

Unavailable

8

O-Ring

290230300

Unavailable

9

Bearing Cover

290811200

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

14

Carburator Adapter Ass'y | Includes 14 - 15.

270000543

Unavailable

15

Check Valve

420956511

$32.81

16

Dow Corning 111, 150 g

413707000

$59.99

17

Starter Drive Ass'y

420888042

$329.82

18

Spring

420938204

$6.07

19

Cover

290811210

Unavailable

20

SPRING WASHER - Call your local BRP dealership

420845020

Unavailable

21

Allen Screw M6 x 22 This part replaces 420840401.

420840403

$1.43

22

WIRE SUPPORT - Call your local BRP dealership

290953330

Unavailable

23

Sealant Loctite 648

219703000

$41.01

24

Loctite 243, 10 ml

293800060

$21.49

25

Was 413702700 Loctite 515, 50 ml

219704462

Unavailable

26

Hex. Screw M6 X 35

207063560

$2.12

27

Rubber Ring

290931880

Unavailable

28

Waterchannel Cover

290811430

Unavailable

29

Taptite Screw

290841558

Unavailable

30

Loctite 5910, 300 ml

293800081

$57.99

31

Sealant, Hylomar, 100 g

293800001

Unavailable
