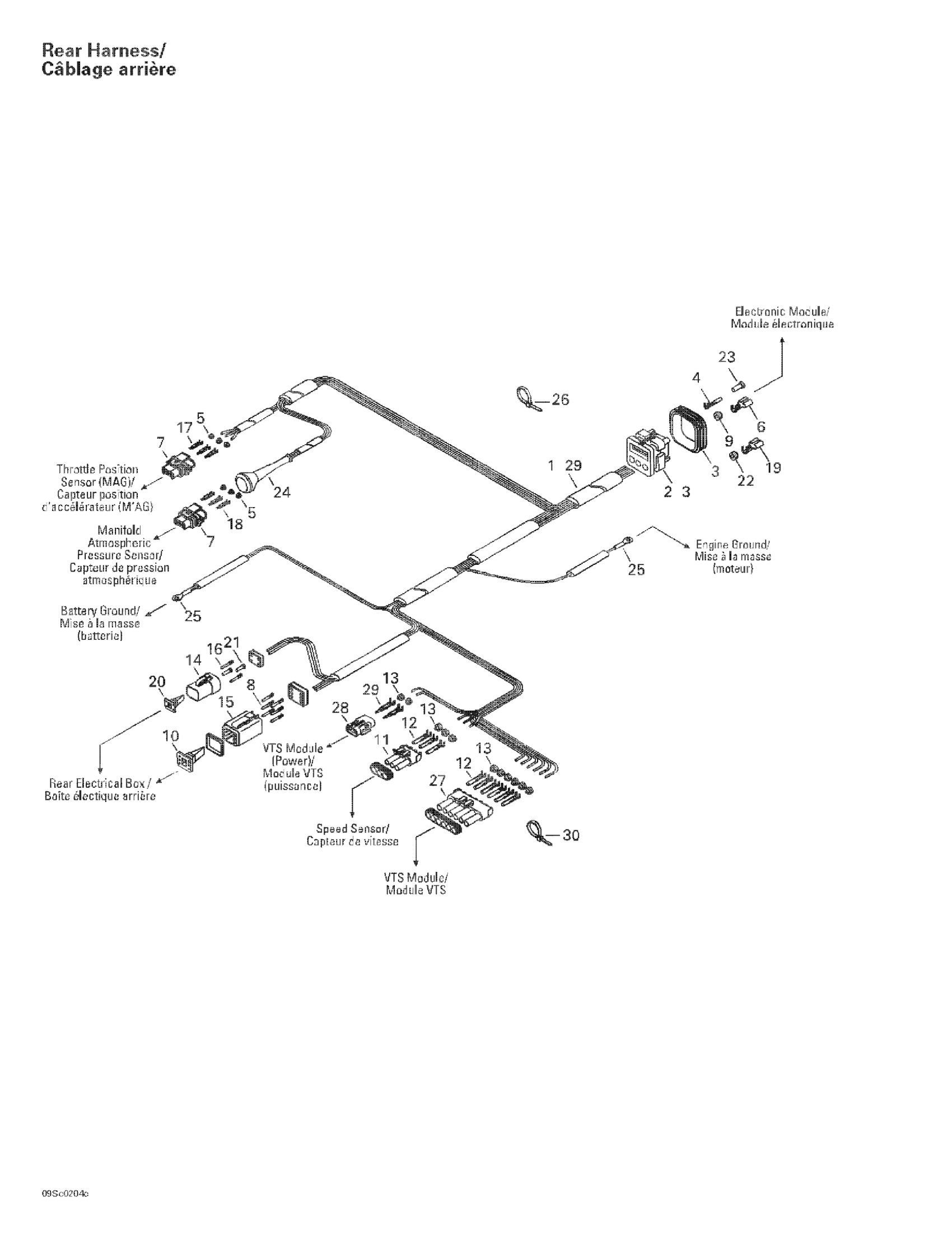

Sea-doo RX DI (LE), 5583/5584/5585, 2002 Rear Harness Diagram

#

Description
Price

1

Rear Harness | Includes 1 - 29.

278001510

Unavailable

2

MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership

278001063

$32.28

3

WIRE SEAL - Call your local BRP dealership

278001307

$11.51

4

FEMALE TERMINAL - Call your local BRP dealership

278000995

$4.58

5

Wire Seal

278000999

$2.55

6

FEMALE TERMINAL - Call your local BRP dealership

409011700

Unavailable

7

Male Housing, 3 Circuits

278000997

$15.57

8

Female Terminal

278000632

$1.69

9

Seal

278001223

Unavailable

10

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

$2.48

11

Male Housing, 3 Circuits

278000273

$7.59

12

Female Terminal

278000223

$2.55

13

Wire Seal

278000218

$3.48

14

Female Terminal Housing, 4 Circuits

278001473

$25.35

15

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.97

16

FEMALE TERMINAL - Call your local BRP dealership

515175260

$7.09

17

Female Terminal

278000998

$3.48

18

FEMALE TERMINAL - Call your local BRP dealership

278001210

$8.43

19

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

20

Female Lock, 4 Circuits

278001474

$3.02

21

Sealing Cap

293000052

$2.55

22

WIRE SEAL - Call your local BRP dealership

278000996

$2.37

23

SEALING CAP - Call your local BRP dealership

293000070

$4.58

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Open Barrel Terminal

278001392

$4.12

26

Tie Wrap 142 mm

293750002

$0.88

27

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

28

Female Housing, 2 Circuits

278000217

$7.59

29

Male Terminal

409004300

$5.46

30

Tie Wrap 368 mm

293750008

$0.85
