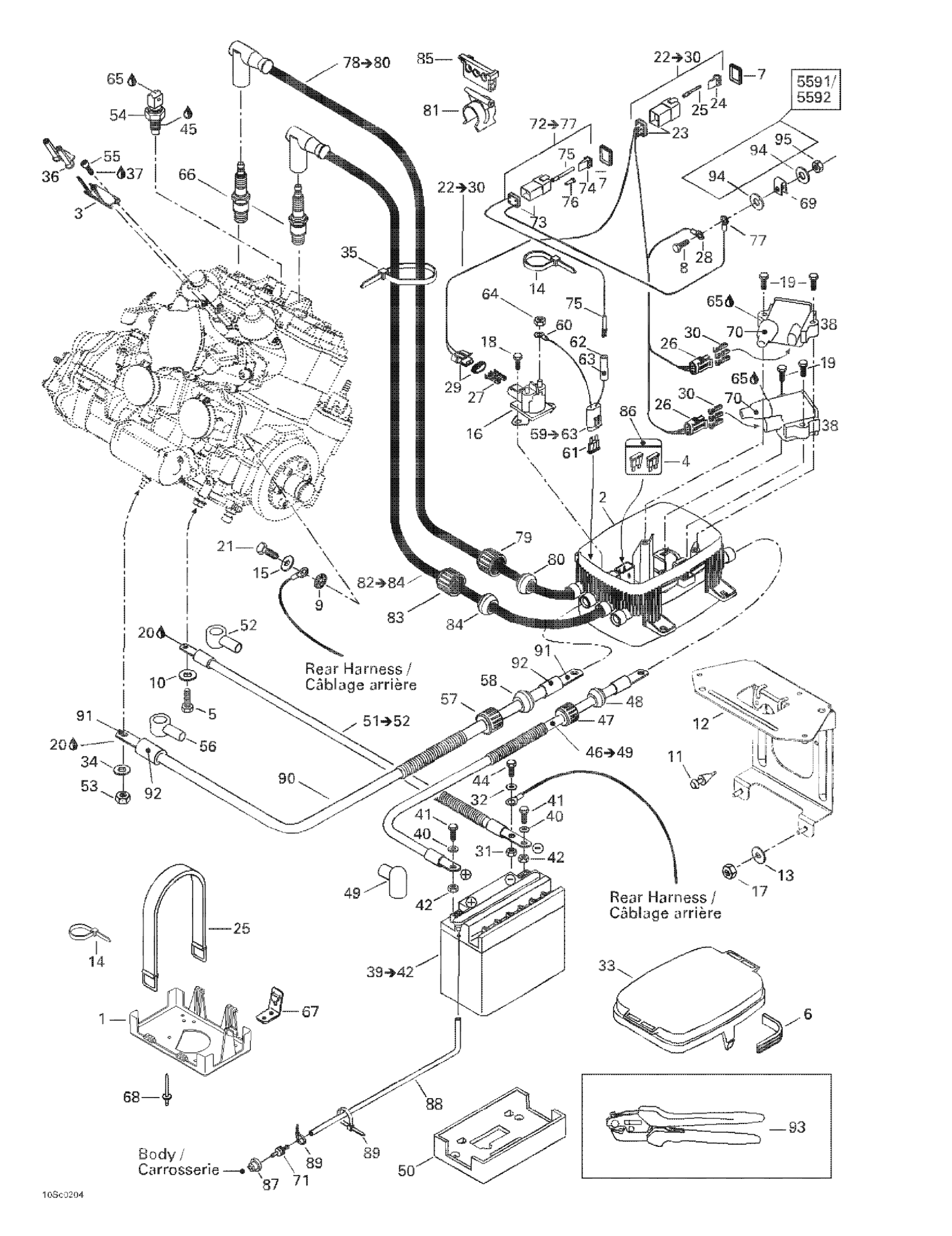

Sea-doo RX DI (LE), 5583/5584/5585, 2002 Rear Electrical Box Diagram

#

Description
Price

1

Battery Support

278001430

Unavailable

2

Electric Box Base

278001761

Unavailable

Electric box base (5591/5592)

278001504

Unavailable

3

GROUND PLATE - Call your local BRP dealership

278001662

Unavailable

4

Fuse, 25 Amperes

278001443

$3.28

Fuse, 15 Amperes

278000343

$3.28

5

Hex. Screw M10 X 20, Scotch Grip

207302060

$4.02

6

GASKET - Call your local BRP dealership

278001173

Unavailable

7

Gasket

293200030

Unavailable

8

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.15

Hex. Screw M6 X 16

207161660

$1.59

9

External Serrated Lock Washer 6 mm

234461608

$1.15

10

Flat Washer 10 mm, Stainless

234001600

$1.15

11

Rubber Bumper

293830005

$8.09

12

BOX SUPPORT - Call your local BRP dealership

278001615

Unavailable

13

Flat Washer M6, Stainless

234062600

$0.77

14

Tie Wrap 142 mm

293750002

$1.25

15

Stainless Flat Washer M6

234061600

$0.33

16

Starter Relay

278003012

$42.49

17

Hex. Elastic Stop Nut M6

232561600

$1.15

18

Hex. Flange Screw M6 X 10

210261040

$1.48

19

SCREW-TAPP.HEX.ISO.1479F - Call your local BRP dealership

209463840

Unavailable

20

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

21

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

22

Box Harness | Includes 17 to 25

278001458

Unavailable

23

Male Terminal Housing, 6 Circuits

710001539

$19.99

24

Female Lock, 6 Circuits

278000735

$3.19

25

Retainer Strap

293850097

$11.64

26

MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

278001467

Unavailable

27

Female Terminal

278001114

$3.19

28

Open Barrel Terminal

278001392

$4.79

29

Male Connector, 2 Circuits

278001113

$16.86

30

FEMALE TERMINAL - Call your local BRP dealership

278001468

Unavailable

31

Hex. Elastic Stop Nut M6

232561600

$1.15

32

Stainless Flat Washer M6

234061600

$0.33

33

ELECTRIC BOX COVER - Call your local BRP dealership

278001433

Unavailable

34

Stainless Flat Washer M6

234061600

$0.33

35

Tie Wrap 142 mm

293750002

$1.25

36

INSULATOR - Call your local BRP dealership

278001512

Unavailable

37

Loctite 243, 10 ml

293800060

$21.49

38

IGNITION COIL - Call your local BRP dealership

278001451

Unavailable

39

Battery 19A | Includes 5 to 8

278001756

$153.36

40

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

41

Hex. Screw M6 X 16

207161644

$0.74

42

Hex. Nut M6

232061414

$0.53

43

Retainer Strap

293850097

$11.64

44

Hex. Cap Screw M6 X 12

207161260

$1.26

45

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

46

Battery Cable (Red) | Includes 62 - 65.

278001522

Unavailable

47

Electric Wire Cap

278000100

Unavailable

48

GROMMET - Call your local BRP dealership

278000098

Unavailable

49

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

50

Lower Battery Pad

278001746

Unavailable

51

Ground Cable, Black

278001462

Unavailable

52

Wire Cap (Black)

278001491

Unavailable

53

Hex. Elastic Stop Nut M6

232561600

$1.15

54

Temperature Sensor

278002895

$39.99

55

Socket Head Screw M6 X 25

205062560

$1.69

56

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

57

Electric Wire Cap

278000100

Unavailable

58

GROMMET - Call your local BRP dealership

278000098

Unavailable

59

Fuse Harness, 30 Amperes | Includes 37 to 41

278001453

Unavailable

60

Open Barrel Terminal

278001392

$4.79

61

Fuse, 30 Amperes

410917200

$3.28

62

FEMALE TERMINAL - Call your local BRP dealership

515175260

Unavailable

63

Deutsch Joint Housing

515175259

Unavailable

64

Hex. Elastic Stop Nut M6

232561600

$1.15

65

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

66

Spark Plug NGK Zfr4f-11

278001650

$6.35

67

STRAP CLIP - Call your local BRP dealership

293850075

Unavailable

68

Avdel Rivet 3/16"

293150037

$0.56

69

U Type Nut M6

250100029

Unavailable

70

PROTECTOR CAP - Call your local BRP dealership

278001470

Unavailable

71

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

72

ELECTRIC BOX HARNESS ASS'Y - Call your local BRP dealership | Includes 26 to 30

278001494

Unavailable

73

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

74

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

75

MALE TERMINAL - Call your local BRP dealership

515175261

Unavailable

76

Sealing Cap

293000052

$3.19

77

Open Barrel Terminal

278001392

$4.79

78

COIL CABLE, 735 MM - Call your local BRP dealership | Includes 31 to 33

278001454

Unavailable

79

Electric Wire Cap

278000100

Unavailable

80

Grommet

278000682

Unavailable

81

COLLAR SUPPORT - Call your local BRP dealership

278000559

Unavailable

82

Coil Cable, 560 mm | Includes 49 to 51

278001521

Unavailable

83

Electric Wire Cap

278000100

Unavailable

84

Grommet

278000682

Unavailable

85

Wire Support

278001597

Unavailable

86

Not Available As Spare Part - Friction Washer

Unavailable

87

Grommet

293720029

$1.59

88

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

89

Tie Wrap 94 mm | 4X4

293750001

$1.03

90

Starter Positive Cable, Red | Includes 34,35,75,89,90

278001091

Unavailable

91

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

92

Not Available As Spare Part - Friction Washer

Unavailable

93

Not Available As Spare Part - Friction Washer

Unavailable

94

Flat Washer 6 mm

234062410

$0.77

95

Hex. Elastic Stop Nut M6

232561600

$1.15
