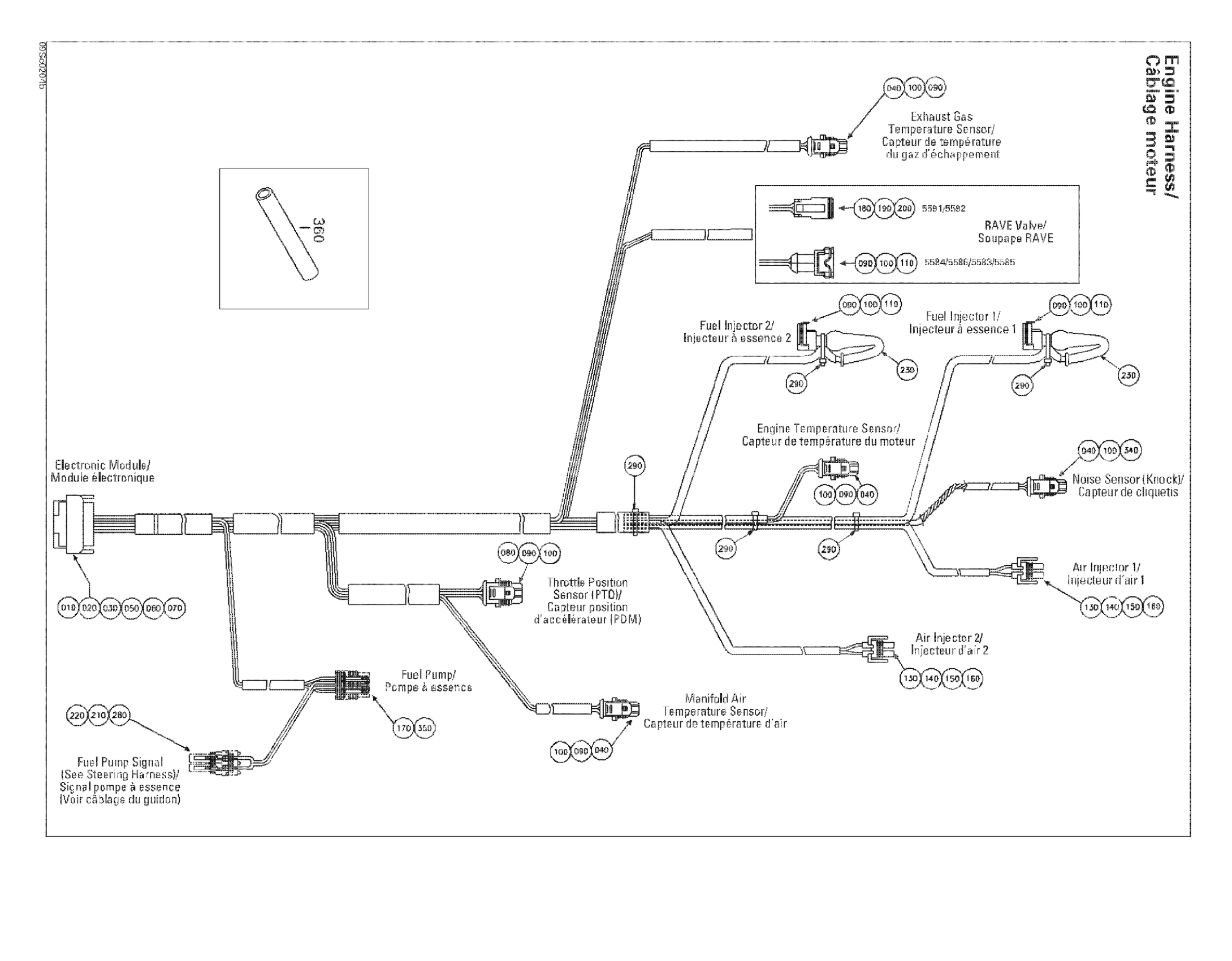

Sea-doo RX DI (LE), 5583/5584/5585, 2002 Engine Harness Diagram

#

Description
Price

10

Engine Harness | Includes 10 - 360.

278001748

Unavailable

Engine Harness | RX DI 5591/5592.

278000511

Unavailable

10

MALE CONNECTOR, 26 CIRCUITS - Call your local BRP dealership

278001211

$35.35

11

WIRE SEAL - Call your local BRP dealership

278001307

$11.51

20

FEMALE TERMINAL - Call your local BRP dealership

278000995

$4.58

30

WIRE SEAL - Call your local BRP dealership

278000996

$2.37

Female Terminal

278000223

$2.55

40

Male Housing, 2 Circuits

278001005

$15.57

50

SEAL - Call your local BRP dealership

409013900

$9.20

60

SEALING CAP - Call your local BRP dealership

293000070

$4.58

70

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

80

Male Housing, 3 Circuits

278000997

$15.57

90

Female Terminal

278000998

$3.48

100

Wire Seal

278000999

$2.55

110

Male Connector, 2 Circuits

278001003

$44.58

130

MALE CONNECTOR, 2 CIRCUITS - Call your local BRP dealership

278001480

$10.74

140

Female Terminal

278001481

$3.02

150

Seal

278001482

$2.55

160

LOCK, 2 CIRCUITS - Call your local BRP dealership

278001483

$2.28

170

MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership

278001308

Unavailable

180

Female Connector, 2 Circuits

409207300

$9.60

190

Female Terminal

278000632

$1.69

200

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

210

Female Terminal

278000223

$2.55

220

Wire Seal

278000218

$3.48

230

RUBBER CAP - Call your local BRP dealership

278001484

$25.35

280

Male Connector, 2 Circuits

278000220

$11.02

290

Tie Wrap 94 mm | 4X4

293750001

$0.83

300

Tie Wrap 142 mm

293750002

$0.88

340

FEMALE TERMINAL - Call your local BRP dealership

278001210

$8.43

350

Female Terminal

278001114

$2.55

360

Housing 9 mm, Meter

293100012

Unavailable

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

$37.66

Pvc Vinyl Tubing

293100011

Unavailable

Heat Shrink Tubing 25 mm

512059668

Unavailable
