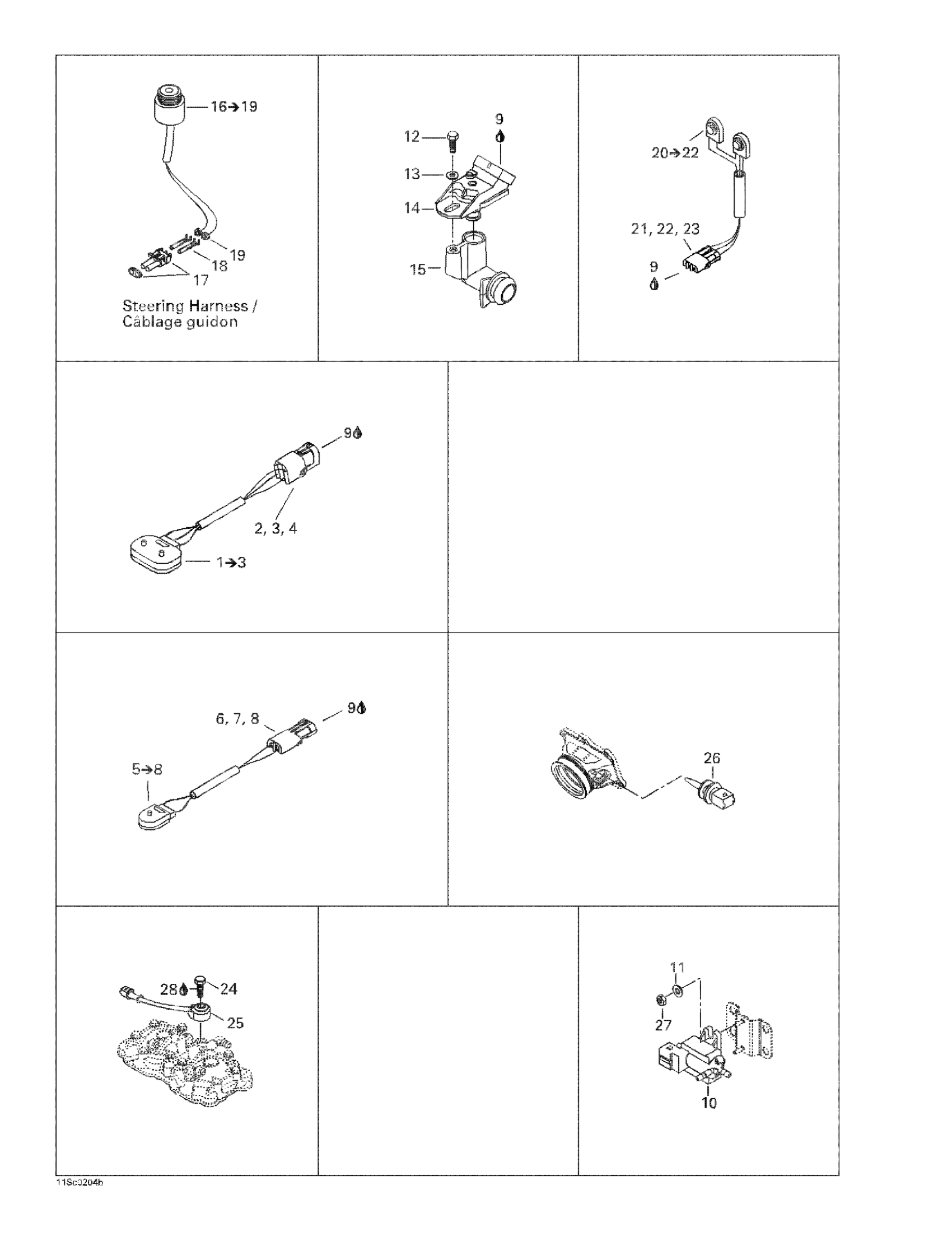

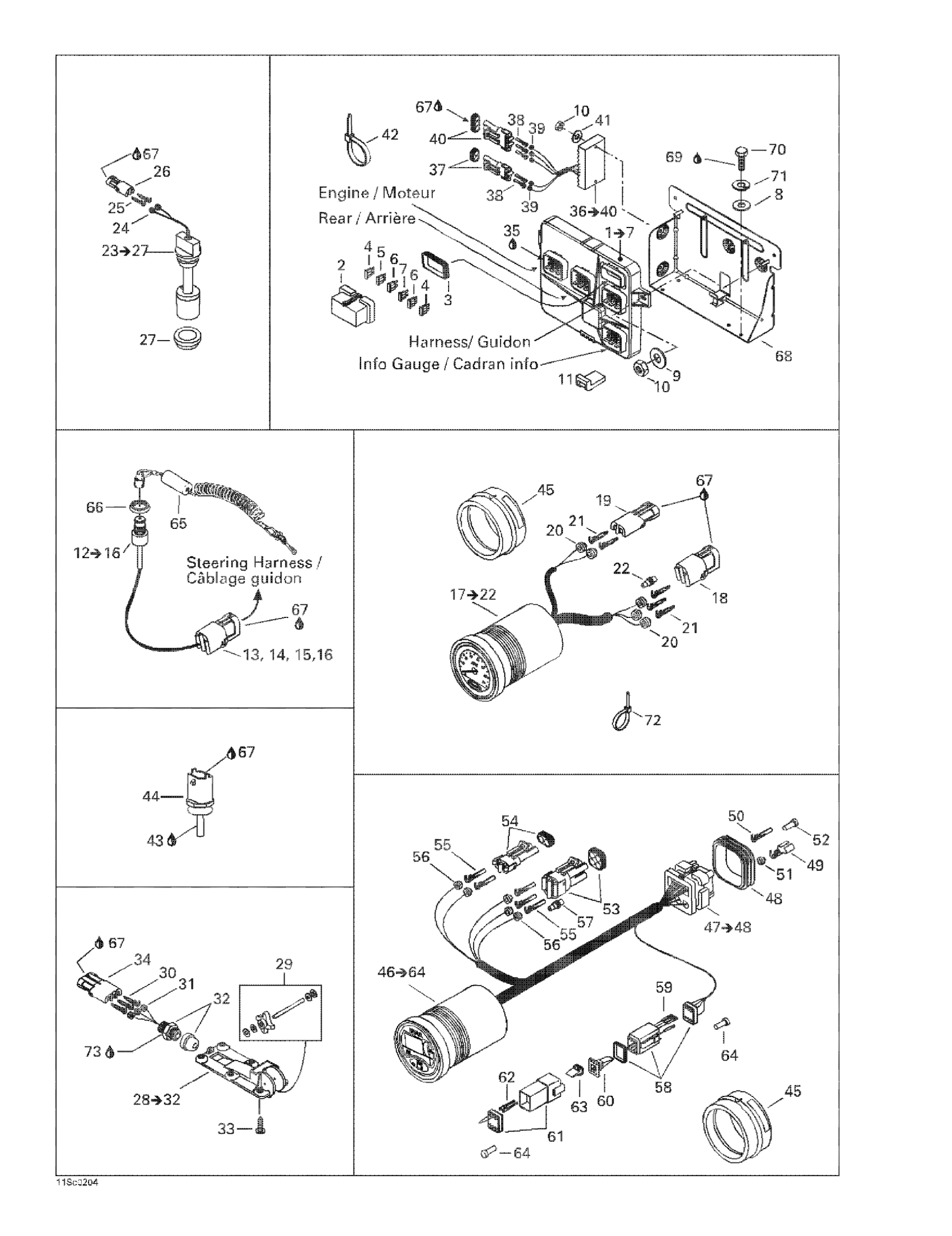

Sea-doo RX DI (LE), 5583/5584/5585, 2002 Electronic Module And Electrical Accessories Diagram

Electronic Module Ass'y | Includes 6 to 12

278001747

Unavailable

ELECTRONIC MODULE ASS'Y (5591/5592) - Call your local BRP dealership

278001695

Unavailable

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

$36.99

Cover Seal

278001070

Unavailable

Fuse, 15 Amperes

278000343

$3.28

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

Fuse, 25 Amperes

278001443

$3.28

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

Flat Washer 5 mm, Stainless

234052600

$0.77

Flat Washer M6, Stainless

234062600

$0.77

Hex. Elastic Stop Nut M6

232561600

$1.15

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

Safety Switch | Includes 15 - 19.

278000977

Unavailable

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

Male Terminal | XT Models

278000222

$3.19

Wire Seal

278000218

$4.39

Wire Seal

278000216

$3.19

Speedometer | Includes 17 - 22.

278001619

Unavailable

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

Female Housing, 2 Circuits

278000217

$9.59

Wire Seal

278001065

$7.69

Male Terminal | XT Models

278000222

$3.19

Wire Seal

278000216

$3.19

OIL SENSOR - Call your local BRP dealership | Includes 18 to 22

278001515

Unavailable

Wire Seal

278000218

$4.39

Male Terminal | XT Models

278000222

$3.19

Female Housing, 2 Circuits

278000217

$9.59

Grommet

293720008

$14.75

Speed Sensor | Includes 26 to 30 / LE

278001595

Unavailable

Paddle Wheel Kit

295500108

Unavailable

Male Terminal | XT Models

278000222

$3.19

Wire Seal

278000218

$4.39

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

Phillips Screw M5 x 12

250000319

$1.39

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

*(Ormd) *Deoxit Aerosol *

293550034

$38.99

Rectifier Ass’Y | Includes 30 - 34.

278001554

$209.99

Male Connector, 2 Circuits

278000220

$15.49

Female Terminal

409007300

$0.45

Wire Seal

278000218

$4.39

Male Housing, 3 Circuits

278000273

$9.59

Stainless Flat Washer M6

234061600

$0.33

Tie Wrap 368 mm

293750008

$1.04

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

Temperature Sensor

278002895

$39.99

Gauge Support

293720047

Unavailable

LCD Info Gauge | Includes 46 - 64.

278001626

Unavailable

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

Male Connector, 2 Circuits

278000220

$15.49

Female Terminal

278000223

$3.19

Wire Seal

278001065

$7.69

Wire Seal

278000216

$3.19

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

Female Terminal

278000632

$2.09

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

Male Terminal Housing, 6 Circuits

710001539

$19.99

Male Terminal

278000631

$4.39

Female Lock, 6 Circuits

278000735

$3.19

Sealing Cap

293000052

$3.19

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$84.99

Safety Nut (DESS Switch)

278002963

$3.28

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

Module Support

278001516

Unavailable

Loctite 271, 10 ml

293800005

$26.99

Screw Plastite

243042660

Unavailable

WASHER-LOCK IMPERIAL - Call your local BRP dealership

211200043

Unavailable

Tie-Rap 180 mm

414115200

$0.11

Was 293800013 Loctite 56765

219704454

$65.99
