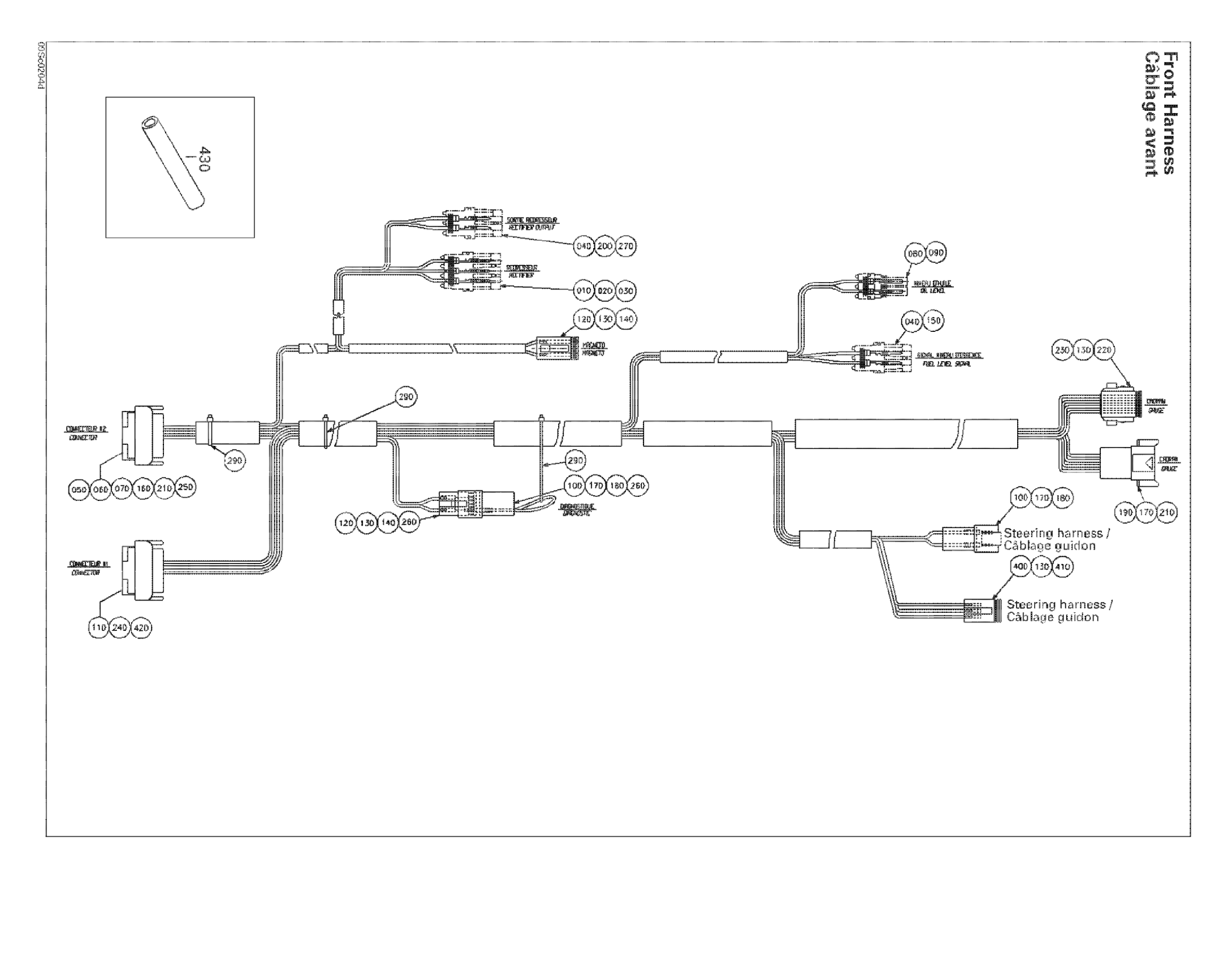

Sea-doo RX DI (LE), 5583/5584/5585, 2002 Electrical Harness Diagram

#

Description
Price

10

Front Harness Ass'y | Includes 10 - 430.

278001729

Unavailable

10

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

20

Male Terminal

409004300

$5.61

30

Wire Seal

278000218

$4.39

40

Female Housing, 2 Circuits

278000217

$9.59

50

Male Terminal Housing, 26 Circuits

278001062

Unavailable

51

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

60

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

70

Seal

278001223

Unavailable

80

Male Connector, 2 Circuits

278000220

$15.49

90

Female Terminal

278000223

$3.19

100

Male Terminal Housing, 6 Circuits

710001539

$19.99

110

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

120

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

130

Female Terminal

278000632

$2.09

140

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

150

Male Terminal | XT Models

278000222

$3.19

160

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

170

Male Terminal

278000631

$4.39

180

Female Lock, 6 Circuits

278000735

$3.19

190

MALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

278001742

Unavailable

200

MALE TERMINAL - Call your local BRP dealership

278001576

Unavailable

210

LOCK MALE, 8 CIRCUITS - Call your local BRP dealership

515175276

Unavailable

220

MALE HOUSING, 8 CIRCUITS - Call your local BRP dealership

278001743

Unavailable

230

SECONDARY LOCK, 8 CIRCUITS - Call your local BRP dealership

278001744

Unavailable

240

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

250

FEMALE TERMINAL - Call your local BRP dealership

409011700

Unavailable

260

Sealing Cap

293000052

$3.19

270

WIRE SEAL - Call your local BRP dealership

278001505

Unavailable

290

Tie Wrap 142 mm

293750002

$1.25

400

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$30.99

410

Female Lock

409207200

$4.39

420

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

430

Housing 9 mm, Meter

293100012

Unavailable

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

Pvc Vinyl Tubing

293100011

Unavailable

Heat Shrink Tubing 25 mm

512059668

Unavailable
