- RX DI (LE), 5583/5584/5585, 2002
09- Body, Rear View

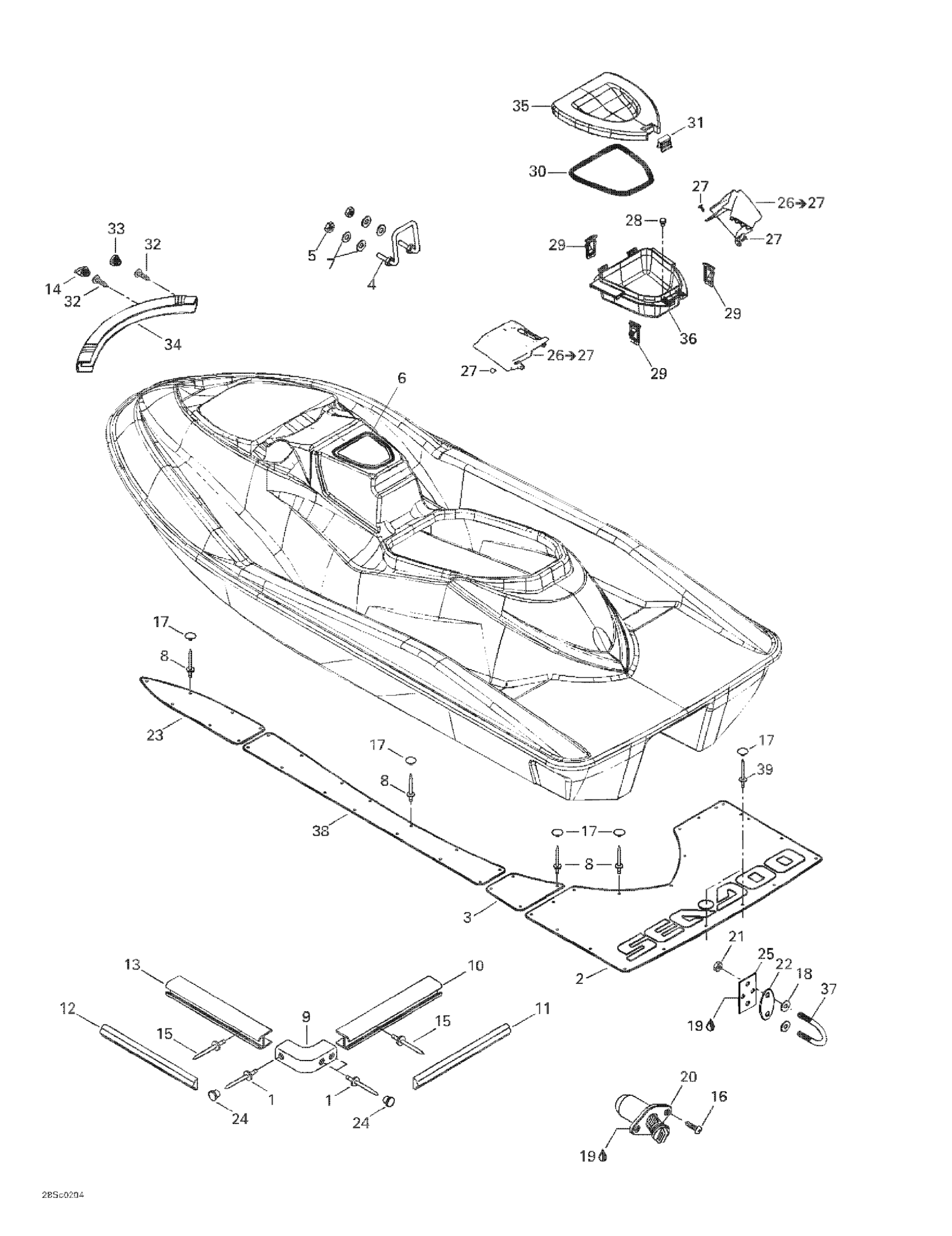

Sea-doo RX DI (LE), 5583/5584/5585, 2002 09- Body, Rear View Diagram
#
1
Pop Rivet 3/16"
293150013
$1.37
2
Rear Carpet (Black)
291001381
Unavailable
3
RH Rear Carpet | GTI LE RFI
291001464
Unavailable
LH Rear Carpet | GTI LE RFI
291001465
Unavailable
4
U-Clamp
291001436
Unavailable
5
Hex. Elastic Stop Nut M6
232561600
$1.15
6
Was 293250099 Gasket
219704377
$7.20
7
Flat Washer M6, Stainless
234062600
$0.77
8
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
9
Bumper Corner
291002244
$48.99
10
REAR BUMPER, BLACK - Call your local BRP dealership
291002242
Unavailable
11
Rear Bumper Trim | Blue (B-544) GTX 4-TEC 6125/6126.
291001540
Unavailable
SIDE BUMPER TRIM - Call your local BRP dealership
291001840
Unavailable
12
Side Bumper Trim (Blue) | RX DI BLUE/BLEU.
291001539
Unavailable
SIDE BUMPER TRIM - Call your local BRP dealership
291001840
Unavailable
13
Black, Side Bumper
204050270
$179.99
14
Bumper Plug, Black
291001040
$7.39
15
Pop Rivet 3/16"
293150005
$0.52
16
PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership
211000021
Unavailable
17
Black, Snap Cap
293000014
$1.09
18
Flat Washer M8.5 x 18
293050001
$3.07
19
Silicone Sealant 51388, 300 ml
296000309
$36.99
20
DRAIN ASSY - Call your local BRP dealership
292000685
Unavailable
21
Hex. Elastic Nut M8
232581600
$1.48
22
Black, Finition Plate
291001386
$10.99
23
RH Front Carpet | GTI LE RFI
291001384
Unavailable
LH Front Carpet | GTI LE RFI
291001385
Unavailable
24
Bumper Plug, Black
291000339
$2.99
25
RETAINER PLATE - Call your local BRP dealership
291001387
Unavailable
26
RH Grill Ass’Y | Includes 25 to 26
291001649
Unavailable
LH GRILL ASSY - Call your local BRP dealership | Includes 25 to 26
291001650
Unavailable
27
Black Dart
293730010
$0.99
28
Rubber Bumper
293830005
$8.09
29
RETAINER LATCH - Call your local BRP dealership
269500820
Unavailable
30
GASKET - Call your local BRP dealership
293250100
Unavailable
31
LATCH - Call your local BRP dealership
269500719
Unavailable
32
Phillips Screw 10-14 X 7/8”
211000037
Unavailable
33
Bumper Plug, Black
291001519
$5.49
34
BUMPER NOSE, BLACK - Call your local BRP dealership
291001942
Unavailable
35
GLOVE BOX DOOR - Call your local BRP dealership
269500928
Unavailable
36
GLOVE BOX - Call your local BRP dealership
269500717
Unavailable
37
U-CLAMP - Call your local BRP dealership
292000011
Unavailable
38
RH Center Carpet (Black)
291001382
Unavailable
LH Center Carpet (Black)
291001383
Unavailable
39
Rivet 1/8"
293150016
$0.40
