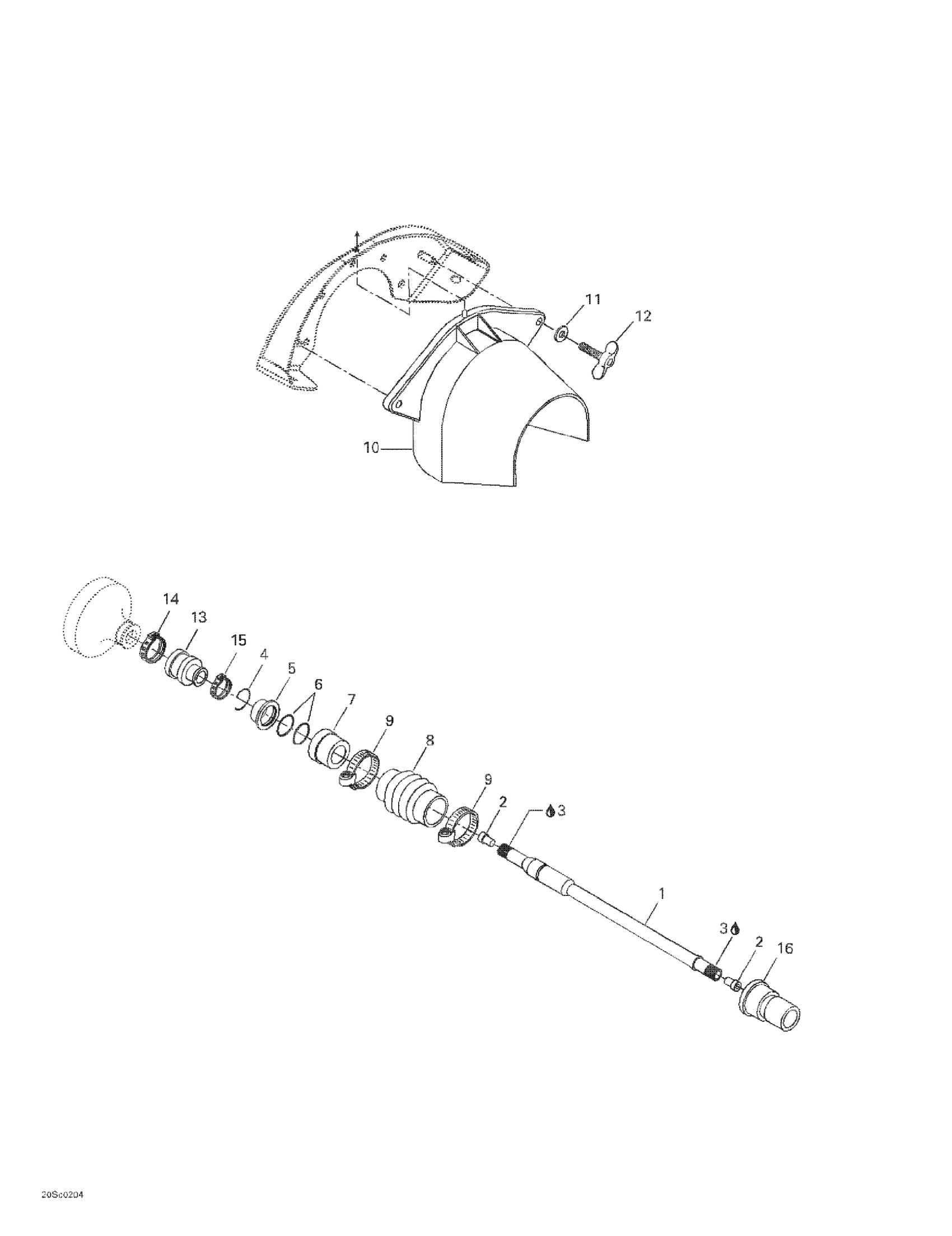

Sea-doo RX DI (LE), 5583/5584/5585, 2002 Drive System Diagram

#

Description
Price

1

DRIVE SHAFT - Call your local BRP dealership

272000151

Unavailable

2

DRIVE SHAFT PLUG - Call your local BRP dealership

272000019

Unavailable

3

Synthetic Grease, 400 G

293550010

Unavailable

4

C-CLIP - Call your local BRP dealership

272000135

Unavailable

5

Support Ring

272000064

$66.49

6

O-Ring

293300032

$6.03

7

Carbon Ring

272000770

$45.99

8

BELLOWS - Call your local BRP dealership

272000184

$27.99

9

Norma Clamp

293650075

$11.06

10

FLYWHEEL GUARD - Call your local BRP dealership

272000094

Unavailable

11

Flat Washer 8 mm, Stainless

234082600

$2.43

12

Wing Screw M8 X 25

207982510

Unavailable

13

RUBBER BOOT - Call your local BRP dealership

272000001

Unavailable

14

OETIKER CLAMP - Call your local BRP dealership

293650021

Unavailable

15

OETIKER CLAMP - Call your local BRP dealership

293650067

Unavailable

16

HULL INSERT, 33 MM - Call your local BRP dealership

292000075

Unavailable
