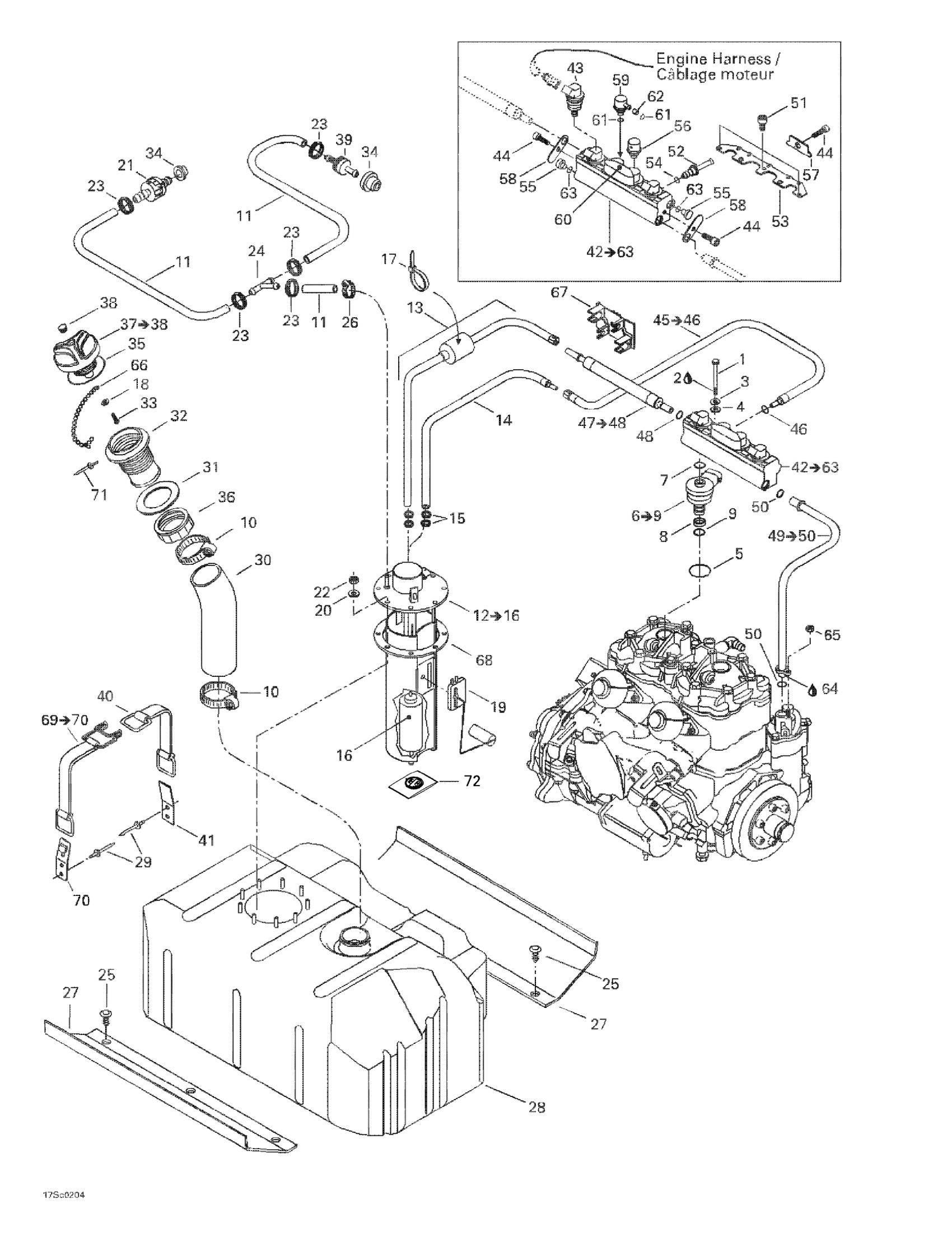

Sea-doo RX DI (LE), 5583/5584/5585, 2002 Fuel System Diagram

#

Description
Price

1

HEX. SCREW M8 X 70 - Call your local BRP dealership

207087060

Unavailable

2

Loctite 243, 10 ml

293800060

$21.49

3

Lock Washer 8 mm, Stainless

234181601

$0.55

4

Stainless, Flat Washer 8 mm

234081600

$0.55

5

O-Ring

293300083

Unavailable

O-Ring (5591/5592)

293300054

Unavailable

6

Air Injector | Includes 45 to 48

275500633

$329.99

Injecteur D'Air*Injector-Air This part replaces 275500512.

219700275

$709.99

7

O-Ring

293300084

Unavailable

O-Ring (5591/5592)

293300066

$7.94

8

INJECTOR RING - Call your local BRP dealership

270600030

Unavailable

9

O-Ring

293300076

Unavailable

10

Tridon Clamp

293650023

$13.49

11

Was 275500549 Hose 1/4"

219704357

$194.99

12

Module Essence *Module-Fuel Ass'Y | Includes 20 - 24. This part replaces 275500540.

275500641

$1.00

Module Essence *Module-Fuel Ass'Y | Includes 20 - 24. This part replaces 275500540.

275500641

$1.00

13

Fuel Feeding Hose Ass'y

275500559

Unavailable

Fuel Feeding Hose Ass'y (5591/5592)

275500547

Unavailable

14

Fuel Return Hose Ass'y

275500508

Unavailable

15

Oetiker Clamp

293650140

$2.69

Module Essence *Module-Fuel Ass'Y | Includes 20 - 24. This part replaces 275500540.

275500641

$1.00

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Tie Wrap 368 mm

293750008

$1.04

18

Flat Washer M3, Stainless

234032600

$0.55

19

Sensor Level

270600012

Unavailable

20

Flat Washer 5 mm, Stainless

234052400

$2.85

21

Check Valve

275500505

$31.99

22

Elastic Stop Nut 5 mm

232551200

$1.47

23

Oetiker Gear Clamp

293650025

$3.09

24

Y-Fitting

293710059

$9.69

25

Black, Dart

293730006

$0.99

26

Tridon Gear Clamp

293650170

$1.99

27

Rubber Pad

293830077

Unavailable

28

Fuel Tank

275500427

Unavailable

29

Avdel Rivet 3/16"

293150037

$0.56

30

Filler Neck Hose

275500434

Unavailable

31

Gasket

293250029

$14.82

32

Filler Neck, Fuel

275500231

$14.75

33

Screw K40 X 10

241140060

$1.48

34

Grommet

293720029

$1.59

35

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

36

Filler Neck Nut, Fuel

211100012

$14.22

37

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$27.49

38

Black, Snap Cap

293000034

$9.39

39

Check Valve

275500398

$10.99

40

Fuel Tank Strap

293850036

$18.99

41

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

42

Fuel Distributor | Includes 42 - 63.

275500541

Unavailable

Fuel Distributor (5591/5592)

275500510

Unavailable

43

Fuel Injector

275500460

$329.99

44

Socket Head Screw M6 X 12

205061260

$1.58

45

Hose Ass'y (Fuel Return) | INCLUDES 76 TO 77

275500511

Unavailable

46

O-Ring

293300070

Unavailable

47

Hose Ass'y (Fuel Supply) | INCLUDES 74 TO 75

275500519

Unavailable

48

O-RING - Call your local BRP dealership

293300069

Unavailable

49

Pressure Hose | INCLUDES 72 TO 73

270600022

Unavailable

50

O-Ring

293300070

Unavailable

51

SOCKET HEAD SCREW M5 X 12 - Call your local BRP dealership

205051260

Unavailable

52

AIR ADAPTER - Call your local BRP dealership

275500538

Unavailable

53

RETAINER PLATE - Call your local BRP dealership

275500543

Unavailable

Retainer Plate (5591/5592)

275500461

Unavailable

54

O-RING - Call your local BRP dealership

293300069

Unavailable

55

Cap

275500544

Unavailable

Cap (5591/5592)

275500535

Unavailable

56

Air Regulator

275500463

Unavailable

57

RETAINER PLATE - Call your local BRP dealership

275500456

Unavailable

58

RETAINER PLATE - Call your local BRP dealership

275500455

Unavailable

59

FUEL REGULATOR - Call your local BRP dealership

275500464

Unavailable

60

Cover

275500449

Unavailable

61

O-Ring

293300072

Unavailable

62

SPACER - Call your local BRP dealership

275500465

Unavailable

63

O-RING - Call your local BRP dealership

293300073

Unavailable

64

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

65

Hex. Elastic Stop Nut M6

232561600

$1.15

66

Fuel Cap Chain

275500974

$19.99

67

Clamp Tie

291001399

Unavailable

68

Gasket

293250088

$14.99

69

FUEL TANK STRAP - Call your local BRP dealership | Includes 10 to 12

293850037

Unavailable

70

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

71

Pop Rivet 1/8"

390407900

$1.49

72

Fuel Filter, Bosch

219700368

$39.99
