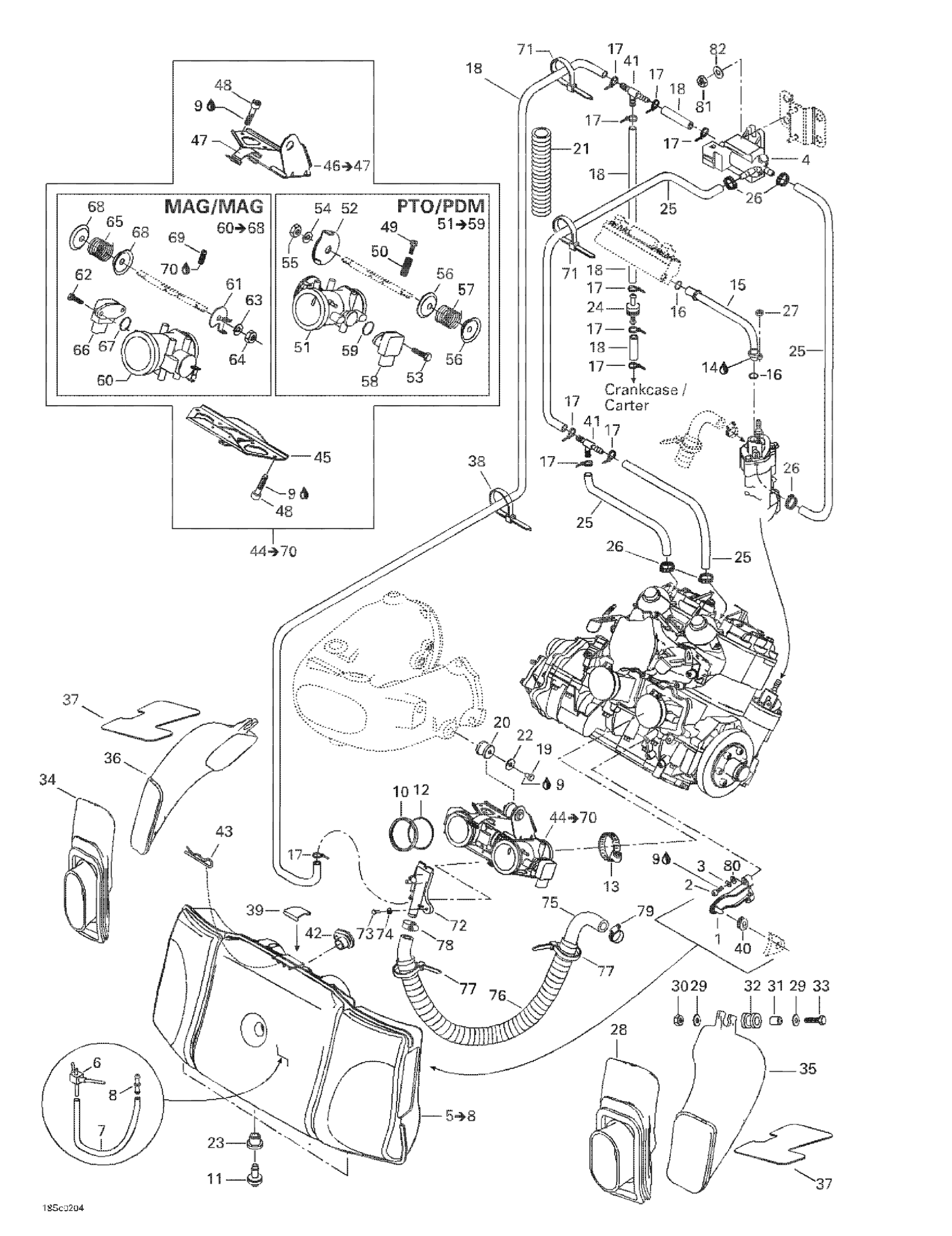

Sea-doo RX DI (LE), 5583/5584/5585, 2002 Air Intake System Diagram

#

Description
Price

1

Silencer Support

273000123

Unavailable

2

Socket Head Screw M6 X 35

205063560

$1.85

3

Stainless Flat Washer M6

234061600

$0.25

4

SOLENOID VALVE - Call your local BRP dealership

270600044

Unavailable

5

Air Silencer | Includes 18 to 21

273000209

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Was 415080100 Fuel Line Primer 3,2mm

219704409

$9.15

8

CONNECTOR - Call your local BRP dealership

293710107

$0.93

9

Loctite 243, 10 ml

293800060

$20.77

10

Gasket

293250122

$60.42

11

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

12

O-Ring

293250065

Unavailable

13

Norma Clamp

293650079

$8.89

14

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

15

Pressure Hose | INCLUDES 72 TO 73

270600022

Unavailable

16

O-Ring

293300070

Unavailable

17

Tie Wrap 94 mm | 4X4

293750001

$0.83

18

Was 420660574 Pressure Hose 280 mm

219704352

$202.21

19

HEX. SCREW M8 X 12 - Call your local BRP dealership

207181260

Unavailable

20

Rubber Isolator

707000949

$9.00

21

Pvc Vinyl Tubing

293100011

Unavailable

22

Flat Washer 8 mm, Stainless

234082600

$1.98

23

GROMMET - Call your local BRP dealership

293720064

Unavailable

24

Check Valve

275500398

$8.57

25

HOSE 4.3 MM - Call your local BRP dealership

270000471

Unavailable

26

Oetiker Clamp

293650100

$2.74

27

Hex. Elastic Stop Nut M6

232561600

$0.92

28

INTAKE ADAPTOR, PTO - Call your local BRP dealership

273000163

Unavailable

29

Flat Washer M6, Stainless

234062600

$0.64

30

Hex. Elastic Stop Nut M6

232561600

$0.92

31

SPACER - Call your local BRP dealership

272000074

Unavailable

32

UPPER INSULATOR - Call your local BRP dealership

278001260

Unavailable

33

Hex. Screw M6 X 35

207063560

$1.85

34

INTAKE ADAPTOR, MAG - Call your local BRP dealership

273000164

Unavailable

35

HIGH AIR DUCT, PTO - Call your local BRP dealership

273000151

Unavailable

36

High Air Duct, Mag

273000150

Unavailable

37

PROTECTOR PAD - Call your local BRP dealership

273000165

Unavailable

38

Tie-Rap 180 mm

414115200

$0.09

39

SUPPORT PLATE - Call your local BRP dealership

273000204

Unavailable

40

Cable Grommet

293720052

Unavailable

41

T-Fitting

293710068

$6.59

42

FEMALE ADAPTOR - Call your local BRP dealership

270600024

Unavailable

43

HAIR PIN - Call your local BRP dealership

250400015

Unavailable

44

Throttle Body Ass'y | INCLUDES 51 TO 76

270600052

Unavailable

45

Lower Support (Throttle Body)

270600026

Unavailable

46

Upper Support Ass'y (Throttle Body) | INCLUDES 53 TO 54

270600045

Unavailable

47

Latch Bracket

270600046

Unavailable

48

Socket Head Screw M5 X 10

205051060

$1.49

49

Adjuster Screw

270600047

Unavailable

50

Spring

270600048

Unavailable

51

Throttle Body (PTO) | INCLUDES 58 TO 66

270600053

Unavailable

52

Throttle Lever Ass'y

270600034

Unavailable

53

Potentiometer Screw

270600039

Unavailable

54

Lock Washer Helical M6

234161601

$0.92

55

Hex. Nut M6

232061600

$0.91

56

Spring Guide

270600036

Unavailable

57

Spring

270600037

Unavailable

58

Position Sensor

420866120

$77.97

59

O-Ring

270000544

$4.27

60

Throttle Body (MAG) | INCLUDES 67 TO 75

270600054

Unavailable

61

Pick-Up Lever

270600035

Unavailable

62

Potentiometer Screw

270600039

Unavailable

63

Lock Washer Helical M6

234161601

$0.92

64

Hex. Nut M6

232061600

$0.91

65

Spring

270600038

Unavailable

66

Position Sensor

420866120

$77.97

67

O-Ring

270000544

$4.27

68

Spring Guide

270600036

Unavailable

69

Idle Screw

270600049

Unavailable

70

Cover (Loctite Ultra Grey)

270600050

Unavailable

71

Tie Wrap 142 mm

293750002

$0.88

72

AIR SILENCER ADAPTOR - Call your local BRP dealership

270600023

Unavailable

73

Hex. Screw M4 X 12, Scotch Grip

207341260

Unavailable

74

Flat Washer 4 mm, Stainless

234042600

$0.92

75

INTAKE HOSE - Call your local BRP dealership

270600021

Unavailable

76

Tubing 25 MM 1000MM Long

219704402

$12.69

77

Tie Wrap 142 mm

293750002

$0.88

78

Tridon Gear Clamp

293650172

$2.68

79

Tridon Gear Clamp

293650173

$2.46

80

Lock Washer Helical M6

234161601

$0.92

81

Hex. Elastic Nut M5 | X

232551600

$0.91

82

Flat Washer M5, Stainless

234051600

$0.64
