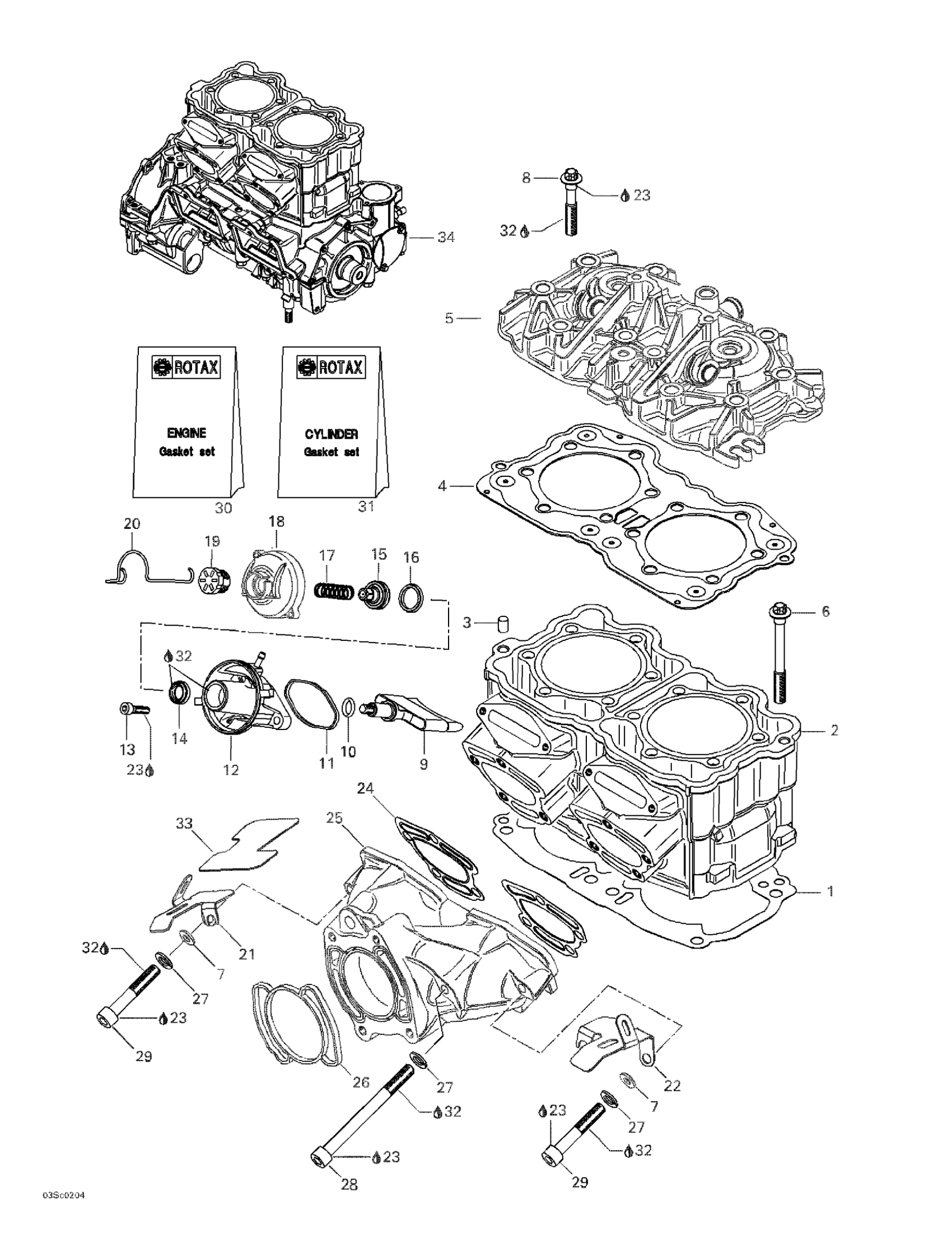

Sea-doo RX DI (LE), 5583/5584/5585, 2002 Cylinder, Exhaust Manifold Diagram

#

Description
Price

1

Gasket Cylinder 0.8 mm

290931907

Unavailable

Gasket Cylinder 0.7 mm

290931908

Unavailable

Gasket Cylinder 0.6 mm

290931906

Unavailable

Gasket Cylinder 0.5 mm

290931905

Unavailable

2

Cylinder with Sleeve (Silver)

290613576

Unavailable

Cylinder with Sleeve (Silver) (5591/5592

290923718

Unavailable

3

Center Pin 8 X 12

420632010

$4.01

4

Cylinder Head Gasket

290931706

Unavailable

Cylinder Head Gasket (5591/5592)

290931705

Unavailable

5

Head Cylinder (Silver)

290613681

Unavailable

Head Cylinder (Silver) (5591/5592)

290923586

Unavailable

6

Torx Screw M10 x 94

290640293

Unavailable

7

Flat Washer 10 mm, Stainless

234000600

$1.46

8

Screw Hex. Flange M10 x 60

290640308

Unavailable

9

Exhaust Valve

290854540

Unavailable

10

O-Ring

290250462

Unavailable

O-Ring

420250460

$2.32

11

Rubber Gasket

290931670

Unavailable

12

Valve Housing

290854555

Unavailable

13

Socket Head Screw M6 X 25

205062560

$1.69

14

Sealing Ring

290931970

Unavailable

15

Exhaust Valve Piston

290854560

Unavailable

16

Grooved Ring

290931950

Unavailable

17

Compression Spring

290939130

Unavailable

18

Valve Cover This part replaces 420911558.

420911559

$29.49

Valve Cover This part replaces 420911558.

420911559

$29.49

19

Screw Adjustment

290241222

Unavailable

20

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

21

DUCT SUPPORT, MAG - Call your local BRP dealership

273000170

Unavailable

22

Duct Support, PTO

273000169

Unavailable

23

Loctite 243, 10 ml

293800060

$21.49

24

Gasket

290931653

Unavailable

25

Exhaust Manifold

420979607

$399.99

26

Exhaust Gasket

290931990

Unavailable

27

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

28

Socket Head Screw M10 x 110

290941483

Unavailable

29

SOCKET HEAD SCREW M10 X 60 - Call your local BRP dealership

205006060

Unavailable

30

ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership

290888134

Unavailable

31

Cylinder Gasket Set (Not Shown)

290888139

Unavailable

32

Dow Corning 111, 150 g

413707000

$59.99

33

PROTECTOR PAD - Call your local BRP dealership

273000165

Unavailable

34

Short Block Ass'y (947 DI)

290094706

Unavailable
