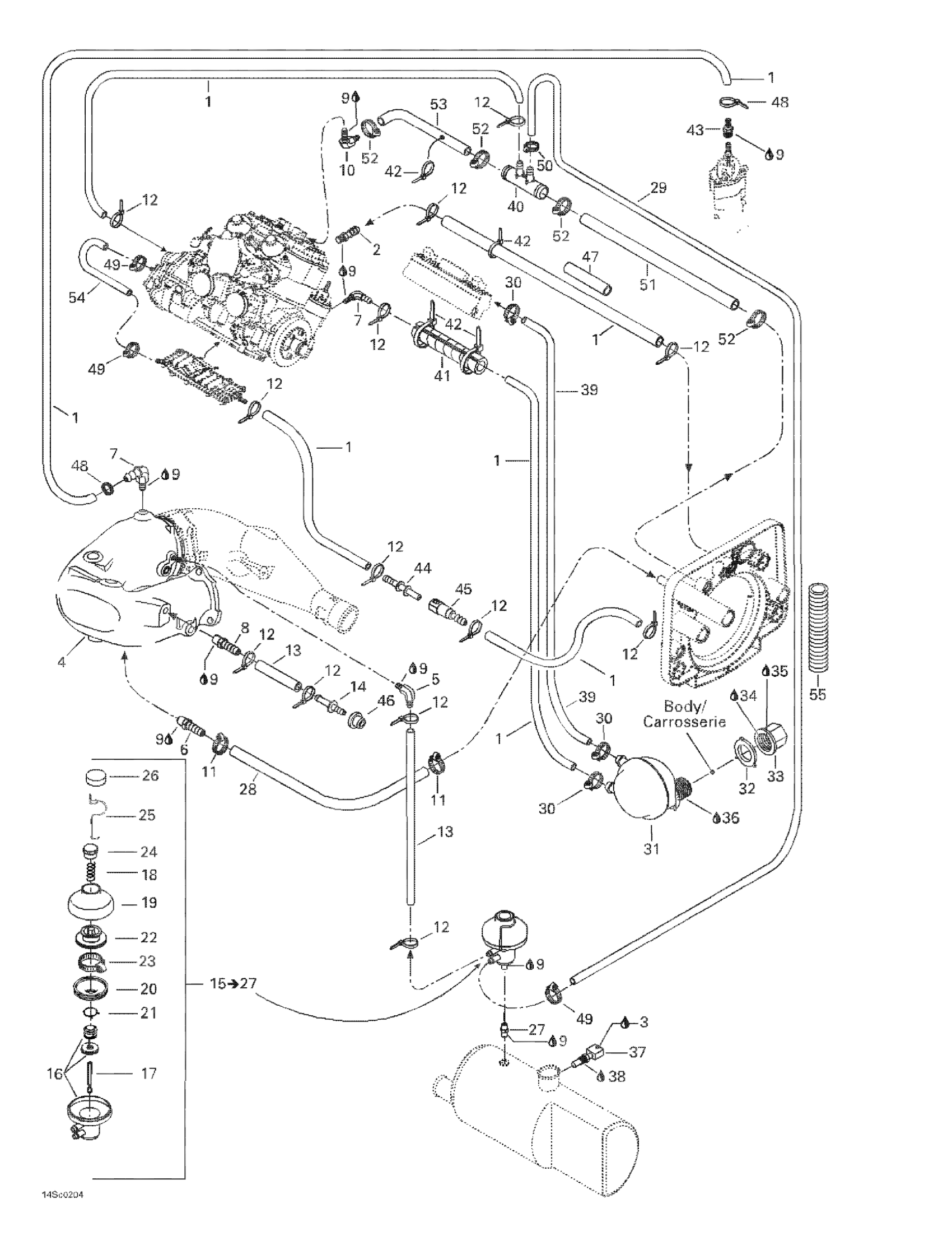

Sea-doo RX DI (LE), 5583/5584/5585, 2002 Cooling System Diagram

#

Description
Price

1

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

2

MALE CONNECTOR - Call your local BRP dealership

293710066

Unavailable

3

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

4

Head Pipe | INCLUDES 1 TO 5

274000927

Unavailable

5

Elbow Fitting 90°

293710048

Unavailable

6

Male Connector | With Catalyst

293710021

$14.23

7

Elbow Fitting

293700016

Unavailable

8

Male Connector

293710037

$10.49

9

Was 293800013 Loctite 56765

219704454

$65.99

10

Elbow Fitting 90° | Without Catalyst

293700023

$20.99

11

Tridon Gear Clamp

293650172

$3.09

12

Tie Wrap 94 mm | 4X4

293750001

$1.03

13

Hose 6 Mm 15000Mm Long

219704360

$132.49

14

Straight Fitting

293710039

$7.59

15

PRESSURE REGULATEUR - Call your local BRP dealership | Includes 23 to 34

274000898

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

FEEDING ROD - Call your local BRP dealership

274000423

Unavailable

18

SPRING 44 MM - Call your local BRP dealership

274000382

Unavailable

19

Valve Cover

420911552

$38.99

20

Bellow

420260721

$51.99

21

SPRING CLAMP - Call your local BRP dealership

420838190

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Rivalair Clamp

293650065

Unavailable

24

Adjuster Screw

420241221

$14.22

25

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

26

Cover Screw

274000903

Unavailable

27

MALE CONNECTOR - Call your local BRP dealership

293700033

Unavailable

28

HOSE-12.5MM. - Call your local BRP dealership

276000001

Unavailable

29

HOSE 5/16 - Call your local BRP dealership

275500548

Unavailable

30

Tridon Gear Clamp

293650170

$1.99

31

Noise Reducer

270000482

Unavailable

32

SEAL WASHER - Call your local BRP dealership

293830027

Unavailable

33

SPECIAL NUT M27 - Call your local BRP dealership

211100020

Unavailable

34

Was 293800041 Loctite Primer 7649

219704458

$39.99

35

Loctite 243, 10 ml

293800060

$21.49

36

Silicone Sealant 51388, 300 ml

296000309

$36.99

37

Temperature Sensor

278002895

$39.99

38

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

39

BOYAU 8MM. *HOSE-8MM. - Call your local BRP dealership

276000084

Unavailable

40

Double Fitting

293710094

Unavailable

41

Tubing 10 MM 1000MM Long

219704407

$2.79

42

Tie Wrap 142 mm

293750002

$1.25

43

STRAIGHT FITTING - Call your local BRP dealership | Grand Touring 500.

293710082

Unavailable

44

Quick Male Fitting

275500435

Unavailable

45

QUICK FEMALE FITTING - Call your local BRP dealership

275500436

Unavailable

46

Grommet

293720029

$1.59

47

Pvc Vinyl Tubing

293100011

Unavailable

48

Oetiker Clamp

293650042

$3.09

49

Tridon Gear Clamp

293650171

$3.09

50

Crimp Clamp, 15.3-706R

293650047

$3.29

51

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

52

Tridon Gear Clamp

293650051

$4.19

53

FORMED HOSE - Call your local BRP dealership

276000098

Unavailable

54

Hose

275500567

Unavailable

55

Tubing 16 Mm 1000Mm Long

219704408

$7.49
