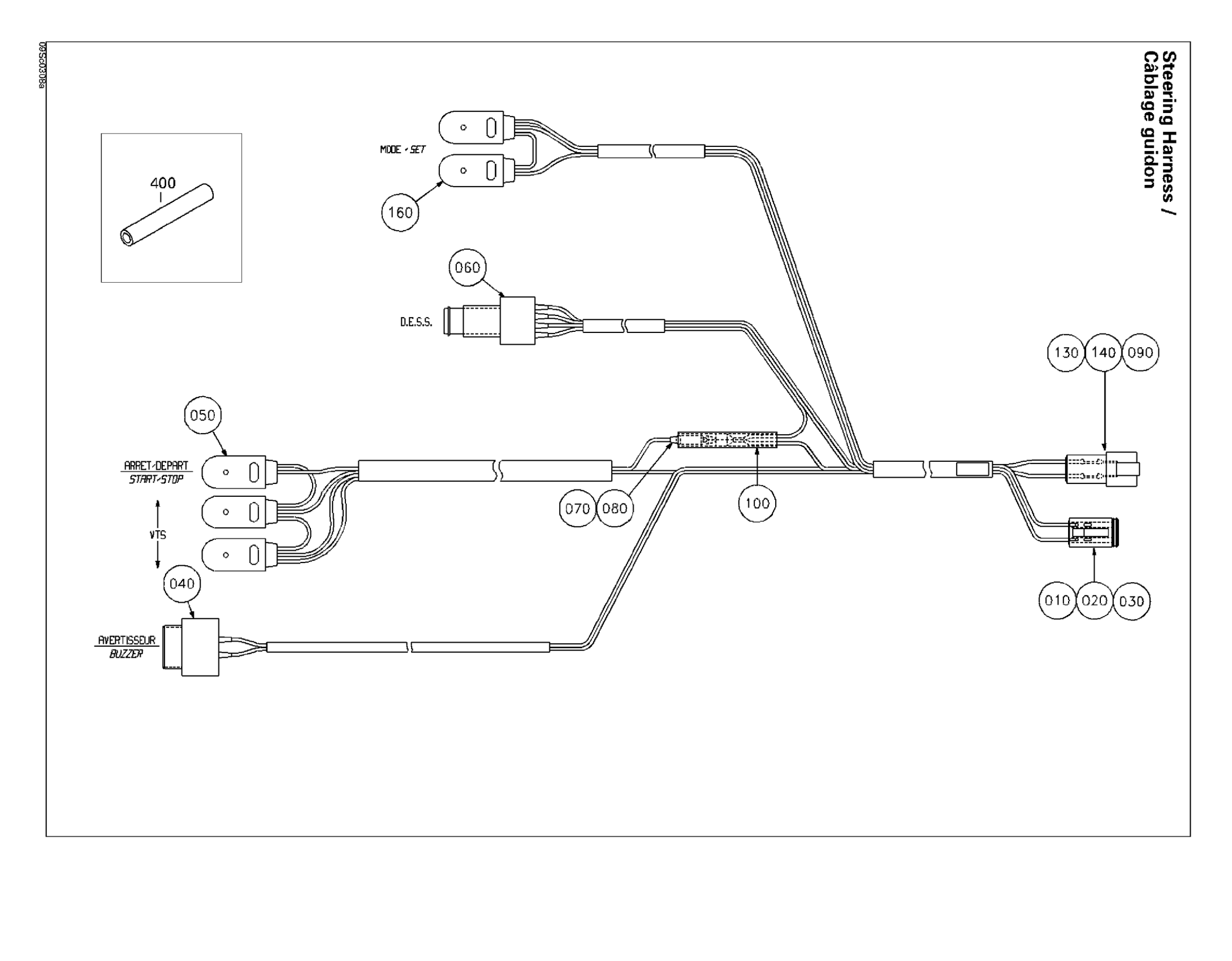

Sea-doo RX DI, 6122/6123, 2003 Steering Harness Diagram

#

Description
Price

10

Steering Harness | Includes 10 to 410

278001827

Unavailable

10

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.97

20

Female Terminal

278000632

$1.69

30

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

40

BUZZER - Call your local BRP dealership

278001586

Unavailable

50

SWITCH ASSY - Call your local BRP dealership

278001821

Unavailable

60

SAFETY SWITCH - Call your local BRP dealership

278001790

Unavailable

70

Male Terminal

278000230

$3.48

80

Insulated Sheath

278001008

$3.20

90

Male Terminal

278000631

$4.12

100

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

130

Male Terminal Housing, 6 Circuits

710001539

$15.57

140

Female Lock, 6 Circuits

278000735

$3.02

160

Switch, Mode/Set

278001836

Unavailable

400

Housing 9 mm, Meter

293100012

Unavailable

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

Pvc Vinyl Tubing

293100011

Unavailable

Heat Shrink Tubing 25 mm

512059668

Unavailable
