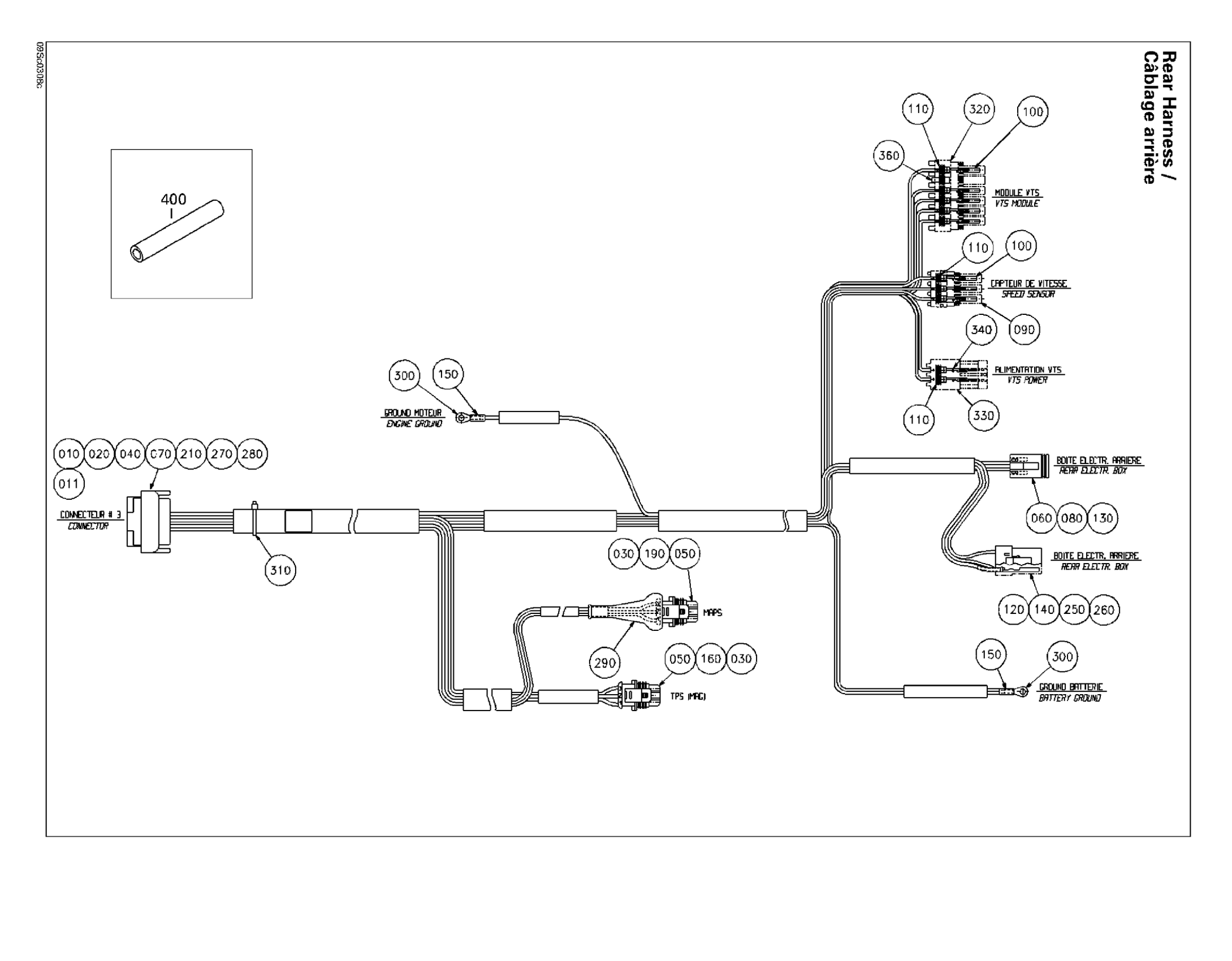

Sea-doo RX DI, 6122/6123, 2003 Rear Harness Diagram

#

Description
Price

1

Rear Harness | Includes 1 - 400.

278001828

Unavailable

10

MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership

278001063

Unavailable

11

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

20

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

30

Wire Seal

278000999

$3.19

40

FEMALE TERMINAL - Call your local BRP dealership

409011700

Unavailable

50

Male Housing, 3 Circuits

278000997

$19.49

60

Female Terminal

278000632

$2.09

70

Seal

278001223

Unavailable

80

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

90

Male Housing, 3 Circuits

278000273

$9.59

100

Female Terminal

278000223

$3.19

110

Wire Seal

278000218

$4.39

120

Female Terminal Housing, 4 Circuits

278001473

$26.99

130

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

140

FEMALE TERMINAL - Call your local BRP dealership

515175260

Unavailable

160

Female Terminal

278000998

$4.39

190

FEMALE TERMINAL - Call your local BRP dealership

278001210

Unavailable

210

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

250

Female Lock, 4 Circuits

278001474

$3.49

260

Sealing Cap

293000052

$3.19

270

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

280

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

290

Not Available As Spare Part - Friction Washer

Unavailable

300

Open Barrel Terminal

278001392

$4.79

310

Tie Wrap 142 mm

293750002

$1.25

320

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

330

Female Housing, 2 Circuits

278000217

$9.59

340

Male Terminal

409004300

$5.61

360

Wire Seal

278000216

$3.19

400

Housing 9 mm, Meter

293100012

Unavailable

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

Pvc Vinyl Tubing

293100011

Unavailable

Heat Shrink Tubing 25 mm

512059668

Unavailable
