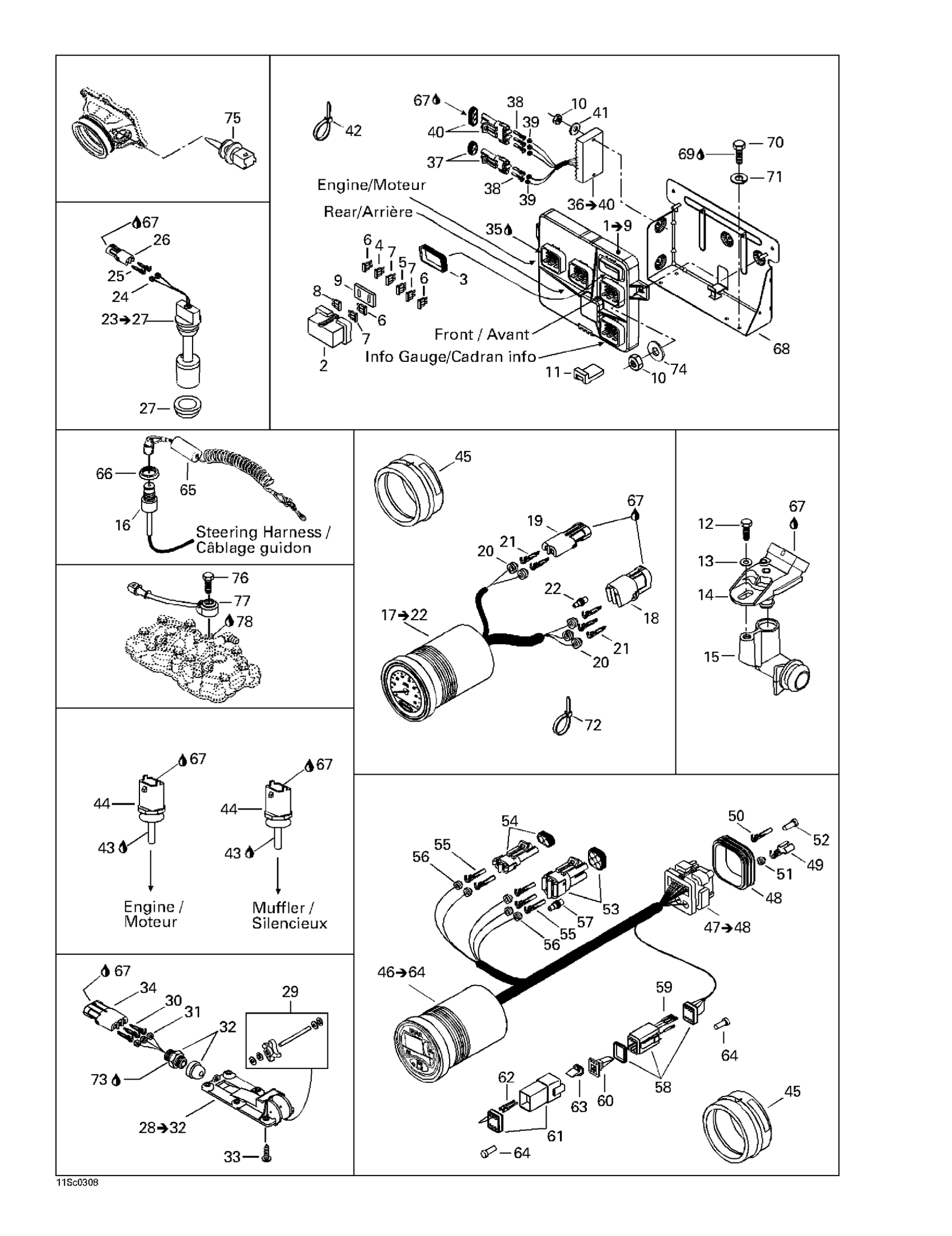

Sea-doo RX DI, 6122/6123, 2003 Electronic Module And Electrical Accessories Diagram

#

Description
Price

1

Electronic Module Ass'y | Includes 1 - 9.

278001813

Unavailable

2

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

3

Cover Seal

278001070

Unavailable

4

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

5

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

6

Fuse, 15 Amperes

278000343

$3.12

7

Fuse, 25 Amperes

278001443

$3.16

8

Fuse, 30 Amperes

410917200

$3.12

9

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

10

Hex. Elastic Stop Nut M6

232561600

$1.06

11

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

12

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

13

Flat Washer | XT

211200035

$0.52

14

Pressure Sensor

270600040

$181.31

15

VALVE ADAPTOR - Call your local BRP dealership

270600019

Unavailable

16

SAFETY SWITCH - Call your local BRP dealership

278001790

Unavailable

17

SPEEDOMETER - Call your local BRP dealership | Includes 34 to 39 / LE

278001822

Unavailable

18

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

19

Female Housing, 2 Circuits

278000217

$8.72

20

Wire Seal

278001065

$5.85

21

Male Terminal | XT Models

278000222

$2.93

22

Wire Seal

278000216

$2.93

23

OIL SENSOR - Call your local BRP dealership | Includes 18 to 22

278001515

Unavailable

24

Wire Seal

278000218

$4.00

25

Male Terminal | XT Models

278000222

$2.93

26

Female Housing, 2 Circuits

278000217

$8.72

27

Grommet

293720008

$12.52

28

Speed Sensor | Includes 26 to 30 / LE

278001595

Unavailable

29

Paddle Wheel Kit

295500108

Unavailable

30

Male Terminal | XT Models

278000222

$2.93

31

Wire Seal

278000218

$4.00

32

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

33

Phillips Screw M5 x 12

250000319

$1.18

34

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.31

35

*(Ormd) *Deoxit Aerosol *

293550034

$38.99

36

Rectifier Ass’Y | Includes 30 - 34.

278001554

$185.04

37

Male Connector, 2 Circuits

278000220

$12.66

38

Female Terminal

409007300

$0.42

39

Wire Seal

278000218

$4.00

40

Male Housing, 3 Circuits

278000273

$8.72

41

Stainless Flat Washer M6

234061600

$0.28

42

Tie Wrap 368 mm

293750008

$0.97

43

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

44

Temperature Sensor

278002895

$36.54

45

Gauge Support

293720047

Unavailable

46

LCD Info Gauge | Includes 46 - 64.

278001825

Unavailable

47

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

48

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

49

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

50

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

51

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

52

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

53

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

54

Male Connector, 2 Circuits

278000220

$12.66

55

Female Terminal

278000223

$2.93

56

Wire Seal

278001065

$5.85

57

Wire Seal

278000216

$2.93

58

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.37

59

Female Terminal

278000632

$1.94

60

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

61

Male Terminal Housing, 6 Circuits

710001539

$17.88

62

Male Terminal

278000631

$4.00

63

Female Lock, 6 Circuits

278000735

$2.93

64

Sealing Cap

293000052

$2.93

65

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

Unavailable

66

Safety Nut (DESS Switch)

278002963

$3.12

67

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

68

Module Support

278001516

Unavailable

69

Loctite 271, 10 ml

293800005

$23.85

70

Hex. Screw 10-14 X 7/8”

211000023

$3.34

71

WASHER-LOCK IMPERIAL - Call your local BRP dealership

211200043

Unavailable

72

Tie-Rap 180 mm

414115200

$0.10

73

Was 293800013 Loctite 56765

219704454

$63.40

74

Flat Washer M6, Stainless

234062600

$0.73

75

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

76

Hex. Screw M8 X 30

207183060

$1.49

77

Noise Sensor

270000484

$75.34

78

Loctite 243, 10 ml

293800060

$21.49
