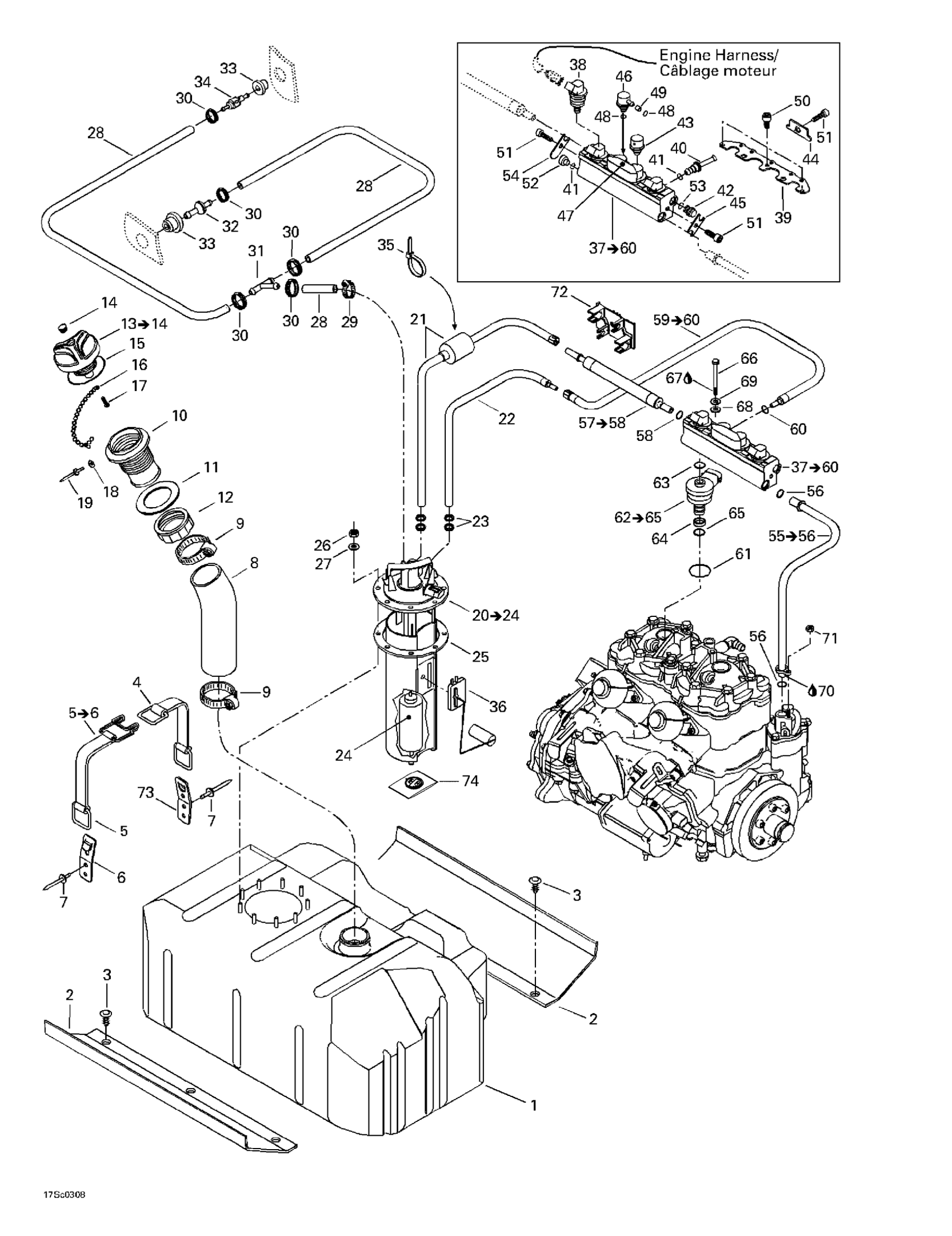

Sea-doo RX DI, 6122/6123, 2003 Fuel System Diagram

#

Description
Price

1

Fuel Tank

275500427

Unavailable

2

Rubber Pad

293830077

Unavailable

3

Black, Dart

293730006

$0.99

4

Fuel Tank Strap

293850036

$18.99

5

FUEL TANK STRAP - Call your local BRP dealership | Includes 10 to 12

293850037

Unavailable

5

Fuel Tank Strap

293850094

$22.49

6

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

7

Avdel Rivet 3/16"

293150037

$0.56

8

Filler Neck Hose

275500434

Unavailable

9

Tridon Clamp

293650023

$13.49

10

Filler Neck, Fuel

275500231

$14.75

11

Gasket

293250029

$14.82

12

Filler Neck Nut, Fuel

211100012

$14.22

13

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$27.49

14

Black, Snap Cap

293000034

$9.39

15

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

16

Fuel Cap Chain

275500974

$19.99

17

Screw K40 X 10

241140060

$1.48

18

Flat Washer M3, Stainless

234032600

$0.55

19

Pop Rivet 1/8"

390407900

$1.49

20

Module Essence *Module-Fuel Ass'Y | Includes 20 - 24. This part replaces 275500540.

275500641

$1.00

21

Fuel Feeding Hose Ass'y

275500559

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Oetiker Clamp

293650140

$2.69

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Gasket

293250088

$14.99

26

Elastic Stop Nut 5 mm

232551200

$1.47

27

Flat Washer 5 mm, Stainless

234052400

$2.85

28

Was 275500549 Hose 1/4"

219704357

$194.99

29

Tridon Gear Clamp

293650170

$1.99

30

Oetiker Gear Clamp

293650025

$3.09

31

Y-Fitting

293710059

$9.69

32

Check Valve

275500398

$10.99

33

Grommet

293720029

$1.59

34

Check Valve

275500505

$31.99

35

Tie Wrap 368 mm

293750008

$1.04

36

Sensor Level

270600012

Unavailable

37

Fuel Distributor | INCLUDES 54 TO 77

275500613

Unavailable

38

Fuel Injector

275500460

$329.99

39

RETAINER PLATE - Call your local BRP dealership

275500543

Unavailable

40

AIR ADAPTER - Call your local BRP dealership

275500538

Unavailable

41

O-RING - Call your local BRP dealership

293300069

Unavailable

42

FUEL PLUG - Call your local BRP dealership

275500595

Unavailable

43

Air Regulator

275500463

Unavailable

44

RETAINER PLATE - Call your local BRP dealership

275500456

Unavailable

45

RETAINER PLATE - Call your local BRP dealership

275500596

Unavailable

46

FUEL REGULATOR - Call your local BRP dealership

275500464

Unavailable

47

Cover

275500449

Unavailable

48

O-Ring

293300072

Unavailable

49

SPACER - Call your local BRP dealership

275500465

Unavailable

50

SOCKET HEAD SCREW M5 X 12 - Call your local BRP dealership

205051260

Unavailable

51

Socket Head Screw M6 X 12

205061260

$1.58

52

AIR PLUG - Call your local BRP dealership

275500597

Unavailable

53

O-Ring

275500598

Unavailable

54

RETAINER PLATE - Call your local BRP dealership

275500455

Unavailable

55

Pressure Hose | INCLUDES 72 TO 73

270600022

Unavailable

56

O-Ring

293300070

Unavailable

57

Hose Ass'y (Fuel Return) | INCLUDES 76 TO 77

275500511

Unavailable

58

O-RING - Call your local BRP dealership

293300069

Unavailable

59

Hose Ass'y (Fuel Supply) | INCLUDES 74 TO 75

275500519

Unavailable

60

O-Ring

293300070

Unavailable

61

O-Ring

293300083

Unavailable

62

Air Injector | Includes 45 to 48

275500633

$329.99

63

O-Ring

293300084

Unavailable

64

INJECTOR RING - Call your local BRP dealership

270600030

Unavailable

65

O-Ring

293300076

Unavailable

66

HEX. SCREW M8 X 70 - Call your local BRP dealership

207087060

Unavailable

67

Loctite 243, 10 ml

293800060

$21.49

68

Stainless, Flat Washer 8 mm

234081600

$0.55

69

Lock Washer 8 mm, Stainless

234181601

$0.55

70

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

71

Hex. Elastic Stop Nut M6

232561600

$1.15

72

Clamp Tie

291001399

Unavailable

73

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

74

Fuel Filter, Bosch

219700368

$39.99
