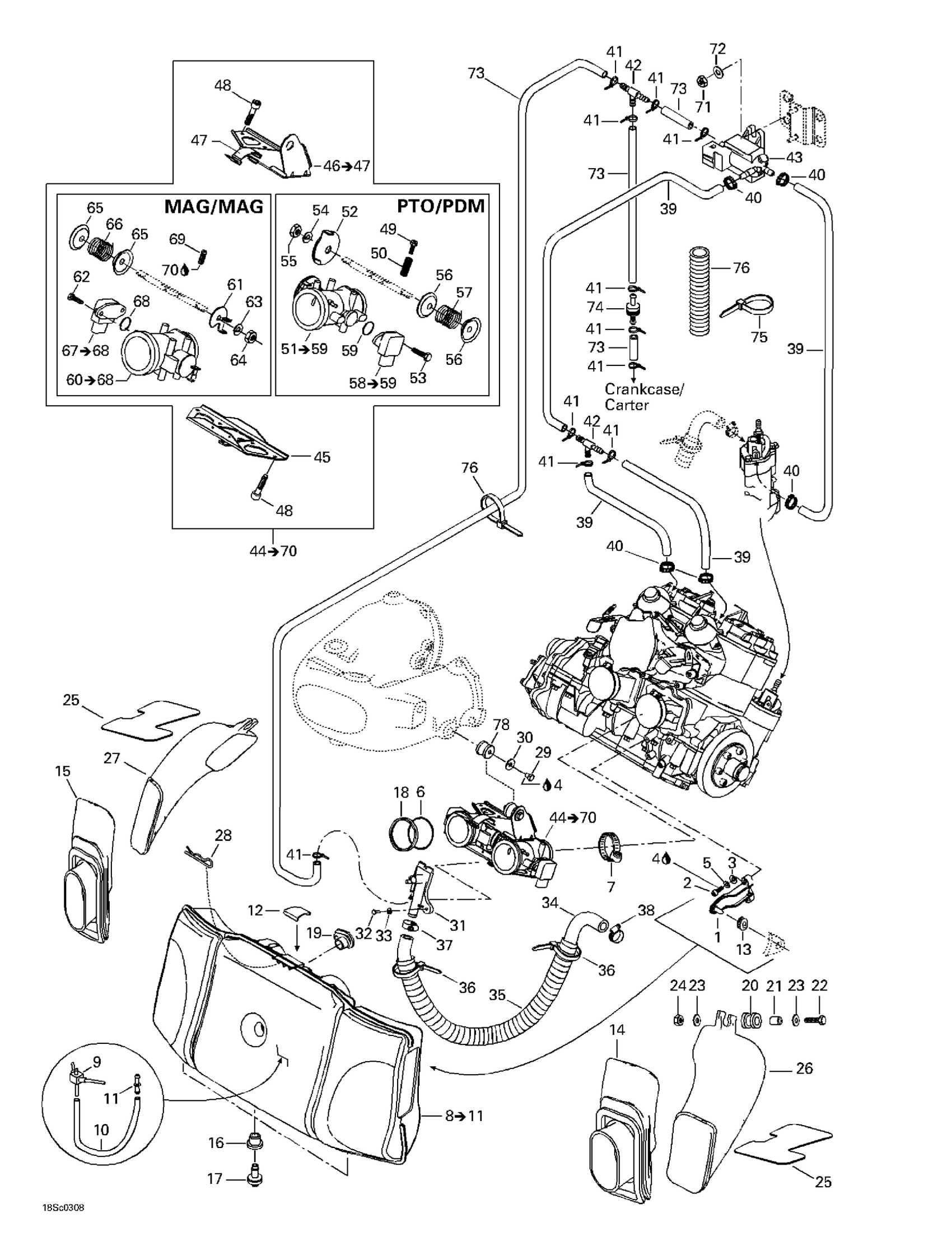

Sea-doo RX DI, 6122/6123, 2003 Air Intake System Diagram

#

Description
Price

1

Silencer Support

273000123

Unavailable

2

Socket Head Screw M6 X 35

205063560

$2.22

3

Stainless Flat Washer M6

234061600

$0.33

4

Loctite 243, 10 ml

293800060

$21.49

5

Lock Washer Helical M6

234161601

$1.15

6

O-Ring

293250065

Unavailable

7

Norma Clamp

293650079

$11.60

8

Air Silencer | Includes 18 to 21

273000209

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

11

CONNECTOR - Call your local BRP dealership

293710107

$1.09

12

SUPPORT PLATE - Call your local BRP dealership

273000204

Unavailable

13

Cable Grommet

293720052

Unavailable

14

INTAKE ADAPTOR, PTO - Call your local BRP dealership

273000163

Unavailable

15

INTAKE ADAPTOR, MAG - Call your local BRP dealership

273000164

Unavailable

16

GROMMET - Call your local BRP dealership

293720064

Unavailable

17

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

18

Gasket

293250122

$67.99

19

FEMALE ADAPTOR - Call your local BRP dealership

270600024

Unavailable

20

UPPER INSULATOR - Call your local BRP dealership

278001260

Unavailable

21

SPACER - Call your local BRP dealership

272000074

Unavailable

22

Hex. Screw M6 X 35

207063560

$2.22

23

Flat Washer M6, Stainless

234062600

$0.77

24

Hex. Elastic Stop Nut M6

232561600

$1.15

25

PROTECTOR PAD - Call your local BRP dealership

273000165

Unavailable

26

HIGH AIR DUCT, PTO - Call your local BRP dealership

273000151

Unavailable

27

High Air Duct, Mag

273000150

Unavailable

28

HAIR PIN - Call your local BRP dealership

250400015

Unavailable

29

HEX. SCREW M8 X 12 - Call your local BRP dealership

207181260

Unavailable

30

Flat Washer 8 mm, Stainless

234082600

$2.43

31

AIR SILENCER ADAPTOR - Call your local BRP dealership

270600023

Unavailable

32

Hex. Screw M4 X 12, Scotch Grip

207341260

Unavailable

33

Flat Washer 4 mm, Stainless

234042600

$1.15

34

INTAKE HOSE - Call your local BRP dealership

270600021

Unavailable

35

Tubing 25 MM 1000MM Long

219704402

$15.99

36

Tie Wrap 142 mm

293750002

$1.25

37

Tridon Gear Clamp

293650172

$3.09

38

Tridon Gear Clamp

293650173

$3.09

39

HOSE 4.3 MM - Call your local BRP dealership

270000471

Unavailable

40

Oetiker Clamp

293650100

$3.38

41

Tie Wrap 94 mm | 4X4

293750001

$1.03

42

T-Fitting

293710068

$8.29

43

SOLENOID VALVE - Call your local BRP dealership

270600044

Unavailable

44

Throttle Body | Includes 1 to 26

270600058

Unavailable

45

LOWER SUPPORT - Call your local BRP dealership

270600069

Unavailable

46

Support Ass'y | Includes 3 to 4

270600070

Unavailable

47

LATCH BRACKET - Call your local BRP dealership

270600073

Unavailable

48

Socket Head Screw M5 X 10

205051060

$1.58

49

ADJUSTER SCREW - Call your local BRP dealership

270600074

Unavailable

50

Spring

270600075

Unavailable

51

PRIMARY THROTTLE BODY - Call your local BRP dealership | Includes 8 to 16

270600076

Unavailable

52

Throttle Lever Ass'y

270600077

Unavailable

53

POTENTIOMETER SCREW M4 - Call your local BRP dealership

270600078

Unavailable

54

Lock Washer Helical M6

234161601

$1.15

55

Hex. Nut M6

232061600

$1.15

56

GUIDE SPRING - Call your local BRP dealership

270600079

Unavailable

57

Spring

270600080

Unavailable

58

Position Sensor

420866120

$98.99

59

O-Ring

270000544

$4.65

60

SECONDARY THROTTLE BODY - Call your local BRP dealership | Includes 17 to 26

270600081

Unavailable

61

Pick-Up Lever

270600082

Unavailable

62

POTENTIOMETER SCREW M4 - Call your local BRP dealership

270600078

Unavailable

63

Lock Washer Helical M6

234161601

$1.15

64

Hex. Nut M6

232061600

$1.15

65

GUIDE SPRING - Call your local BRP dealership

270600079

Unavailable

66

Spring

270600083

Unavailable

67

Position Sensor

420866120

$98.99

68

O-Ring

270000544

$4.65

69

IDLE SCREW - Call your local BRP dealership

270600084

Unavailable

70

Cover, Loctite Ultra Grey

270600085

Unavailable

71

Hex. Elastic Nut M5 | X

232551600

$1.15

72

Flat Washer M5, Stainless

234051600

$0.77

73

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

74

Check Valve

275500398

$10.99

75

Tie Wrap 142 mm

293750002

$1.25

76

Pvc Vinyl Tubing

293100011

Unavailable

77

Tie-Rap 180 mm

414115200

$0.11

78

Rubber Isolator

707000949

$11.49
